| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DAF-100 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Brand Name: | Dagyee | Product Name: | Dissolved Air Flotation |
|---|---|---|---|
| Material: | Steel Bracket | Power Consumption: | 12.9KW |
| Pretreatment: | Stainless Steel 304 Or FRP Tank | Desalination Rate: | 99% |
| DAF Flow Rate: | 100m3/hr | Application: | Drinking Water |

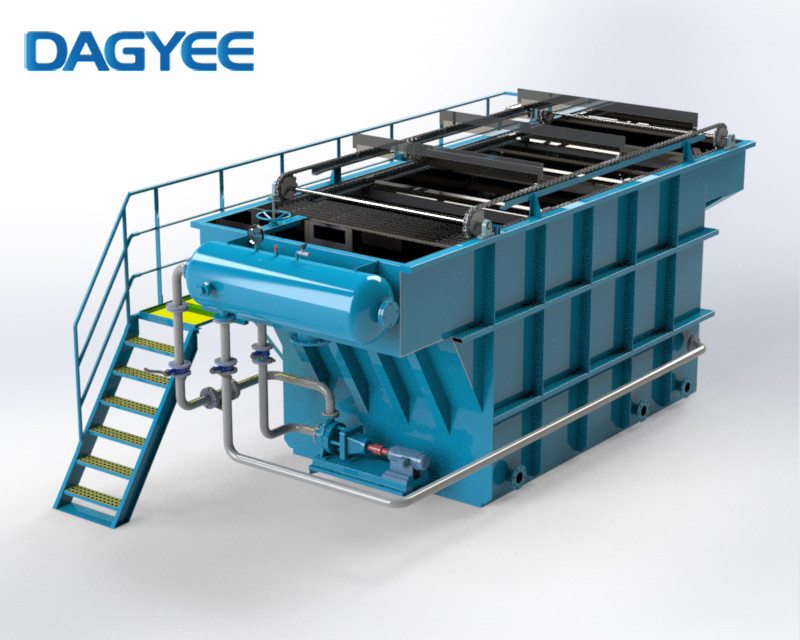

Dagyee DAF-100 Edi Meat Processing Slaughterhouse Daf Dissolved Air Flotation Units WWTP
Dissolved air flotation is one of the most effective methods whose specific gravity is close to 1.0 from water.
Dissolved Air Flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid , oil and grease etc. Benenv dissolved air flotation is an innovation combined with traditional dissolved air flotation concept and modern technology.
100m3/hr Dissolved Air Flotation Specification
|
Parameter |
Units |
DAF 100 |
|
DAF Flow Rate |
m3/hr |
100 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
12.9 |
|
Footprint |
m |
12.1*4.2 |
|
Inlet |
in |
12 |
|
outlet |
in |
10 |
|
Sludge outlet |
in |
6 |
|
Vent |
in |
4 |
|
STANDARD INCLUSIONS + OPTIONS |
||
|
Skimmer Mounted Plant |
✓ |
|
|
Feed Pump |
✓ |
|
|
Micro bubble generator |
✓ |
|
|
Recycle clean water system |
✓ |
|
|
Maintenance platform, ladder |
✓ |
|
|
Pre-Treatment |
o |
|
|
Control System |
✓ |
|
|
Control System with PLC |
o |
|
|
Air Compressor |
✓ |
|
|
Treated Water Recycling for Saturator |
o |
|
|
Coagulation, flocculation reaction device |
o |
|
|
Chemical powder dissolving dosing device |
o |
|
Features Of Dissolved Air Flotation
Total suspended solids (TSS) reduction up to 97%
Chemical oxygen demand (COD) removal up to 85%
Low-cost operation and maintenance
Standard and customized units meet a variety of application and flow ranges
Designed for ease of installation and use
Suitable for high-salinity water
Application Of Dissolved Air Flotation
Papermaking wastewater treatment and fiber recycling
Printing and dyeing wastewater treatment
Electroplating
Heavy metal ions wastewater treatment
Oily wastewater treatment, tan wastewater treatment
Chemical wastewater treatment
Paint wastewater treatment
Food waste water treatment,
Biological treatment of mud and water separation
Low turbidity water treatment
Algae surface water treatment
