| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DYG-10-40'' |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET |
| Condition: | New | Product Name: | Cartridge Water Filter Housing |
|---|---|---|---|
| Material: | SUS304, SUS316 | Connection Type: | BSP Female |
| Dimensions: | 300*1450 | Surface Treatment: | Mirror Reflection |
| Length: | 40'' | Applicable Field: | Petroleum |

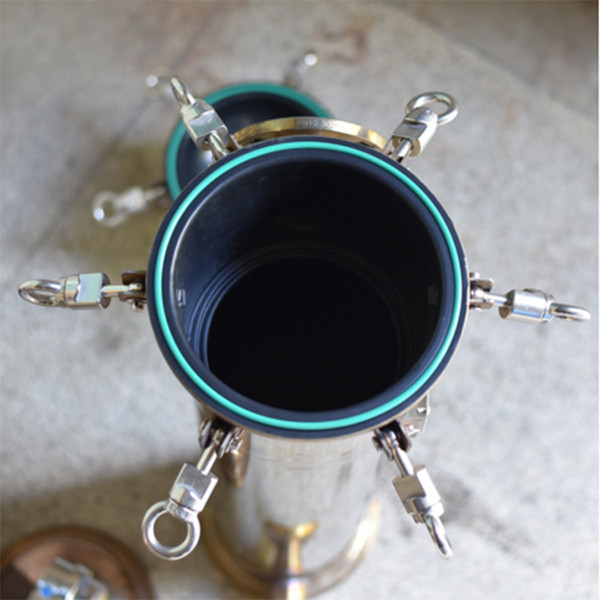

Dagyee DYG-10-40'' Sus304 316 Multi 20 Cartridge Filter Housings Microporous Film Barrel
DAGYEE Cartridge Housing
Cartridge filter, also known as security filter. The shell is made of high quality stainless steel, filter using molded filter, The liquid went through filter under pressure, residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment and suspended solids, bacteria. Molded filters are: cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter and multi-function filter. Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-120um.For the same form of filter,it is divided into different models by their dimensions.
Multi 10 Cartridge Filter Housings Specification
| Model | DYG-10-40‘’ |
|
Material |
SUS304 SUS316 |
|
Applicable Filter Cartridges |
Industrial PP;String Wound;304;316 |
|
Filtration accuracy |
0.1-200UM |
|
Connection Type |
With a clamp /BSP female |
|
Surface treatment |
Mirror reflection |
|
Housing Dimensions (mm) |
Ø300*1450 |
|
Max. Flow Rate (m3 /h) |
10 |
|
Max. Operating Conditions (bar/°C) |
10/150 |
|
Inlet/Outlet (flange) |
1 1/2'' |
|
Length of Filter Cartridge |
40'' |
|
No. of Filter Cartridges |
10 |
|
Max. Cartridge Outside Diameter(mm) |
Ø60 |
DAGYEE Cartridge Housing Feature
Adopt to mechanical polishing,material liquid touch area Ra<0.4um,absolute health level of polishing , can select all series electrolytic polishing.
It can increase the vent hole and dreain hole diameter Effectively , and can connect 8mm pipe.
Drain valve independent from the exhaust valve thread joint sets and pagoda,operating is more convenient.
Adopt to hing segmented clamp ,20% higher than an ordinary card hoop pressure,maximum pressure up to 1.0Mpa.
Supporting feet adopt to strengthening threaded,not easy sliding teeth;Install a adjustable nut at the bottom of the leg , filter's height can be adjustment .
DAGYEE Cartridge Housing Application
Application of sanitary filter housing
Food industry:fine filter of space water, mineral water,beverages, liquor clarification and filtration process
Pharmaceutical industry: sterile water, oral, infusion and injection water treatment
Chemical industry: organic solvents, esters, alcohols, acids, alkalis and other chemicals, oils purification
Oil industry: oil field water injection preparation and so on
Environmental protection, electroplating wastewater, printing waste, pharmaceutical waste and other industrial wastewater treatment
Seawater, brackish water desalination water treatment, hotels, apartments water treatment
Precision filter is often used as security filter for electrodialysis, ion exchange, security filters reverse osmosis devices
