| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | Bag fliter housing |
| Minimum Order Quantity: | 1SET |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 SETS |
| Condition: | New | Material: | SUS304 SUS316 |
|---|---|---|---|
| Filtration Accuracy: | 89mm*630mm | Length: | 180*400 |
| Flow Rate: | 5m3 /h | Color: | Customizable |
| Warranty: | 2 Year | Application: | Filtration |
Sanitary Stainless Steel 304 316L SS Trolley Bag Fliter Housing
DAGYEE Trolley Bag Fliter Housing
This filter can be applied for most particles so it is broadly for precision filter and sterilization.
the filter cylinder is 1core,3core,5core,7core,9core,11core,13core,15core
the length of folding filter core is 10,20,30,40
the material of the filter core is PTF,Pplysulfone,nylon,pp,acetyl cellulose
the diameter of the filter hole is 0.1μm,0.22μm,0.45μm,1μm,3μm,5μm,10μm,30μm,60μm,and it is selective as hydrophilic (suitable for gas) and hydrophilic (suitable for liquid) according to your requirement.

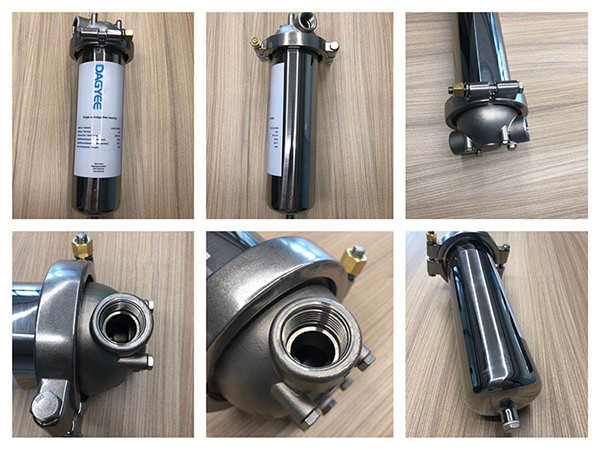

Stainless Steel Single Bag Filter Housings
|
Model |
DYG-1-1S |
|
Material |
SUS304 SUS316 |
|
Filtration accuracy |
0.1-200UM |
|
Connection Type |
Flange /BSP female |
|
Surface treatment |
Mirror reflection |
|
Housing Dimensions (mm) |
Ø219*1040 |
|
Max. Flow Rate (m3 /h) |
18 |
|
Max. Operating Conditions (bar/°C) |
12/150 |
|
Inlet/Outlet (flange) |
1 1/2'' flange |
|
Length of Filter bag (mm) |
410 |
|
No. of Filter bag |
1 |
|
Max. bag Outside Diameter(mm) |
Ø180 |
Adopt to mechanical polishing,material liquid touch area Ra<0.4um,absolute health level of polishing , can select all series electrolytic polishing.
It can increase the vent hole and dreain hole diameter Effectively , and can connect 8mm pipe.
Drain valve independent from the exhaust valve thread joint sets and pagoda,operating is more convenient.
Adopt to hing segmented clamp ,20% higher than an ordinary card hoop pressure,maximum pressure up to 1.0Mpa.
Supporting feet adopt to strengthening threaded,not easy sliding teeth;Install a adjustable nut at the bottom of the leg , filter's height can be adjustment .
Application Of Sanitary Filter Housing
Widely used in UF, RO, EDI security filtration and the end-filtration.
Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
Electonics, semiconductor industry with high purity water preliminary filter, teminal filter.
Oil field, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
Drinking pure water, mineral water, fruit juice, tea, beverages, health drinks.
Liquid, wine, beer, yellow wine and ther friut wine filtration, pure draft beer aseptic filtration.
The life and procution waste water treatment and water recycling process of pre-treatment filtering or security filtering.
Biological engineering, oil refining, printing and dyeing, testile industry water supply and waste water treatment, research and test filter, etc.
DAGYEE Cartridge Housing Removal
Suspended matter
Algae
Impurities
Fine particles
Dagyee Main Water Filter Housings Products:
Single bag filter housings
Multi bags filter housings
Can be customized according to your requirements.
Choice of End Caps/Adapters:
Contact us
