| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DAF-005 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Condition: | New | Name: | Water Treatment Plant |
|---|---|---|---|
| Material: | Q235B 304 316 | Weight: | 1600 |
| Desalination Raterate: | 99% | Footprint: | 4*2.4 |
| Type: | Salt Water Treatment Machine | After-sales Service Provided: | Video Technical Support |

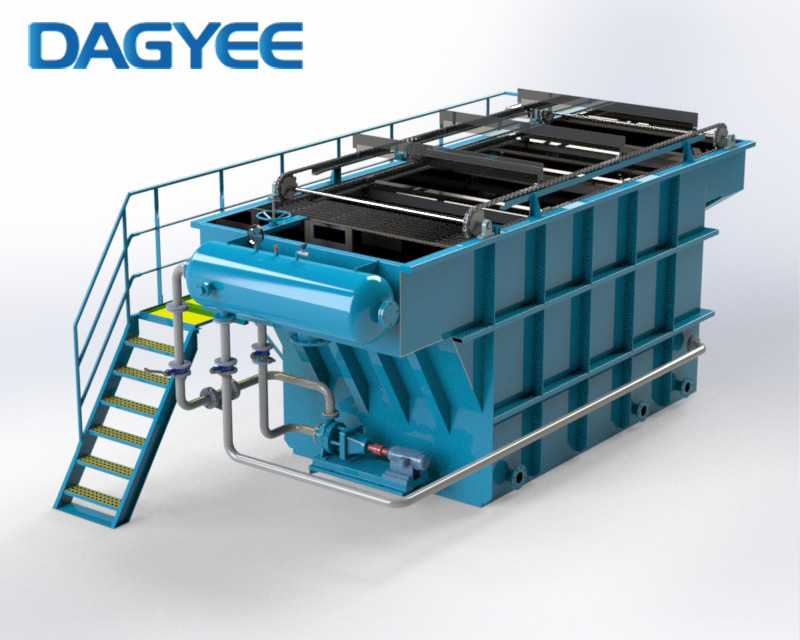

Dagyee DAF-005 Edi Daf Dissolved Air Flotation Stainless New Tech Daf Wastewater
The air will be send by air compressor into air tank, then take in air dissolved tank by jet flow device, the air will be force to dissolve into water under 0.35Mpa pressure and forming dissolved air water, then send to air flotation tank. Under the circumstance of sudden release, the air dissolved in water will be dissolve out and form vast microbubble group, which will be fully contact the flocculating suspended matter in sewage, the suspended matter was sent by pump and flocculation after adding medicine, the ascending microbubble group will adsorb in the flocculated suspended matter, made its density reduce and floated to water surface, thus reach the purpose of removing SS and CODcr etc.
5m3/hr Dissolved Air Flotation Specification
| Parameter | Units | DAF 005 |
|
DAF Flow Rate |
m3/hr |
5 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
1.85 |
|
Footprint |
m |
4*2.4 |
|
Inlet |
in |
3 |
|
outlet |
in |
3 |
|
Sludge outlet |
in |
4 |
|
Vent |
in |
3 |
| STANDARD INCLUSIONS + OPTIONS ✓= Standard Supply, o = Optional Supply |
||
|
Skimmer Mounted Plant |
✓ |
|
|
Feed Pump |
✓ |
|
|
Micro bubble generator |
✓ |
|
|
Recycle clean water system |
✓ |
|
|
Maintenance platform, ladder |
✓ |
|
|
Pre-Treatment |
o |
|
|
Control System |
✓ |
|
|
Control System with PLC |
o |
|
|
Air Compressor |
✓ |
|
|
Treated Water Recycling for Saturator |
o |
|
|
Coagulation, flocculation reaction device |
o |
|
|
Chemical powder dissolving dosing device |
o |
|
Main Process Characteristics
Total suspended solids (TSS) reduction up to 97%
Chemical oxygen demand (COD) removal up to 85%
Low-cost operation and maintenance
Standard and customized units meet a variety of application and flow ranges
Designed for ease of installation and use
Suitable for high-salinity water
Application Of Dissolved Air Flotation
Meat, poultry, and fish processing
Dairy industry
Petrochemicals
Pulp and paper
Food and beverage
FAQ Of Dissolved Air Flotation
How to buy your idea products?
A:You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
How to keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.
