| Place of Origin: | WUXI,CHINA |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | CE |
| Model Number: | 220-80-220-16mm OEM |
| Minimum Order Quantity: | 1 METER |
| Price: | Negotiate with buyers |
| Packaging Details: | Export wooden box ,According to buyer needs |
| Delivery Time: | 3 weeks |
| Payment Terms: | L/C, T/T, |
| Supply Ability: | 2000 M per month |
| Features: | Suitable For Shaftless Conveying | Material: | Q345,SS304 |
|---|---|---|---|
| Products Name: | Shaftless Flight | Thickness: | 20mm |

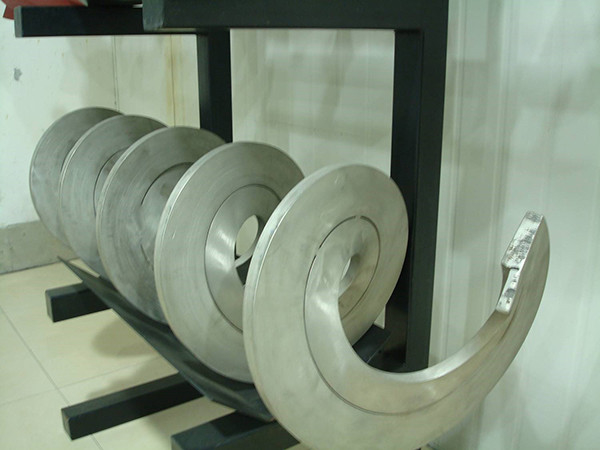

ISO Certification Q345 304 Helical Blade Shaftless Flight Heavy Gauge Helicoid Flight
We produce shaftless flight from a single rod or an inner and outer flight structure composed of multiple stacked rods. The scraper is made of two, three or more individual rods or a combination of spiral and segmented scrapers. This adds cross-section, strength and stiffness to the flight. Multiple rods can have different thicknesses and heights, and can even have different materials, such as carbon steel internal threads and wear-resistant external threads, thereby saving costs.
DAGYEE Screw Flight Keywords
 |
|
Screw Flight Specifications
Remarks
|
Material |
low-carbon steel, manganese steel, stainless steel |
|
Processing Craft |
Continued cold rolling, Continued twisting, Stamping and estending |
|
Inner Dia. |
≥8MM |
|
Outer Dia. |
≤900MM |
|
Thickness |
16MM~40M |
|
Colour |
Red, Green, Black, Self-colour or as requested |
|
Date of delivery |
0~50 meters with in a week. |
Process Flow
Core Superiority
|
2M Length wthout welded joint |
Thickness>10mm |
Suitable shaftlessconveying |
High strength and durability |
|
Standard Plate 6M |
With thickness> 10 mm |
It can be used for continuous and stable |
Few solder joints, firm and reliable |
|
Forming about 2m |
Formed at one time in general market |
Transmission of shaftless screw |
Shaftless Flight Application
Shaftless spirals
Multiple flights
Shafted spirals
Sectionals and auger flighting
Conveyor wear liners
How To Procedure To Order Shaftless Flight
Right hand / Left hand
Push or pull
The outside diameter (OD)
The thickness of the flight
The inside diameter (ID) or shaft OD
Pitch
Material
Length
Quantity
Special requirements
