| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DYG-1X |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SET |
| Condition: | New | Material: | Carton Or OEM |
|---|---|---|---|
| Connection Type: | With A Clamp /BSP Female | Filtration Accuracy: | 0.1-200UM |
| Color: | Customizable | Application: | Filtration |
| Warranty: | 1 Year | Keywords: | Water Filtration |
DYG-1X SS 304/316L Single Filter Cartridge Housings For Wine Oil Water Treatment Unit 10 20 30 40
DAGYEE Cartridge Housing
Stainless Steel Filter Housing made of SUS316L or SUS304, and take filter cartridge as its element. The stainless steel filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance. In addition, it is easy to wash and function as back flush, and is ideal filtration equipment for the industry of biology and pharmacy, beer and beverage, textile, power plant, chemical, and water treatment etc.
Single Filter Cartridges Housings Specification
| Model | DYG-1X |
|
Material |
SUS304 SUS316 |
|
Applicable Filter Cartridges |
Industrial PP;String Wound;304;316 |
|
Filtration accuracy |
0.1-200UM |
|
Connection Type |
With a clamp /BSP female |
|
Surface treatment |
mirror reflection |
| Model |
Max. Flow Rate (m3 /h) |
Max. Operating Conditions (bar/°C) |
Filter specifications |
Inlet/ Outlet |
Height mm |
Max. Cartridge Outside Diameter |
|
DYG-1-10'' |
0.5 M3/H |
6/120 |
Ø65*250 |
1/2'' |
380 |
Ø89 |
|
DYG-1-20'' |
1 M3/H |
6/120 |
Ø65*500 |
3/4'' |
630 |
Ø89 |
|
DYG-1-30'' |
1.5 M3/H |
6/120 |
Ø65*750 |
1'' |
880 |
Ø89 |
|
DYG-1-40'' |
2 M3/H |
6/120 |
Ø65*1000 |
1'' |
1130 |
Ø89 |
Single Filter Cartridges 10 Inch Housings Specification
|
Model |
DYG-1-10'' |
|
Material |
SUS304 SUS316 |
|
Applicable Filter Cartridges |
Industrial PP;String Wound;304;316 |
|
Filtration accuracy |
0.1-200UM |
|
Connection Type |
With a clamp /BSP female |
|
Surface treatment |
Mirror reflection |
|
Housing Dimensions (mm) |
Ø89mm*380mm |
|
Max. Flow Rate (m3 /h) |
0.5 |
|
Max. Operating Conditions (bar/°C) |
6/120 |
|
Inlet/Outlet (BSP female) |
1/2'' |
|
Length of Filter Cartridge |
10'' |
|
No. of Filter Cartridges |
1 |
|
Max. Cartridge Outside Diameter |
Ø65 |
Single Filter Cartridges 20 Inch Housings Specification
| Model | DYG-1-20'' |
|
Material |
SUS304 SUS316 |
|
Applicable Filter Cartridges |
Industrial PP;String Wound;304;316 |
|
Filtration accuracy |
0.1-200UM |
|
Connection Type |
With a clamp /BSP female |
|
Surface treatment |
Mirror reflection |
|
Housing Dimensions (mm) |
Ø89*630 |
|
Max. Flow Rate (m3 /h) |
1 |
|
Max. Operating Conditions (bar/°C) |
6/120 |
|
Inlet/Outlet (BSP female) |
1/2'' |
|
Length of Filter Cartridge |
20'' |
|
No. of Filter Cartridges |
1 |
|
Max. Cartridge Outside Diameter |
Ø65 |
Single Filter Cartridges 30 Inch Housings Specification
| Model | DYG-1-30'' |
|
Material |
SUS304 SUS316 |
|
Applicable Filter Cartridges |
Industrial PP;String Wound;304;316 |
|
Filtration accuracy |
0.1-200UM |
|
Connection Type |
With a clamp /BSP female |
|
Surface treatment |
Mirror reflection |
|
Housing Dimensions (mm) |
Ø89*880 |
|
Max. Flow Rate (m3 /h) |
1.5 |
|
Max. Operating Conditions (bar/°C) |
6/120 |
|
Inlet/Outlet (BSP female) |
1/2'' |
|
Length of Filter Cartridge |
30'' |
|
No. of Filter Cartridges |
1 |
|
Max. Cartridge Outside Diameter |
Ø65 |
Single Filter Cartridges 40 Inch Housings Specification
| Model | DYG-1-40'' |
|
Material |
SUS304, SUS316 |
|
Applicable Filter Cartridges |
Industrial PP;String Wound;304;316 |
|
Filtration accuracy |
0.1-200UM |
|
Connection Type |
With a clamp /BSP female |
|
Surface treatment |
Mirror reflection |
|
Housing Dimensions (mm) |
Ø89*1130 |
|
Max. Flow Rate (m3 /h) |
2 |
|
Max. Operating Conditions (bar/°C) |
6/120 |
|
Inlet/Outlet (BSP female) |
1/2'' |
|
Length of Filter Cartridge |
40'' |
|
No. of Filter Cartridges |
1 |
|
Max. Cartridge Outside Diameter |
Ø89mm |
DAGYEE Cartridge Housing Feature
Filter length is available from 10" to 40"
Filter housing material is available of stainless steel 304 and stainless steel 316L
Surface finish is food grade mechanical polished or industrial sand blasting
The steam gas filter is available of single round or muliti round filter housing according to the different flow rate request ,such is 1round ,3 round ,5 round ,7round ,9round or 12round
Operate pressure can reach 150psi or more

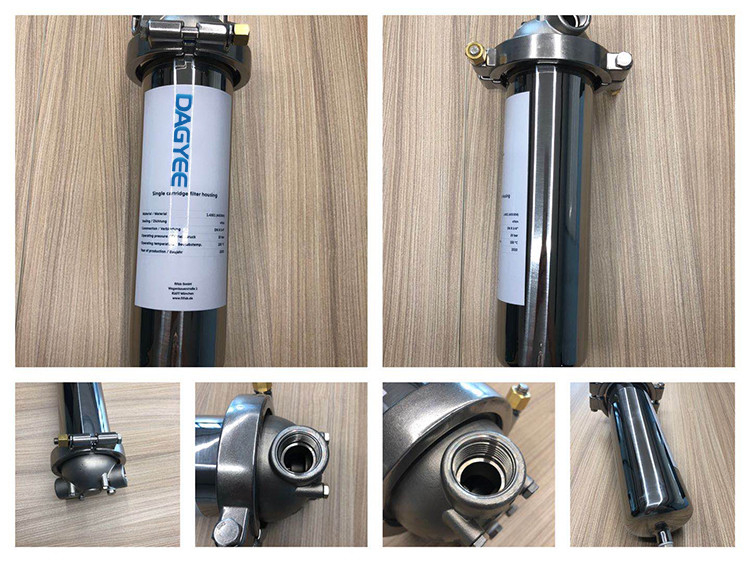

DAGYEE Cartridge Housing Shell Details
