| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | IRD6-1200 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type:: | New Product 2020 |
|---|---|---|---|
| Material: | Standard Wooden Box | Weight: | 820 Kg |
| Size: | 2000*1350*1700 | Power: | 0.55 |
| Core Components: | Motor | Warranty: | 1 Year |

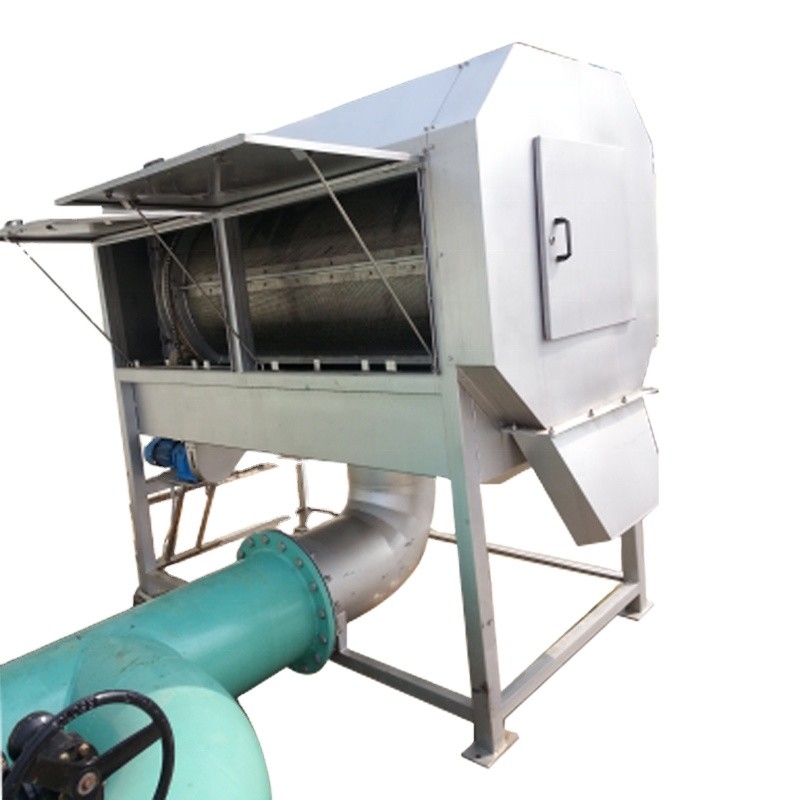

Dagyee IRD6-1200 Stainless Steel Municipal Removes Solids Liqui Fuge Wedge Wire Rotary Drum Screen
What Is External Rotary Drum Screen
Self-cleaning wedge wire screen. Primary screening separator and removes non dissolved solid materials that could cause mechanical damage and blockages to the next treatment steps in WWTP.it is a proven fine screening technology for municipal wastewater treatment plants and many industries with several application capabilities.
IRD6-1200 Type Rotating Drum Screen Technical Table
| DDS Model | IRD6-1200 |
|
Drum size mm |
Ø600x1200 |
|
Dimensions L*W*H(mm) |
2000*1350*1700 |
|
Power |
0.55 |
|
Weight(Kg) |
820 |
|
Capacities(m3/h)1,2,3(mm) |
30/50/60 |
|
Sludge height (mm) |
500 |
Technical Table Of All Models Of Rotary Drum Screen
| DDS Model |
Drum size | Physical Dimensions(mm) | Power | Weight (Kg) |
Capacities(m3/h) | Sludge height | ||||
| mm | L | W | H | KW | 1mm | 2mm | 3mm | mm | ||
|
IRD6-900 |
Ø600x900 |
1900 |
1350 |
1700 |
0.55 |
630 |
15 |
25 |
30 |
500 |
|
IRD6-1200 |
Ø600x1200 |
2200 |
1350 |
1700 |
0.55 |
820 |
30 |
50 |
60 |
500 |
|
IRD6-1500 |
Ø600x1500 |
2500 |
1350 |
1700 |
0.75 |
1000 |
45 |
70 |
85 |
500 |
|
IRD6-1800 |
Ø600x1800 |
2800 |
1350 |
1700 |
0.75 |
1160 |
60 |
100 |
120 |
500 |
|
IRD6-2100 |
Ø600x2100 |
3100 |
1350 |
1700 |
1.1 |
1300 |
80 |
135 |
170 |
500 |
|
IRD9-1200 |
Ø900x1200 |
2300 |
1600 |
2200 |
1.1 |
1200 |
40 |
70 |
85 |
600 |
|
IRD9-1800 |
Ø900x1800 |
2900 |
1600 |
2200 |
1.1 |
1470 |
80 |
135 |
170 |
600 |
|
IRD9-2500 |
Ø900x2500 |
3600 |
1600 |
2200 |
1.5 |
1800 |
120 |
200 |
250 |
600 |
|
IRD9-3000 |
Ø900x3000 |
4100 |
1600 |
2200 |
1.5 |
2100 |
160 |
270 |
350 |
600 |
How Does External Rotary Drum Screen Work
The discharge to be treated enters through the shaped wall located outside the screen body,evenly distributed by the overflow channel, and overflows on the rotary drum filter. Solids will remain on the rotary drum surface as the drum rotates, and the effluent entering through the screen will perform self cleaning function when it passes through the bottom of the rotary drum again. After passing through the external scraper, the solid is detached from the rotary drum.
External Rotary Drum Screen Features
Wedge-shaped as the filter parts, No clogging;
Stainless steel 304 316L
Used for high temperature and high concentration liquid
Drum-shaped design with a large filtering area, the floor space is small, and the energy Consumption is low
The equipment uses the recoil nozzle to clean the clogged dirt in the grid
Automatically and continuously running, and can automatically discharge slag
Fully enclosed design to prevent secondary pollution during working time
