| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | IRD9-3000 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type:: | New Product 2020 |
|---|---|---|---|
| Material: | Standard Wooden Box | Weight: | 2100 Kg |
| Size: | 4100*1600*2200 | Function: | Filtering Suspended Matter |
| Advantage: | No Clogging | Color: | Customizable |

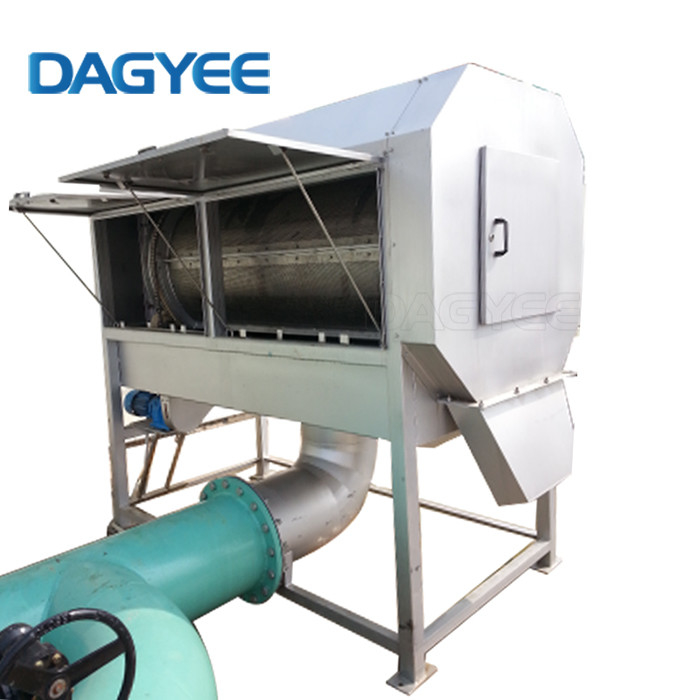

Dagyee IRD9-3000 SUS304 SUS316 Wedge Wire Pharmaceutical Wastewater Static Screen
Depending on the method of wastewater treatment that is applied the mechanical pretreatment system must fulfil different requirements in terms of separation efficiency. Special plants which operate according to the MBR principle put the highest demands on the mechanical pretreatment system as all coarse material needs to be removed.
IRD9-3000 Type Rotating Drum Screen Technical Table
| DDS Model | IRD9-3000 |
|
Drum size mm |
Ø900x3000 |
|
Dimensions L*W*H(mm) |
4100*1600*2200 |
|
Power |
1.1 |
|
Weight(Kg) |
2100 |
|
Capacities(m3/h)1,2,3(mm) |
160/270/350 |
|
Sludge height (mm) |
600 |
Technical Table Of All Models Of Rotary Drum Screen
| DDS Model |
Drum size | Physical Dimensions(mm) | Power | Weight (Kg) |
Capacities(m3/h) | Sludge height | ||||
| mm | L | W | H | KW | 1mm | 2mm | 3mm | mm | ||
|
IRD6-900 |
Ø600x900 |
1900 |
1350 |
1700 |
0.55 |
630 |
15 |
25 |
30 |
500 |
|
IRD6-1200 |
Ø600x1200 |
2200 |
1350 |
1700 |
0.55 |
820 |
30 |
50 |
60 |
500 |
|
IRD6-1500 |
Ø600x1500 |
2500 |
1350 |
1700 |
0.75 |
1000 |
45 |
70 |
85 |
500 |
|
IRD6-1800 |
Ø600x1800 |
2800 |
1350 |
1700 |
0.75 |
1160 |
60 |
100 |
120 |
500 |
|
IRD6-2100 |
Ø600x2100 |
3100 |
1350 |
1700 |
1.1 |
1300 |
80 |
135 |
170 |
500 |
|
IRD9-1200 |
Ø900x1200 |
2300 |
1600 |
2200 |
1.1 |
1200 |
40 |
70 |
85 |
600 |
|
IRD9-1800 |
Ø900x1800 |
2900 |
1600 |
2200 |
1.1 |
1470 |
80 |
135 |
170 |
600 |
|
IRD9-2500 |
Ø900x2500 |
3600 |
1600 |
2200 |
1.5 |
1800 |
120 |
200 |
250 |
600 |
|
IRD9-3000 |
Ø900x3000 |
4100 |
1600 |
2200 |
1.5 |
2100 |
160 |
270 |
350 |
600 |
Applicable Scenarios Of External Rotating Drum Screen
Seafood Processing - Offal
Pulp & Paper - rejects
Meat & Poultry Processing - Offal & Feathers
Potato Processing - flume water
Vegetable Processing
Winery Effluent
External Rotary Drum Screen Benefits
V-shaped wedge wire screen design
Built-in overflow protection
Separating and Self-Cleaning same step
Internal spray bar design
Wide range of industrial applications
Low capital and operation cost
Provide long years and trouble-free service.
Automatic operation, requires little operator attention
How Does External Rotary Drum Screen Work
The discharge to be treated enters through the shaped wall located outside the screen body,evenly distributed by the overflow channel, and overflows on the rotary drum filter. Solids will remain on the rotary drum surface as the drum rotates, and the effluent entering through the screen will perform self cleaning function when it passes through the bottom of the rotary drum again. After passing through the external scraper, the solid is detached from the rotary drum.
