| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DAF-120 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Brand Name: | Dagyee | Flow Rate: | 120 M3/hr |
|---|---|---|---|
| Material: | Steel Bracket | Inlet: | 12 |
| Power Consumption: | 17.6 KW | Pretreatment: | FRP/stainless Steel |
| Function: | Producing Fresh Wate | Color: | Customizable |

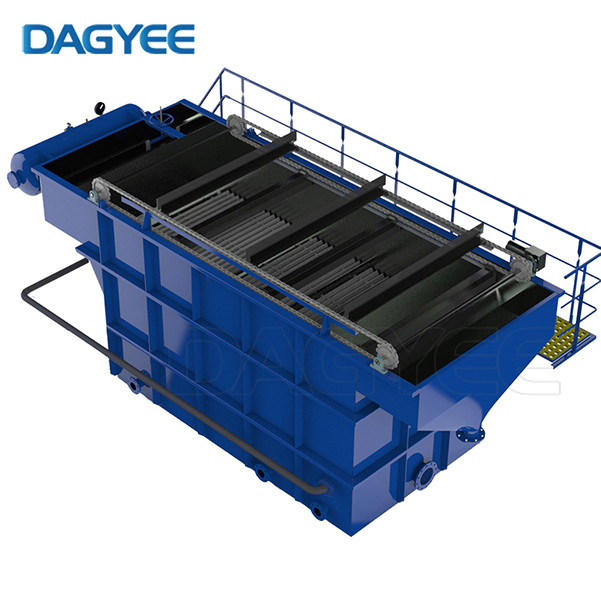

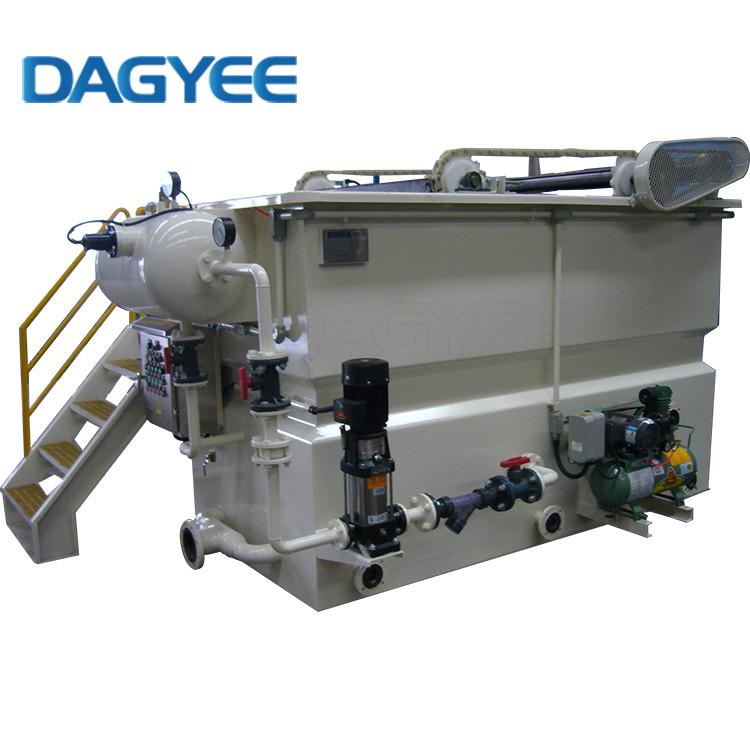

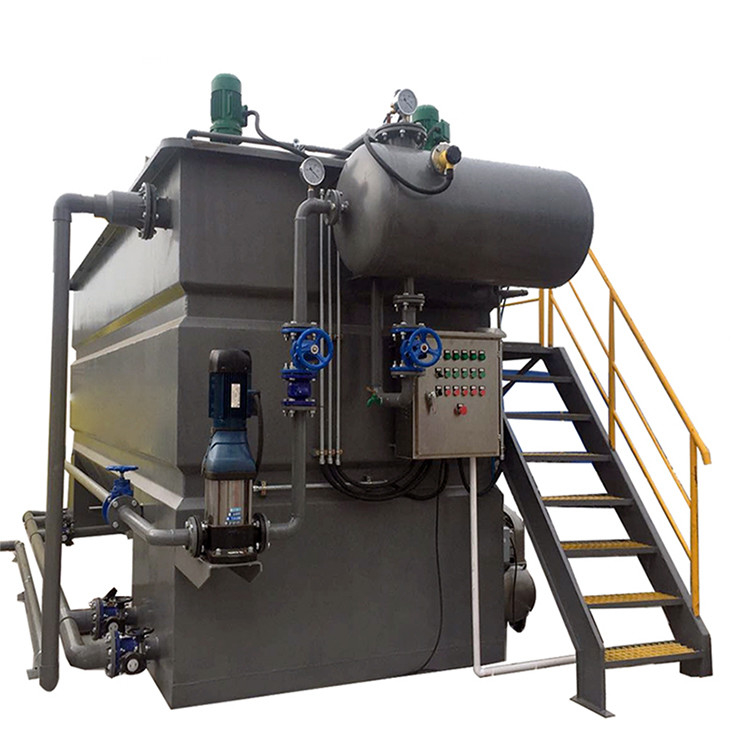

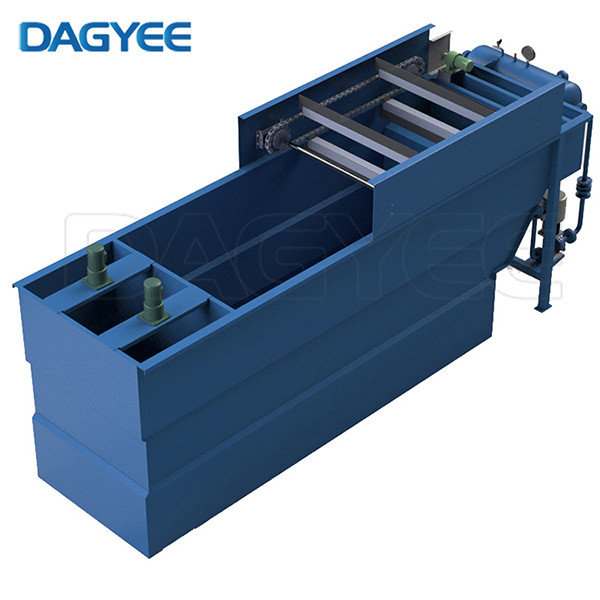

Dagyee DAF-120 Edi Landfill Leachate Daf Wastewater Dissolved Air Flotation
Dissolved air flotation is one of the most effective methods whose specific gravity is close to 1.0 from water.
Dissolved Air Flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid , oil and grease etc. Benenv dissolved air flotation is an innovation combined with traditional dissolved air flotation concept and modern technology.
120m3/hr Dissolved Air Flotation Specification
|
Parameter |
Units |
DAF 120 |
|
DAF Flow Rate |
m3/hr |
120 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
17.6 |
|
Footprint |
m |
12.5*4.4 |
|
Inlet |
in |
12 |
|
outlet |
in |
10 |
|
Sludge outlet |
in |
6 |
|
Vent |
in |
4 |
|
STANDARD INCLUSIONS + OPTIONS |
||
| Skimmer Mounted Plant | ✓ | |
| Feed Pump | ✓ | |
| Micro bubble generator | ✓ | |
| Recycle clean water system | ✓ | |
| Maintenance platform, ladder | ✓ | |
| Pre-Treatment | o | |
| Control System | ✓ | |
| Control System with PLC | o | |
| Air Compressor | ✓ | |
| Treated Water Recycling for Saturator | o | |
| Coagulation, flocculation reaction device | o | |
| Chemical powder dissolving dosing device | o | |
Main Process Characteristics
Proven superior removal of FOG, TSS, BOD,and other organic contaminates from wastewater.
Improved sludge density—float is naturally thickened and aged on the surface.
Long-term customer support.
Satisfaction guaranteed.
Application Of Dissolved Air Flotation
Separate small particles and algae in groundwater.
Recover valuable products in industrial sewage such as paper pulp.
Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
