| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DCL-060 |
| Minimum Order Quantity: | 1 SET |
| Price: | the best price |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 25-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Material: | Standard Container | Product Name: | Lamella Clarifier |
|---|---|---|---|
| Weight: | 4500 | Size: | 3.35*2.22*3 |
| Power: | 0.55kw | Application: | Wastewater Treatment |
| Feature: | Shallow Theory Designed | Function: | Efficient Precipitation |

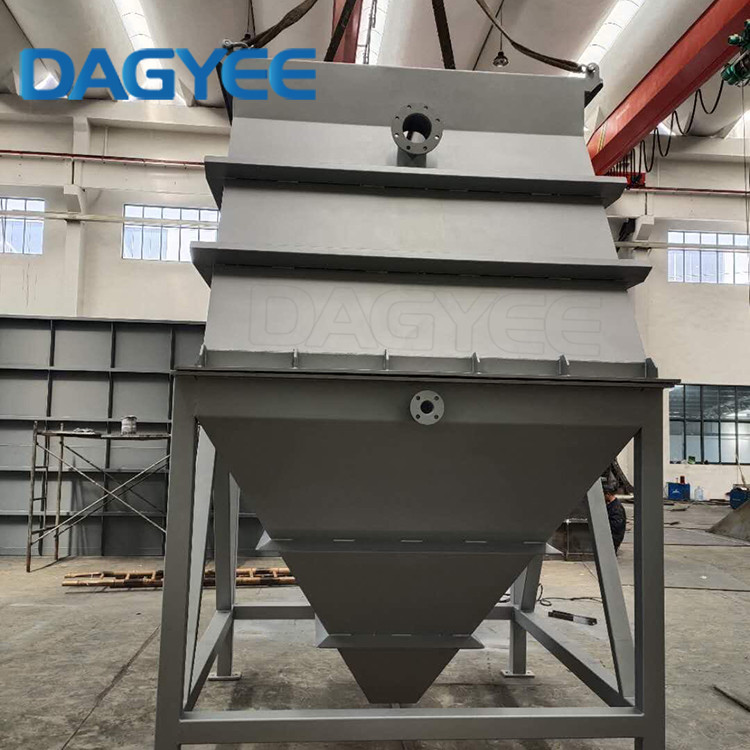

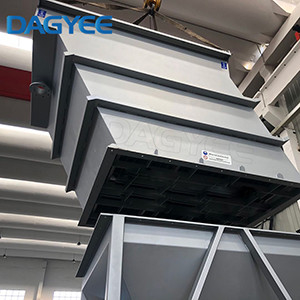

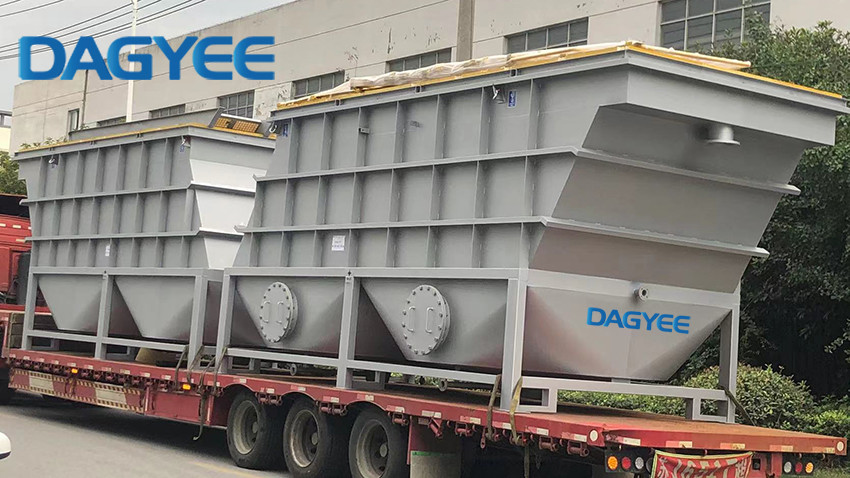

Inclined Plate Settler Wastewater Treatment Machine
Total Suspended Solids (TSS) will naturally settle over time due to gravity, but this process can be sped up and improved by having an Inclined Plate. Water flows up the plate at a 60° angle. Gravity will force the solids to settle onto the plate. The particles collect on the plates will become heavier and slide back down the plate to the clarifier cone. This process creates a counter flowing pattern, where the solids are seperated from the liquid into two lanes of traffic. The water flows in the upward bound lane, and the sludge flows in downward lane. This method reduces drag and friction creating a faster settling process than if the solids were to settle naturally.
Flocculants and Coagulants are added to improve the settling time. Coagulants neutralize the negative charge particles allowing them to sink faster. Flocculants allow for the small particles to collect and accumulate. This will make the solids heavier and easier to settle.
Continuous Operation
Due to its small volume no need to allocate large storage when emptying.
No drive nor mechanical parts.
Filling and emptying time is short.
Small floor area footprint.
Modular design for future expansions.
Modular And Compact Construction
Range of capacities (2, 4 & 6 m³/hr)
Stainless steel contstruction
Layout and construction customization possible
Can be fitted with a catwalk for maintenance
Available Designs Of Lamella Clarifier
Inclined plates spacing of 80-100 mm
Inclined plate length 1–2 m
Plate pitches between 50° and 60°
allow for self-cleaning, pitches require backwash
Typical loading rates are 5 to 15m/h
40M3/hr Lamella Clarifier Specifications
|
