| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DAF-100 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Brand Name: | Dagyee | Flow Rate: | 100m3/hr |
|---|---|---|---|
| Material: | Steel Bracket | Power Consumption: | 12.9KW |
| Pretreatment: | Stainless Steel 304 Or FRP Tank | Desalination Rate: | 99% |
| DAF Flow Rate: | 100m3/hr | Usage: | Pure Water Process |

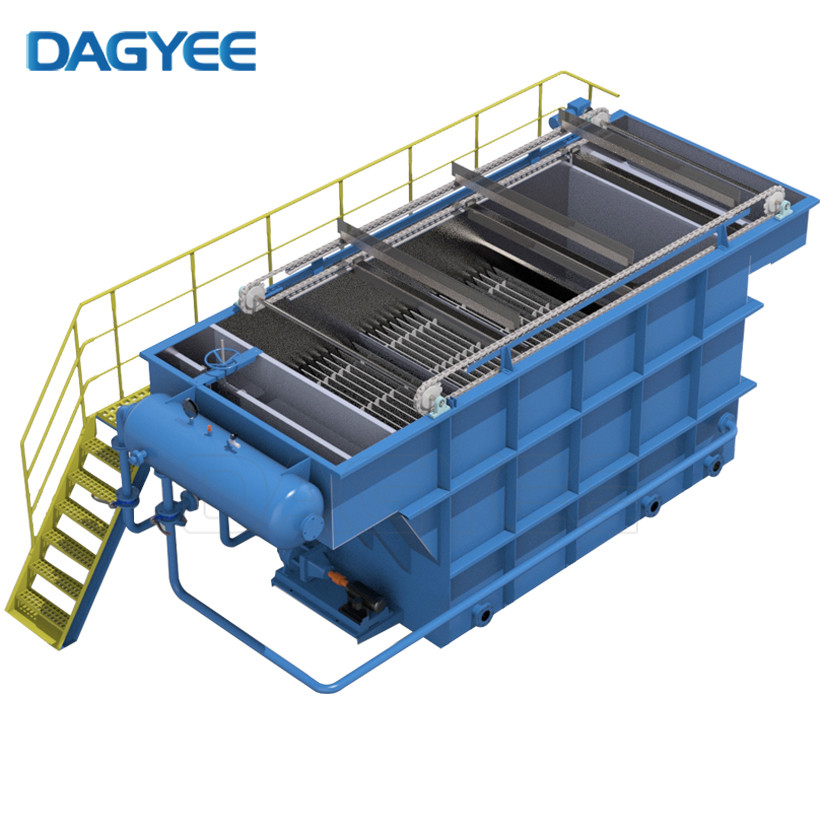

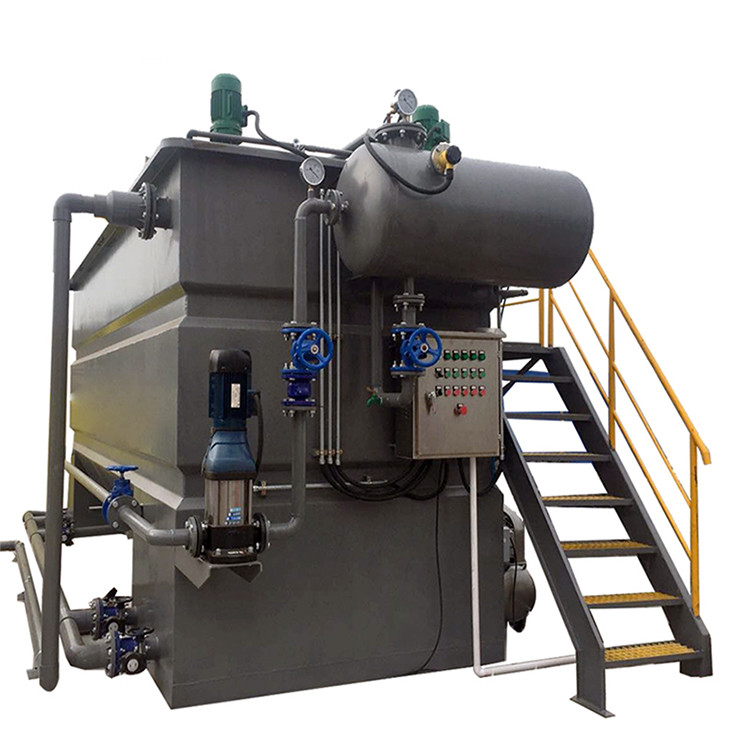

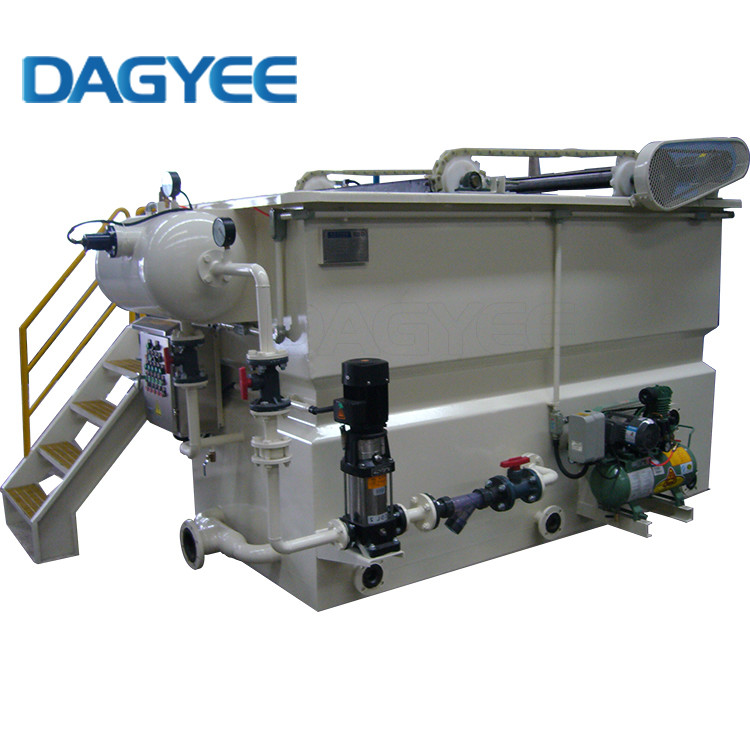

Dagyee DAF-100 Edi SS304 Doseer Pipe Refineries Flocculator Dissolved Air Flotation Whitewater System
DAF Dissolved air flotation price (DAF) is used to treat wastewater that Contain free floating or emulsified oil, dissolved heavy metals, soaps ,surfactants ,and many other waste streams. With the features of lower power consumption, high treat efficiency, simple installation and maintenance , it is one of the most popular dissolved air flotation clarifier in China.daf for industrial oily water treatment.
100m3/hr Dissolved Air Flotation Specification
|
Parameter |
Units |
DAF 100 |
|
DAF Flow Rate |
m3/hr |
100 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
12.9 |
|
Footprint |
m |
12.1*4.2 |
|
Inlet |
in |
12 |
|
outlet |
in |
10 |
|
Sludge outlet |
in |
6 |
|
Vent |
in |
4 |
| STANDARD INCLUSIONS + OPTIONS ✓= Standard Supply, o = Optional Supply |
||
|
Skimmer Mounted Plant |
✓ |
|
|
Feed Pump |
✓ |
|
|
Micro bubble generator |
✓ |
|
|
Recycle clean water system |
✓ |
|
|
Maintenance platform, ladder |
✓ |
|
|
Pre-Treatment |
o |
|
|
Control System |
✓ |
|
|
Control System with PLC |
o |
|
|
Air Compressor |
✓ |
|
|
Treated Water Recycling for Saturator |
o |
|
|
Coagulation, flocculation reaction device |
o |
|
|
Chemical powder dissolving dosing device |
o |
|
Features Of Dissolved Air Flotation
Reduction in wastewater surcharges and further treatment expense. Better energy efficiency—physical separation vs biological treatment. Recovery of useful and marketable by-products. Reduction in chemical usage—smaller more abundant bubbles float a finer floc. Cost efficient, in-house manufacturing.
Application Of Dissolved Air Flotation
Meat, poultry, and fish processing
Dairy industry
Petrochemicals
Pulp and paper
Food and beverage
