| Place of Origin: | China |
|---|---|
| Brand Name: | dagyee |
| Certification: | M.2020.206.C9739 |
| Model Number: | LC-070 |
| Minimum Order Quantity: | 1 SET |
| Price: | CUSTOM |
| Packaging Details: | Wooden case,standard container,can be specified |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10SET |
| Product Name: | Water Treatment System | Application: | Filtration |
|---|---|---|---|
| Usage: | Storage Liquid | Capacity: | Up To 5 L / H |
| Keywords: | Water Filter System Small Industry | Function: | Producing Fresh Water |
| Power: | 14W | Feature: | Eco-friendly |
| MOQ: | 1 Set |

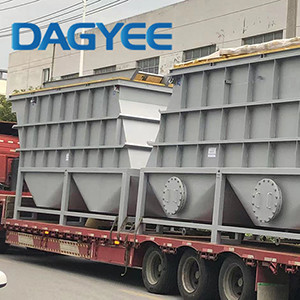

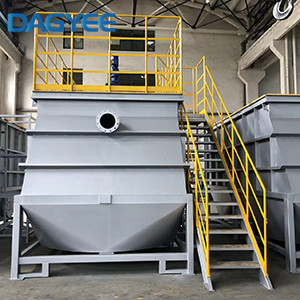

Lamella Inclined Plate Clarifier
Product Description
The clarifier consists of a series of inclined plates, which are arranged to form a separate sedimentation chamber between adjacent plates.
The raw water is first fed to Static Mixer.
Chemicals like alum, poly electrolyte are added prior to static Mixer for proper mixing of chemicals in water.
Water from Static mixer enters in Flocculator in which paddle type agitator is provided for gentle mixing.
Product Features
Structural steel support legs
Epoxy painted carbon steel tank
Individually removable FRP
Plates
Adjustable effluent weir plates
Standard units can be
Manufactured for flows from 5
Gpm to 3000 gpm and above in
A single above-grade tank
One-piece prefabricated units
Are available with up to 1000 sqft
Of effective settling area
Single tank construction with
Integral flash mix/flocculation
Compartments for smaller units
Multiple sample connections
|
70M3/hr Lamella Clarifier Specifications |
||
|
Parameter |
Units |
DCL-070 |
|
Flow Rate |
m3/h |
0-70 |
|
Effective Settling Area |
m2 |
70 |
|
Efficiency |
% |
80-90 |
|
Treated water turbidity |
NTU |
50-100 |
|
Dimensions (Clarifier Only) |
L x W x H (m) |
6.4*2.6*3 |
|
Inlet |
Inch |
10 |
|
Effluent |
Inch |
8 |
|
Sludge outlet |
Inch |
2 |
|
Backwash |
Inch |
2 |
|
Power |
Kw |
0.55 |
|
Weight |
Kg |
6500 |
|
Voltage |
Standard |
380V/3Phase/50Hz |
|
STANDARD INCLUSIONS + OPTIONS |
||
|
Lamella Body Epoxy Coated Carbon Steel |
✓ |
|
|
Feed Pump |
o |
|
|
Floculator Tanks |
o |
|
|
Flash & Floc Mixers |
o |
|
|
Sludge Scraper |
o |
|
|
Lamella / Floc Tank Support Galvanised Mild Steel Construction |
✓ |
|
|
Standard Controller |
✓ |
|
|
Lamella Body – 304ss |
o |
|
|
Lamella Body – 316ss |
o |
|
|
Variable Speed Mixer |
o |
|
|
Access Platform and Ladder |
o |
|
|
Sludge Hopper Actuated Valve |
o |
|
|
Sludge pump |
o |
|
Application Of The Product
Potable water clarification
Industrial process water
Sand filter backwash
Metal finishing
Mining
Groundwater
River pre-sedimentation
