| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | PT-1000 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | 304 316 | Capacity: | 1000 |
| Water Inlet Flow: | 4.2-20 | Weight: | 650 |
| Application: | Chemical Storage | Warranty: | 1 Year |

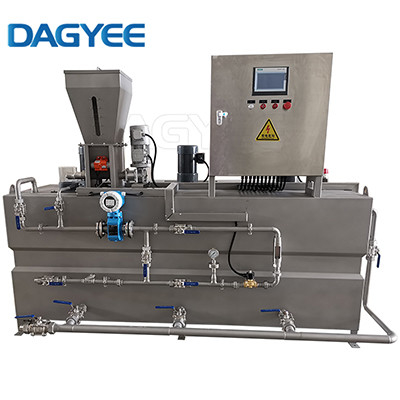

Automatic Polymer Dosing Unit
Product structure

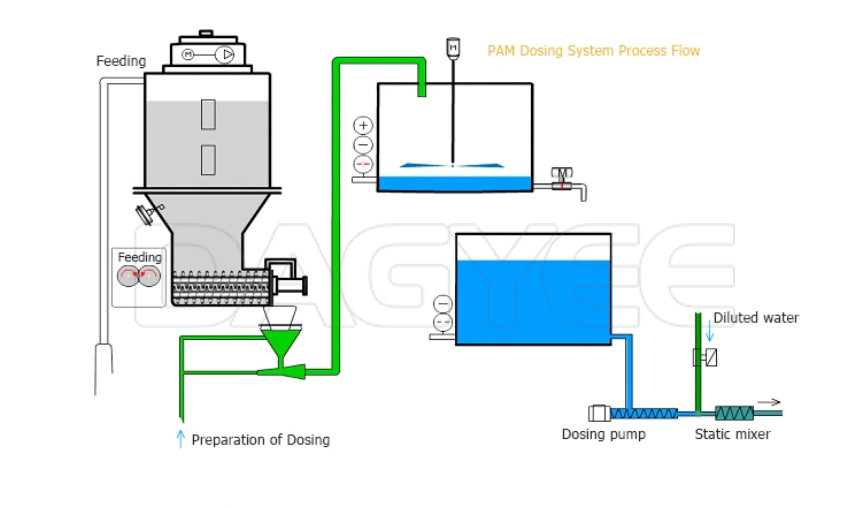

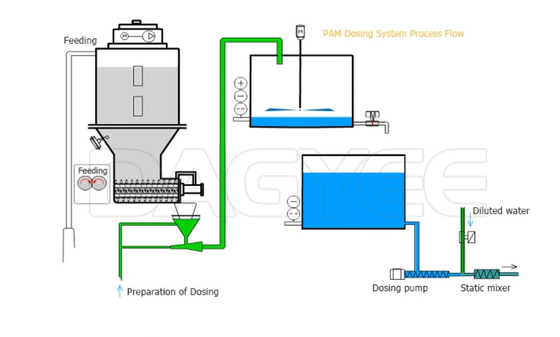

DT series automatic dosing device is mainly composed of automatic quantitative, feeding, adding dry powder feeding unit, dry powder pre-infiltration device, inlet and outlet pipelines, box and liquid level measurement mixing equipment and automatic control unit. DT series automatic dosing device is an integral system unit integrating dry powder storage, feeding, infiltration, dissolving, aging and other processes. It is a fully automatic equipment that can continuously prepare polymer solutions in batches. The device can efficiently and conveniently promote the full maturity and dissolution of the polymer, preventing the green polymer from being fed and added to the processing system. PAM powder can be dosed into the polymer dissolution tank by means of a screw feeder. The powder is mixed with water and stirred well to dissolve into a PAM solution with a concentration of 0.1-0.4%, and then the solution enters the polymer storage tank for further use in the aging process.
Optional equipment
• Automatic powder hopper loading
• Minimum level probe in the powder hopper
• Stirrer in the batching tank
• Vibrator for hopper
• Prefabricated post-dilution systems
Product description
A comple te range of polyme r batching and me t ering sys tems.The polymer preparation unit automatically prepares polymer solutions which are
used as coagulants for the eventual removal of suspended particles in the water treatment processes of a number of applications from swimming pool maintenance through to the various stages of wastewater treatment, as well as oil recovery, colour removal, paper production and mineral processing.

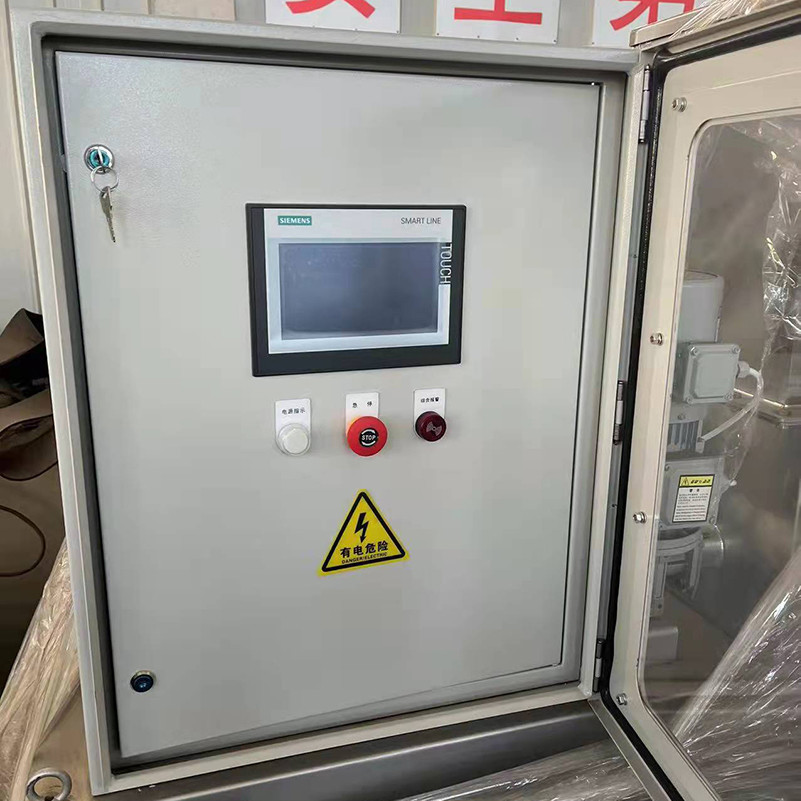

The range also comes with a variety of electrical control panels, mixers,diaphragm pumps and tank sizes to offer an optimum solution for every application.Its design also means that Dagyee offers flexible and compact footprint solutions to fit even confined spaces.
Applications
Using polymers and flocculants considerably facilitates the processes of removing particles and solids suspended in liquid in the following
applications:
• Treating potable and industrial processing water
• Purifying waste water
• Treating sludge, in order to improve the performance of centrifuges and filter presses
• Processes for the paper, chemical, petrochemical, mineral processing, canning industrie
Product serie
|
DT |
Capacities |
Tank |
Capacity |
Timing |
Weight |
Power |
|
Model |
(L/h) |
Volume(L) |
(m³/h) |
(h) |
(Kg) |
KW) |
|
DT200 |
200 |
350 |
0.12-0.6 |
1.0-1.5 |
250 |
0.54 |
|
DT430 |
430 |
750 |
0.3-1.5 |
1.0-1.5 |
350 |
0.92 |
|
DT958 |
958 |
1580 |
0.6-3 |
1.0-1.5 |
480 |
1.3 |
|
DT1340 |
1340 |
2200 |
0.8-4 |
1.0-1.5 |
560 |
1.7 |
|
DT2660 |
2660 |
4050 |
1.6-8 |
1.0-1.5 |
790 |
2.4 |
|
DT4165 |
4165 |
6170 |
2.4-12 |
1.0-1.5 |
1050 |
3.2 |
|
DT6660 |
6660 |
9610 |
4.2-20 |
1.0-1.5 |
1200 |
4.8 |
|
DT10940 |
10940 |
15780 |
6-30 |
1.0-1.5 |
1450 |
6.4 |
Feature
