| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DT200 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | 304 316 | Capacity: | 200 |
| Timing: | 1.0-1.5h | Weight: | 250 |
| Application: | Chemical Storage | Warranty: | 1 Year |

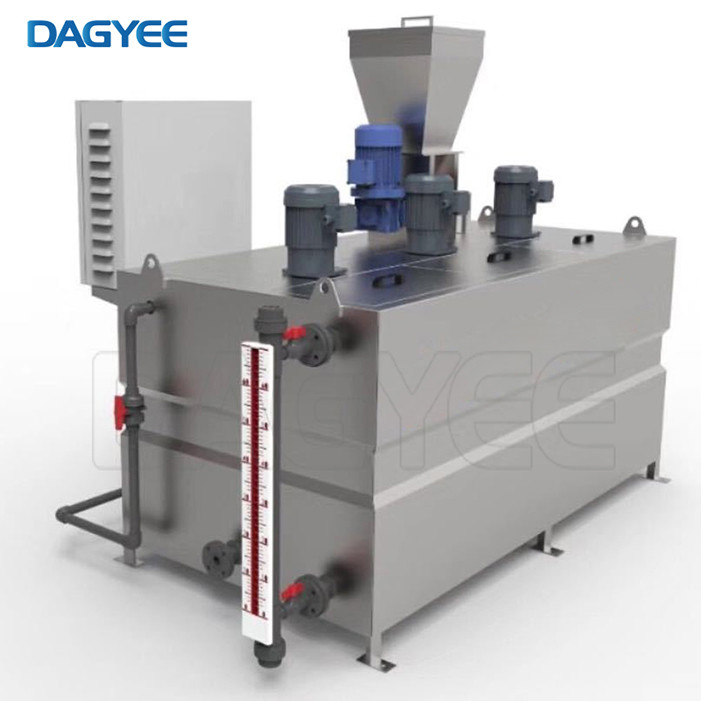

Automatic Polymer Dosing Unit
Product structure
DT series automatic dosing device is mainly composed of automatic quantitative, feeding, adding dry powder feeding unit, dry powder pre-infiltration device, inlet and outlet pipelines, box and liquid level measurement mixing equipment and automatic control unit. DT series automatic dosing device is an integral system unit integrating dry powder storage, feeding, infiltration, dissolving, aging and other processes. It is a fully automatic equipment that can continuously prepare polymer solutions in batches. The device can efficiently and conveniently promote the full maturity and dissolution of the polymer, preventing the green polymer from being fed and added to the processing system. PAM powder can be dosed into the polymer dissolution tank by means of a screw feeder. The powder is mixed with water and stirred well to dissolve into a PAM solution with a concentration of 0.1-0.4%, and then the solution enters the polymer storage tank for further use in the aging process.
Optional equipment
• Automatic powder hopper loading
• Minimum level probe in the powder hopper
• Stirrer in the batching tank
• Vibrator for hopper
• Prefabricated post-dilution systems
Product description
The flocculant dissolving concentration are available in certain scope;
Auto intermittent agitating function,which make sure the solution can be mixed throughly and keep the solution in good condition(3 series);
Auto alarming and stopping when the powder feeding hopper at low stock, which have the advantage of energy-saving (optional);
Low noise-low vibration and stable performance;
Material adopts stainless steel sus304(standard type), others please confirm with us before ordering;
Top brand spare parts to ensure excellent performance. Auto powder feeding vacuum auxiliary system (optional).
Applications
It is especially suitable for municipal sewage treatment plants, industrial waste water treatment and other industries which need to add flocculant solution.
It is widely used in sludge dewatering machine, wastewater treatment and various processes (food, chemical industry, dyeing and finishing, papermaking etc.) When the powder is dissolved and added.
It is suitable for dissolving and adding all kinds of dry powder, granule, flocculant and concentrated liquid powder.
Product serie
|
DT |
Capacities |
Tank |
Capacity |
Timing |
Weight |
Power |
|
Model |
(L/h) |
Volume(L) |
(m³/h) |
(h) |
(Kg) |
KW) |
|
DT200 |
200 |
350 |
0.12-0.6 |
1.0-1.5 |
250 |
0.54 |
|
DT430 |
430 |
750 |
0.3-1.5 |
1.0-1.5 |
350 |
0.92 |
|
DT958 |
958 |
1580 |
0.6-3 |
1.0-1.5 |
480 |
1.3 |
|
DT1340 |
1340 |
2200 |
0.8-4 |
1.0-1.5 |
560 |
1.7 |
|
DT2660 |
2660 |
4050 |
1.6-8 |
1.0-1.5 |
790 |
2.4 |
|
DT4165 |
4165 |
6170 |
2.4-12 |
1.0-1.5 |
1050 |
3.2 |
|
DT6660 |
6660 |
9610 |
4.2-20 |
1.0-1.5 |
1200 |
4.8 |
|
DT10940 |
10940 |
15780 |
6-30 |
1.0-1.5 |
1450 |
6.4 |
