| Place of Origin: | China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | IS09001 |
| Model Number: | DAF-010 |
| Minimum Order Quantity: | 1PCS |
| Price: | Askable |
| Packaging Details: | Wooden case, standard container, Can be specified by customers |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Size: | 6.8*3.2 | Surfce Treat: | Polished & Sandblast |
|---|---|---|---|
| Warranty: | 1 Year | Condition: | New |
| Payment: | Paypal, T/T,Western Union, Escrow,MoneyGram | Product Name: | Dissolved Air Flotation |

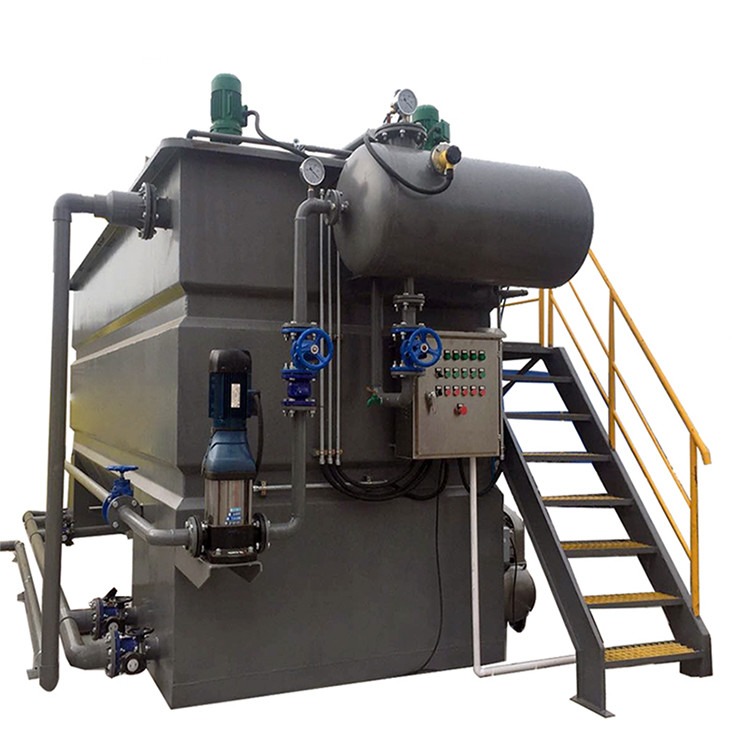

Industrial Wastewater Oil Water Separator Micro Bubble Generator DAF Dissolved Air Flotation
The DAF combines Ph Control, Coagulation, Flocculation and Flotation, all in one unit. The Patented SYSDAF technology does not require compressed air or bottom scraping. Dissolved air is provided to the system all along the bottom of the flotation tank and this ensures very efficient operation, maximum removal of pollutants and no sedimentation.
The final stage of chemical treatment includes the separation of solids and flocs from the water. Depending upon the characteristics of the solids/flocs, sludge and clean water can be separated using:
Slant Plate Clarifiers use gravity settlings, the most energy efficient solids/water separation technique. Slant plates are used to decrease the distance a particle has to fall before it hits a surface. The flow rate of the clarifier is based on a number of factors, including particle density, surface area, fall rate, loading and temperature.
Dissolved Air Flotation (DAF) are incorporated when the sludge is less dense than water, or is neutrally buoyant. DAF uses billions of micro-bubbles that attach themselves to the flocs and carry them to the surface. These bubbles, known as “whitewater”, are removed by a mechanical skimmer within the DAF unit that skims away floating sludge.
10m3/hr Dissolved Air Flotation Specification
| Parameter | Units | DAF 010 |
|
DAF Flow Rate |
m3/hr |
10 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
2.45 |
|
Footprint |
m |
4.65*2.7 |
|
Inlet |
in |
4 |
|
outlet |
in |
4 |
|
Sludge outlet |
in |
4 |
|
Vent |
in |
4 |
| STANDARD INCLUSIONS + OPTIONS ✓= Standard Supply, o = Optional Supply |
||
|
Skimmer Mounted Plant |
✓ |
|
|
Feed Pump |
✓ |
|
|
Micro bubble generator |
✓ |
|
|
Recycle clean water system |
✓ |
|
|
Maintenance platform, ladder |
✓ |
|
|
Pre-Treatment |
o |
|
|
Control System |
✓ |
|
|
Control System with PLC |
o |
|
|
Air Compressor |
✓ |
|
|
Treated Water Recycling for Saturator |
o |
|
|
Coagulation, flocculation reaction device |
o |
|
|
Chemical powder dissolving dosing device |
o |
|
Main process features
Application of dissolved air flotation
Paper-making waste water treatment for fiber recycling.
Paint, printing and dyeing waste water treatment for color reduction.
Chemical waste water treatment.
Food waste water treatment.
Oil refinery for separating oil and impurity.
Frequently Asked Questions on Dissolved Gas Flotation
• How to buy your idea products?
A:You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
• How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
• What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
• How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
• How to keep your equipments from corrosion?
A: We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.
