| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | IRD9-2500 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type:: | New Product 2020 |
|---|---|---|---|
| Material: | Standard Wooden Box | Weight: | 1800 Kg |
| Size: | 3600*1600*2200 | Function: | Filtering Suspended Matter |
| Advantage: | No Clogging | Color: | Customizable |
Dagyee IRD9-2500 SUS304 SUS316 Wedge Wire Pharmaceutical Wastewater Static Screen

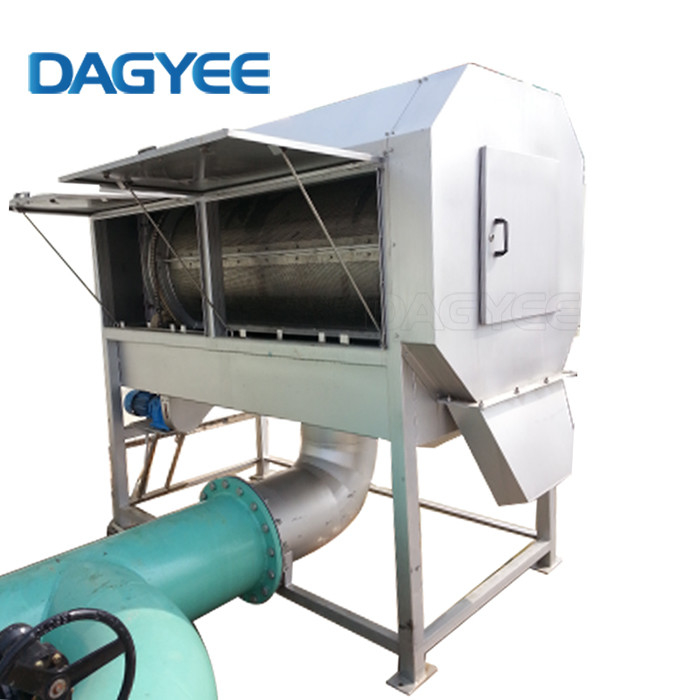

The internal feed rotary screen operates very little. Influent water enters through the inlet and flows into the headbox. The headbox is filled with water and the inlet overflows onto the weir and contacts the sides of the rotating cylinder screen. When the incoming water hits the rotating screen, the solids are trapped in the cylinder and the liquid enters the process through the screen or continues to be processed. A splitter on the cylinder moves the solid along the length of the screen for discharge. The device is equipped with spray bars head to clean the screen.
IRD9-2500 Type Rotating Drum Screen Technical Table
| DDS Model | IRD9-2500 |
|
Drum size mm |
Ø900x2500 |
|
Dimensions L*W*H(mm) |
3600*1600*2200 |
|
Power |
1.5 |
|
Weight(Kg) |
1800 |
|
Capacities(m3/h)1,2,3(mm) |
120/200/250 |
|
Sludge height (mm) |
600 |
Technical Table Of All Models Of Rotary Drum Screen
| DDS Model |
Drum size | Physical Dimensions(mm) | Power | Weight (Kg) |
Capacities(m3/h) | Sludge height | ||||
| mm | L | W | H | KW | 1mm | 2mm | 3mm | mm | ||
|
IRD6-900 |
Ø600x900 |
1900 |
1350 |
1700 |
0.55 |
630 |
15 |
25 |
30 |
500 |
|
IRD6-1200 |
Ø600x1200 |
2200 |
1350 |
1700 |
0.55 |
820 |
30 |
50 |
60 |
500 |
|
IRD6-1500 |
Ø600x1500 |
2500 |
1350 |
1700 |
0.75 |
1000 |
45 |
70 |
85 |
500 |
|
IRD6-1800 |
Ø600x1800 |
2800 |
1350 |
1700 |
0.75 |
1160 |
60 |
100 |
120 |
500 |
|
IRD6-2100 |
Ø600x2100 |
3100 |
1350 |
1700 |
1.1 |
1300 |
80 |
135 |
170 |
500 |
|
IRD9-1200 |
Ø900x1200 |
2300 |
1600 |
2200 |
1.1 |
1200 |
40 |
70 |
85 |
600 |
|
IRD9-1800 |
Ø900x1800 |
2900 |
1600 |
2200 |
1.1 |
1470 |
80 |
135 |
170 |
600 |
|
IRD9-2500 |
Ø900x2500 |
3600 |
1600 |
2200 |
1.5 |
1800 |
120 |
200 |
250 |
600 |
|
IRD9-3000 |
Ø900x3000 |
4100 |
1600 |
2200 |
1.5 |
2100 |
160 |
270 |
350 |
600 |
Applicable Scenarios Of External Rotating Drum Screen
Industrial and municipal applications
Primary and secondary treatment stage
Protection of membrane plants
Replacement for primary settlement tank
Load reduction in the biological treatment system
Through reduction of COD / BOD/ AFS
Screening in the inlet to power plants
Treatment of cooling water circuits
Brewery wastewater
River and sea outfall
Surface and river water screening
External Rotary Drum Screen Benefits
How Does External Rotary Drum Screen Work

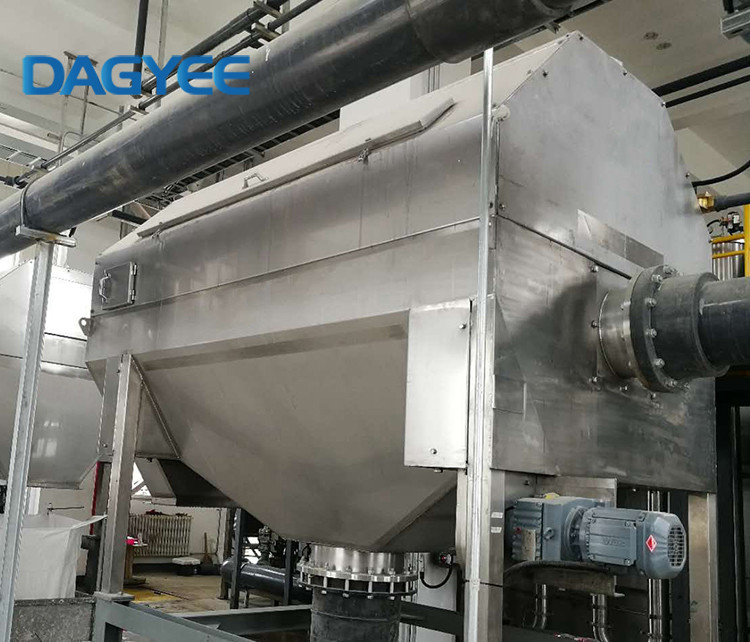

The discharge to be treated enters through the shaped wall located outside the screen body,evenly distributed by the overflow channel, and overflows on the rotary drum filter. Solids will remain on the rotary drum surface as the drum rotates, and the effluent entering through the screen will perform self cleaning function when it passes through the bottom of the rotary drum again. After passing through the external scraper, the solid is detached from the rotary drum.
