| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DT1340 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | 304 316 | Capacity: | 1340 |
| Timing: | 1.0-1.5h | Weight: | 560KG |
| Application: | Chemical Storage | Warranty: | 1 Year |

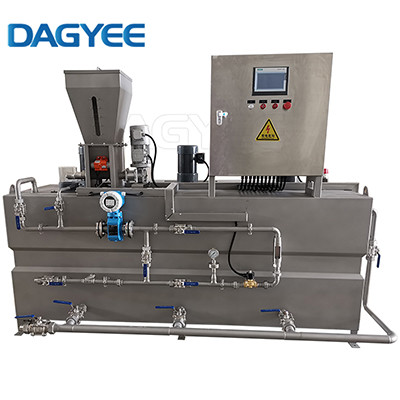

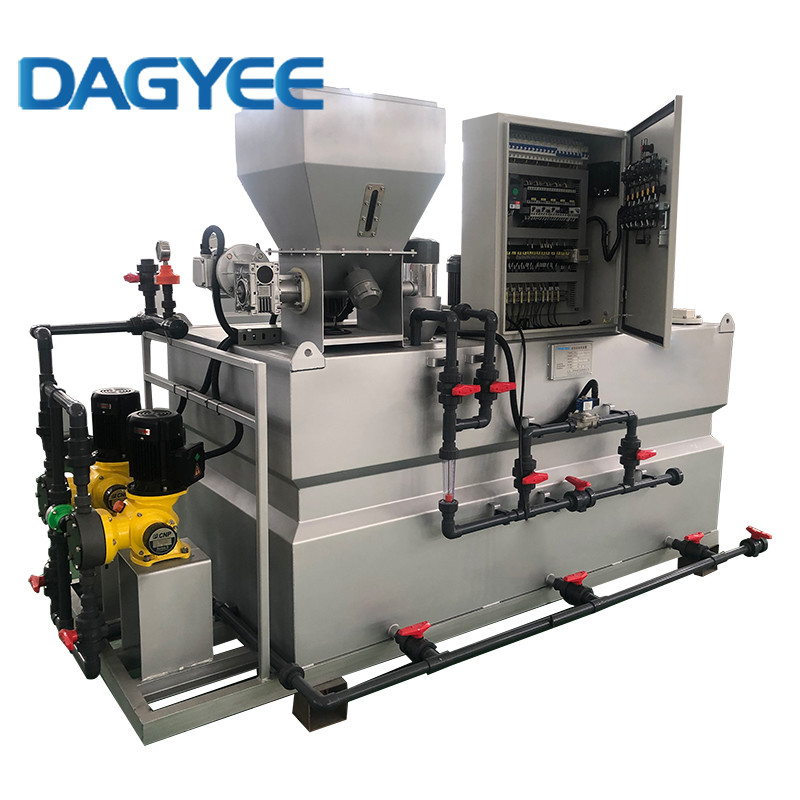

Automatic Polymer Dosing Unit
Product structure

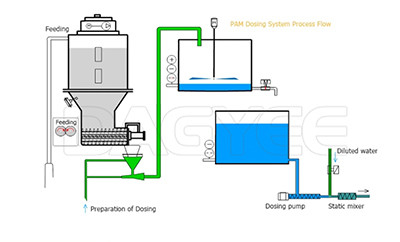

This device is an automatic and continuous powder dispensing and dosing system.The dry powder enters the premix and water from the screw at the bottom of the hopper for premix, and the wet material enters the mixing tank for dilution and mixing, and is prepared according to the concentration required by the user.
The preparation solution goes from the preparation tank to the curing tank and then into the storage tank. When the liquid level of the storage tank is at a high level, the preparation process will automatically stop, and when the solution drops to a low level, the batching process will automatically start.Agitator is set in both preparation tank and curing tank to ensure the dilution and curing of reagents.The prepared flow rate and concentration can be determined by adjusting the inlet flow rate and the rotating speed of the screw shaft.
Optional equipment
• Automatic powder hopper loading
• Minimum level probe in the powder hopper
• Stirrer in the batching tank
• Vibrator for hopper
• Prefabricated post-dilution systems
Product description
Automatic dosing device is a complete set of equipment with dosing, stirring, liquid transportation and automatic control, which is widely used in raw water of power plant, boiler feed water, oil field surface gathering and transportation dehydration treatment system, various dosing systems of petrochemical industry and waste water treatment system.
Auto-Dosing Device for wastewater is installed before Spiral Type Sludge Dewatering Equipment. It is used in PAM (polyacrylamide) dosing dissolving mixing and solution dosing. It consists of triple cavity case, dry powder addition system, liquid mixing system, control system, liquid injection system.
Applications
Product serie
|
DT |
Capacities |
Tank |
Capacity |
Timing |
Weight |
Power |
|
Model |
(L/h) |
Volume(L) |
(m³/h) |
(h) |
(Kg) |
(KW) |
|
DT200 |
200 |
350 |
0.12-0.6 |
1.0-1.5 |
250 |
0.54 |
|
DT430 |
430 |
750 |
0.3-1.5 |
1.0-1.5 |
350 |
0.92 |
|
DT958 |
958 |
1580 |
0.6-3 |
1.0-1.5 |
480 |
1.3 |
|
DT1340 |
1340 |
2200 |
0.8-4 |
1.0-1.5 |
560 |
1.7 |
|
DT2660 |
2660 |
4050 |
1.6-8 |
1.0-1.5 |
790 |
2.4 |
|
DT4165 |
4165 |
6170 |
2.4-12 |
1.0-1.5 |
1050 |
3.2 |
|
DT6660 |
6660 |
9610 |
4.2-20 |
1.0-1.5 |
1200 |
4.8 |
|
DT10940 |
10940 |
15780 |
6-30 |
1.0-1.5 |
1450 |
6.4 |
