| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DT4165 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30SET |
| Condition: | New | Product Name: | Polymers Preparation Dosing System |
|---|---|---|---|
| Material: | 304 316 | Capacity: | 4165 |
| Timing: | 1.0-1.5h | Weight: | 1050KG |
| Application: | Chemical Storage | Warranty: | 1 Year |

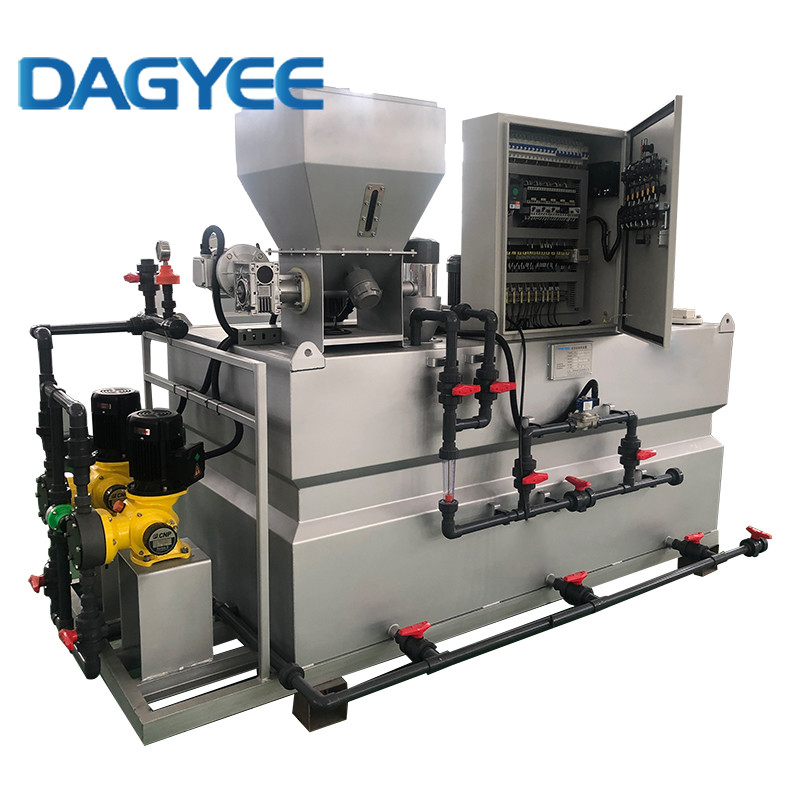

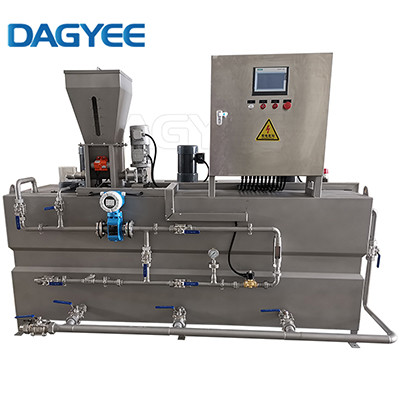

Automatic Polymer Dosing Unit
Product structure
This device is an automatic and continuous powder dispensing and dosing system.The dry powder enters the premix and water from the screw at the bottom of the hopper for premix, and the wet material enters the mixing tank for dilution and mixing, and is prepared according to the concentration required by the user.
The preparation solution goes from the preparation tank to the curing tank and then into the storage tank. When the liquid level of the storage tank is at a high level, the preparation process will automatically stop, and when the solution drops to a low level, the batching process will automatically start.Agitator is set in both preparation tank and curing tank to ensure the dilution and curing of reagents.The prepared flow rate and concentration can be determined by adjusting the inlet flow rate and the rotating speed of the screw shaft.
Optional equipment
• Automatic powder hopper loading
• Minimum level probe in the powder hopper
• Stirrer in the batching tank
• Vibrator for hopper
• Prefabricated post-dilution systems
Product description
This device is flocculating agent automatic continuous preparation and addition system. Dry powder flocculating agent from spiral propeller to instant device premix with clean water, the wet agentia goes into mixing tank for mixing and diluting,prepare it with the concentration requirement; if it is a liquid flocculant, it is directly injected into the preparation tank by the screw pump. If it is a liquid flocculant agent, it is directly injected into the preparation tank by the screw pump. In the preparation process,The water inflow must be relatively stable under the observation of the flowmeter, to ensure that the concentration is no change in whole working process.
Applications
Municipal Sewage
Slaughter House
Metallurgical Industry Wastewater
Spraying Sewage
Printing & Dyeing Sewage
Metal-Processing Sewage
Mining Stone Wastewater
Electronic Sewage
Product serie
|
DT |
Capacities |
Tank |
Capacity |
Timing |
Weight |
Power |
|
Model |
(L/h) |
Volume(L) |
(m³/h) |
(h) |
(Kg) |
(KW) |
|
DT200 |
200 |
350 |
0.12-0.6 |
1.0-1.5 |
250 |
0.54 |
|
DT430 |
430 |
750 |
0.3-1.5 |
1.0-1.5 |
350 |
0.92 |
|
DT958 |
958 |
1580 |
0.6-3 |
1.0-1.5 |
480 |
1.3 |
|
DT1340 |
1340 |
2200 |
0.8-4 |
1.0-1.5 |
560 |
1.7 |
|
DT2660 |
2660 |
4050 |
1.6-8 |
1.0-1.5 |
790 |
2.4 |
|
DT4165 |
4165 |
6170 |
2.4-12 |
1.0-1.5 |
1050 |
3.2 |
|
DT6660 |
6660 |
9610 |
4.2-20 |
1.0-1.5 |
1200 |
4.8 |
|
DT10940 |
10940 |
15780 |
6-30 |
1.0-1.5 |
1450 |
6.4 |
Feature
Automatically Operate
Amount of the powder feeding is exactitude
SUS304 crust, all imported parts

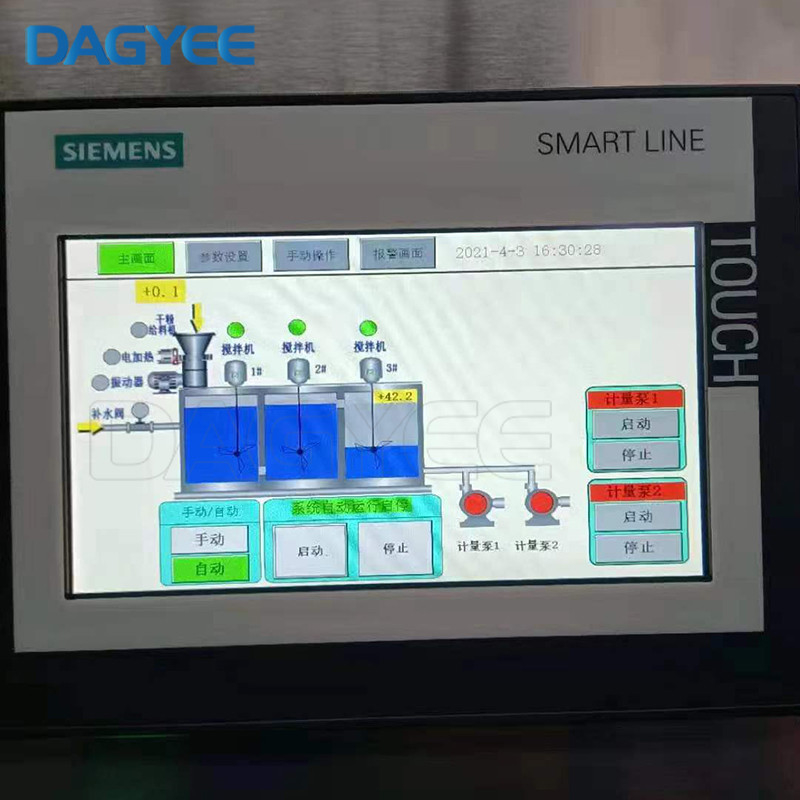

All message is output by touch
Guarantee the treatment effect, avoid waste
Attractive appearance
