| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | ISO |
| Model Number: | LW400-1600 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate with buyers |
| Packaging Details: | Decanter Centrifuge 2300*700*1300 Standard wooden box, container |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 set per month |
| Keywords: | Alumina Decanter Centrifuge | Material: | 304 316L |
|---|---|---|---|
| Capacity:: | 2-10 M3/h | Application: | Processing Sludge Dewatering WWTP |

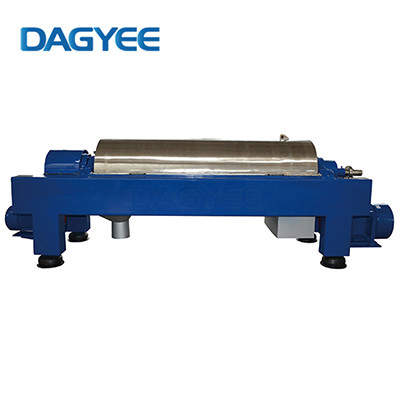

2 Phase Decanter Centrifuges Description
Horizontal spiral discharge sedimentation centrifuge (referred to as decanter centrifuge) is an effective separation equipment which use centrifugal acceleration generated by high-speed rotation into the acceleration of gravity to shorten thousands of times of the settlement time of solid particles than in the gravity field. The solid particles are discharged from the drum through the screw conveyor continuously and without interruption.
LW series Industry Decanter centrifuge is widely used in wastewater treatment, crude oil recovery, coal tar recovery, palm oil recovery, fruit juice production, protein production, DDGS production, starch production, food waste treatment, etc. with VFD, and PLC Control, can choose 2/3 phase separation.
2 Phase Decanter Centrifuges Model
|
Model |
Drum diameter mm |
Length mm |
Maximum speed rpm |
Hightest separation factor g |
Mixture capacity m3/h |
Motor Power Kw |
|
LW250-900 |
250 |
900 |
5000 |
3500 |
0.5-3 |
11/5.5 |
|
LW350-1500 |
350 |
1500 |
3800 |
2850 |
1-5 |
18.5/5.5 |
|
LW400-1200 |
400 |
1200 |
3400 |
2581 |
1-8 |
22/7.5 |
|
LW400-1600 |
400 |
1600 |
3400 |
2581 |
2-10 |
22/7.5 |
|
LW400-1800 |
400 |
1800 |
3400 |
2581 |
2-12 |
22/7.5 |
|
LW450-1800 |
450 |
1800 |
3200 |
2572 |
5-20 |
30/7.5 |
|
LW450-2000 |
450 |
2000 |
3200 |
2572 |
5-25 |
30/7.5 |
|
LW530-2280 |
530 |
2280 |
2800 |
2350 |
10-50 |
45/15 |
|
LW600-2400 |
600 |
2400 |
2600 |
2265 |
15-65 |
55/18.5 |
|
LW650-2600 |
650 |
2600 |
2400 |
2100 |
20-80 |
55/90 |
|
LW720-2500 |
720 |
2500 |
2200 |
1950 |
25-90 |
75/90 |
|
LW800-2560 |
800 |
2560 |
2000 |
1800 |
30-100 |
90/132 |
|
LW800-3200 |
800 |
3200 |
2000 |
1800 |
30-110 |
90/132 |
|
LW900-3200 |
800 |
3200 |
1800 |
1650 |
30-150 |
132/200 |
2 Phase Decanter Centrifuges Technical
All contact parts can be made by SS304/SS316L/Duplex Steel 2205 Automatic adjustment of differential speed via VFD,Siemens PLC Spiral : Surfacing welding tungsten carbide grinding
Two motor drive
Approximately 80 to 90% of the oil is recovered
Low labor costs due to continuous and automatic operation
Highest g-force for higher solids output
Belts for both primary motor and secondary
NSK/SKF Bearing
2 Phase Decanter Centrifuges Features
Low noise, its vibration intensity is less than 4.5, and the running noise of the machine is less than 85dB (A)
High Speed up to 3600RPM & Variable Speed by frequency converter
The main body of the decanter centrifuge made from stainless stee: SS304/SS316/Titanium Alloy
The screw propeller made from stainless steel (SS304/SS316) protected by Tungsten carbide alloy or Ceramic
Solids discharge stainless steel protected by high-chromium iron
Solids Liquid separation system package available
Germany FAG/SKF brand bearings
Eletrical Components: SIEMENS/Schneider/ABB
All the seals of the machine are imported , adopting the Taiwan TTK brand
2 Phase Decanter Centrifuges Application
Vegetable oil
Citric acid
Waste oil purification
Washing water purification
Distiller's grains
Animal fat
Blood meal
Power plant sludge
Printing and dyeing sludge
