| Place of Origin: | China |
|---|---|
| Brand Name: | dagyee |
| Certification: | M.2020.206.C9739 |
| Model Number: | DLC-050 |
| Minimum Order Quantity: | 1 SET |
| Price: | CUSTOM |
| Packaging Details: | Wooden case, standard container, can be specified |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 10 SET |
| Material: | Carbon Steel Or Stainless Steel 304/316 | MOQ: | 1 Set |
|---|---|---|---|
| Colour: | Customizable |

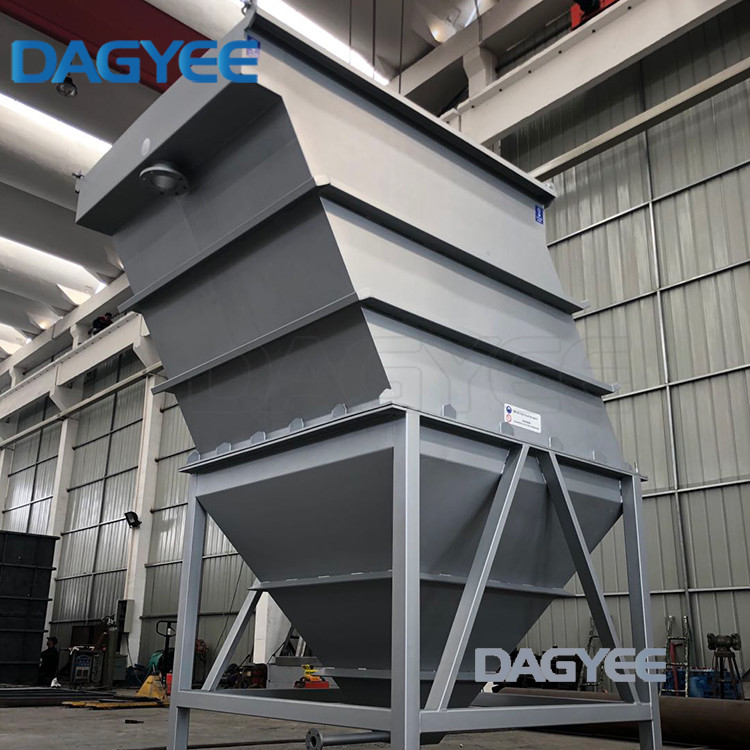

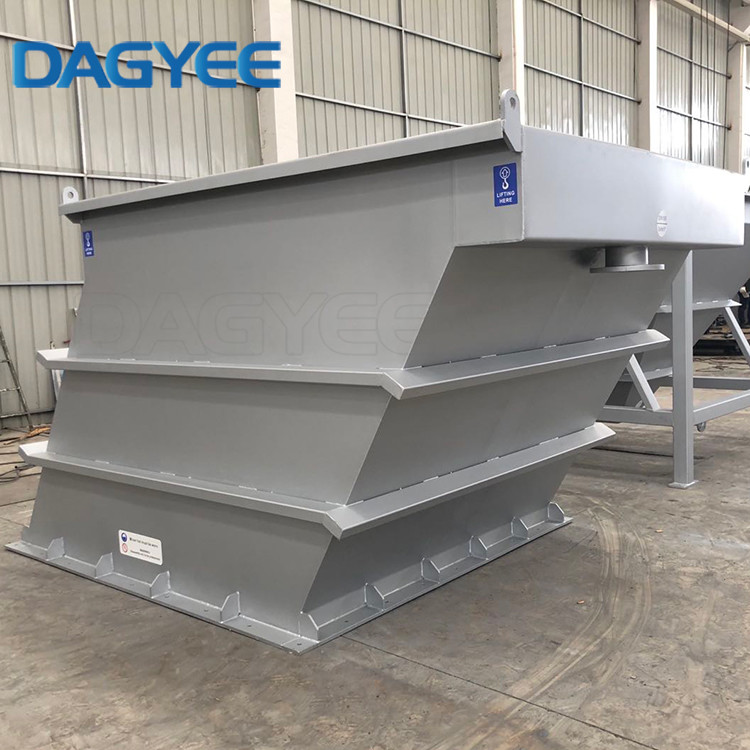

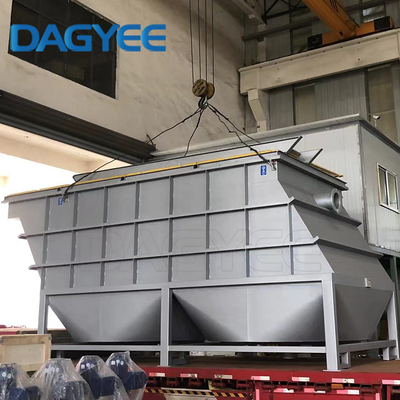

Lamella Separator Description
Dagyee offer reliable liquid/solid separation for potable and municipal wastewater treatment plants, chemical industries, metal finishing, metallurgical industries, pulp and paper mills, power plants, and industrial process makeup water applications.
Depending on effluent requirements, filtration may be advantageous, and Sepratech suggests dewatering with a rotary drum thickener or filter press.
Available Options
Structural steel support legs
Epoxy painted carbon steel tank
Individually removable FRP plates
Adjustable effluent weir plates
Standard units can be manufactured for flows from 5 gpm to 3000 gpm and above in a single above-grade tank
One-piece prefabricated units
Are available with up to 1000 sqft of effective settling area
Single tank construction with integral flash mix/flocculation compartments for smaller units
Multiple sample connections
Lamella Separator Model
DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.
DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.
DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.
|
DLC |
Capacities |
Piping Connections() |
Physical Dimensions(m) |
|||||
|
Inlet(a) |
Effluent(b) |
Sludge(c) |
Backwash(d) |
L |
W |
H |
||
|
DLC- |
5 |
80 |
80 |
50 |
50 |
2.55 |
1.6 |
2.9 |
|
DLC- |
10 |
100 |
100 |
50 |
50 |
3.35 |
1.82 |
3 |
|
DLC- |
15 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
DLC- |
20 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
DLC- |
30 |
150 |
150 |
50 |
50 |
4.2 |
2.22 |
3 |
|
DLC- |
40 |
150 |
150 |
50 |
50 |
4 |
2.8 |
3 |
|
DLC- |
50 |
200 |
200 |
50 |
50 |
4.65 |
2.82 |
3 |
|
DLC- |
60 |
200 |
200 |
50 |
50 |
4.7 |
3 |
3 |
|
DLC- |
70 |
250 |
200 |
50 |
50 |
6.4 |
2.6 |
3 |
|
DLC- |
80 |
250 |
200 |
50 |
50 |
6.8 |
2.82 |
3 |
|
DLC- |
100 |
250 |
250 |
50 |
50 |
7.05 |
3.02 |
3 |
Lamella Separator Advantages
More compact size than the classic silo
Increased performance in terms of lt./min. and water clarity
No maintenance required thanks to the innovative self-cleaning system
Eliminates the expensive construction of settling pits
Reduces and optimizes the cost of mud disposal
Structure in galvanized Iron
Lamella Separator Applications
Water following physical-chemical treatment.
Tailings in mining and metallurgical beneficiation.
Solutions from gold leaching processes.
Wet scrubbing effluents.
Effluent treatment in pulp and paper mills.
Filter backwash.
