| Condition: | New | Product Name: | Combined Wastewater Pre-treatment Unit |
|---|---|---|---|
| Housing Materials: | Ss304, 316, 316L | Size: | 4200*1200mm |
| Surface Treatment: | Polished & Sandblast | Warranty: | 1 Year |
| Type: | Water Treatment Machine |

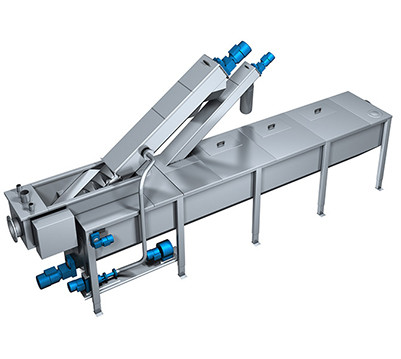

Compact Units Pretreatment Plants For Wastewater Treatment Description
Combined pretreatment system is an answer to the high civil works costs and large footprint required to execute complete pretreatment systems in concrete, screening channel, sedimentation tanks and hoppers FOG removal. The DAGYEE system is a state-of-the-art combined pretreatment system designed to optimally perform all the effluent pretreatment function, screening, grit removal, FOG removal, in a single stainless steel machine.
The DAGYEE range consists of for screening and grit removal and the for screening, grit removal and FOG removal.
Generally supplied with the CFC Screw Screen, but in special execution it is also possible to provide it with the auger rotating drum screen, the step screen, the sub-vertical bar screen, or the perforated plate and brush screen.
Combined Screening Component
Dependable, complete and compact unit
performing the following process steps:
Fine screening
Screenings dewatering
Grit separation
Grit dewatering
Grease separation and removal (optional)
Combined Screening Working Principle

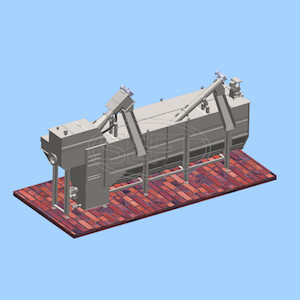

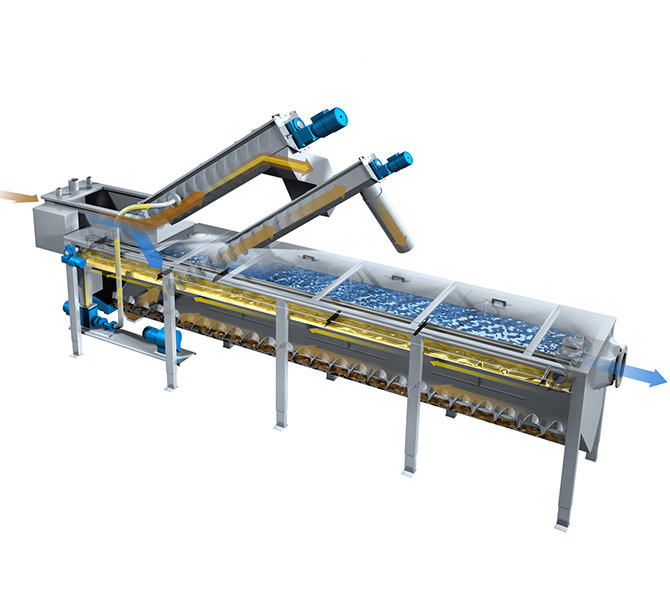

Combined unit for wastewater pretreatment Introduce sewage treatment plants. they perform Fine screening, grit removal and optional grease removal.Wastewater passes through spiral screen, solids Materials larger than the mesh size,The size is captured and removed from the system. they are compaction at the end of the screen conveyor before unloading.
The wastewater flows into the sedimentation tank. finer solid matter still present in wastewater Settled in a tank and conveyed to a hopper by a horizontal screw conveyor is placed at the bottom of the tank. OneInstallation of inclined screw conveyor for sand removal conveying the sand accumulated in the hopper,Drain into a container. filtered water leaves The system passes through an outlet tube placed on the upper level.Grease removal unit can be integrated into DAGYEE combination units are available upon request.

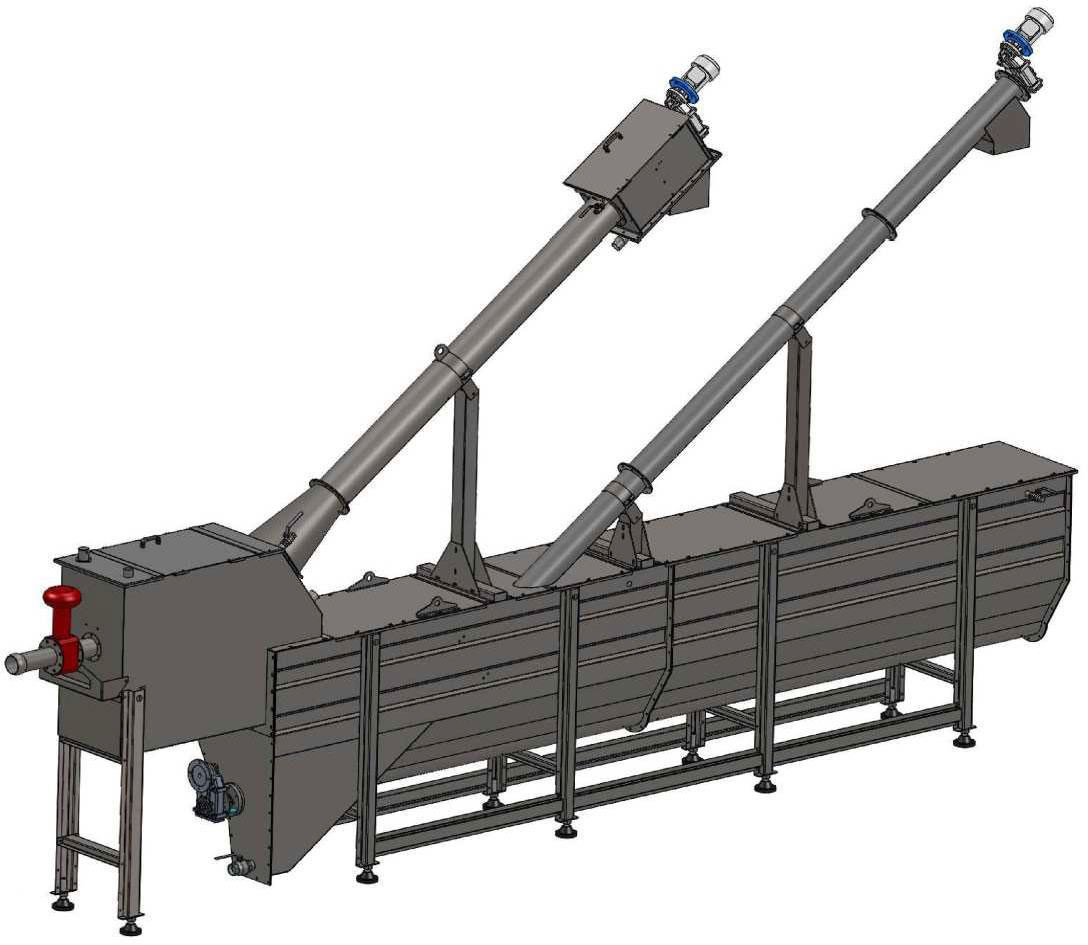

The wastewater firstly enters the tank where a screw screen is placed.
Big size solid materials are filtrated by the screw screen and a screw conveyor moves the solid materials captured up to the discharge point. At the end of the conveyor, they are pressed by the compaction unit before discharge.
The water which has still solid materials in smaller sizes flows through the sedimentation tank. The particles are settled by time and a horizontal screwconveyor transports them to the collection hopper.
Finally, they are conveyed by the grit removal screw conveyor to the discharge point.
Combined Screening Parameter
|
Power Specifications |
||||||
|
Model |
Capacity (m3/h) |
Tank Length(mm) |
Tank Width(mm) |
Inlet Flange DN |
Outlet Flange DN |
Max.Wash Water(L/S) |
|
DSP-30 |
30 |
4200 |
1200 |
DN200 |
DN200 |
0.5 |
|
DSP-50 |
50 |
5800 |
1200 |
DN200 |
DN200 |
0.5 |
|
DSP-100 |
100 |
7000 |
1200 |
DN250 |
DN250 |
1 |
|
DSP-150 |
150 |
7000 |
1200 |
DN250 |
DN250 |
1 |
|
DSP-200 |
200 |
8000 |
1500 |
DN300 |
DN300 |
1 |
|
DSP-250 |
250 |
8500 |
1500 |
DN350 |
DN350 |
1 |
|
DSP-350 |
350 |
10000 |
1500 |
DN400 |
DN400 |
1 |
|
DSP-400 |
400 |
12000 |
1800 |
DN500 |
DN500 |
1 |
|
DSP-500 |
500 |
15000 |
2000 |
DN500 |
DN500 |
1 |
| Power Specifications | ||||
| Model | Screw Screen Power(kw) | Screw Conveyor Power(kw) |
Grit Removal
Power(kw)
|
Grease Removal
Power(kw)
|
| DSP-30 | 0.55 | 0.25 | 0.37 | 0.18 |
| DSP-50 | 0.55 | 0.35 | 0.37 | 0.18 |
| DSP-100 | 0.75 | 0.37 | 0.55 | 0.18 |
| DSP-150 | 0.75 | 0.37 | 0.55 | 0.18 |
| DSP-200 | 0.75 | 0.55 | 0.75 | 0.18 |
| DSP-250 | 1.1 | 0.55 | 0.75 | 0.18 |
| DSP-350 | 1.1 | 0.55 | 0.75 | 0.18 |
| DSP-400 | 1.1 | 0.55 | 0.75 | 0.18 |
| DSP-500 | 1.1 | 0.55 | 1..1 | 0.18 |
Combined Screening Features
Compact design
No odour or clogging problems
Low investment cost
Low maintenance and operation costs
No civil works required
Easy to install and operate
Volume reduction of the washed out solid
Low residual organic content in the washed out solid
Combined Screening Applications
Small sewage treatment works
Municipal wastewater treatment plants
Industrial wastewater treatment plant
Combined Screening Functions
Screening
Washing/compacting of solid removed
Sand/grit separation
Degreasing
Main advantages
Odor-free
No clogging
Low maintenance and operation costs
Low room needed
No construction works needed
Easy to install and operate
Very low residual organic content in the washed out solid
Volume reduction (up to 40%) of the washed out solid
