| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DL131 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type:: | New Product 2020 |
|---|---|---|---|
| Material: | Standard Wooden Box | Weight: | 2100 Kg |
| Size: | 4100*1600*2200 | Function: | Filtering Suspended Matter |
| Advantage: | No Clogging | Color: | Customizable |

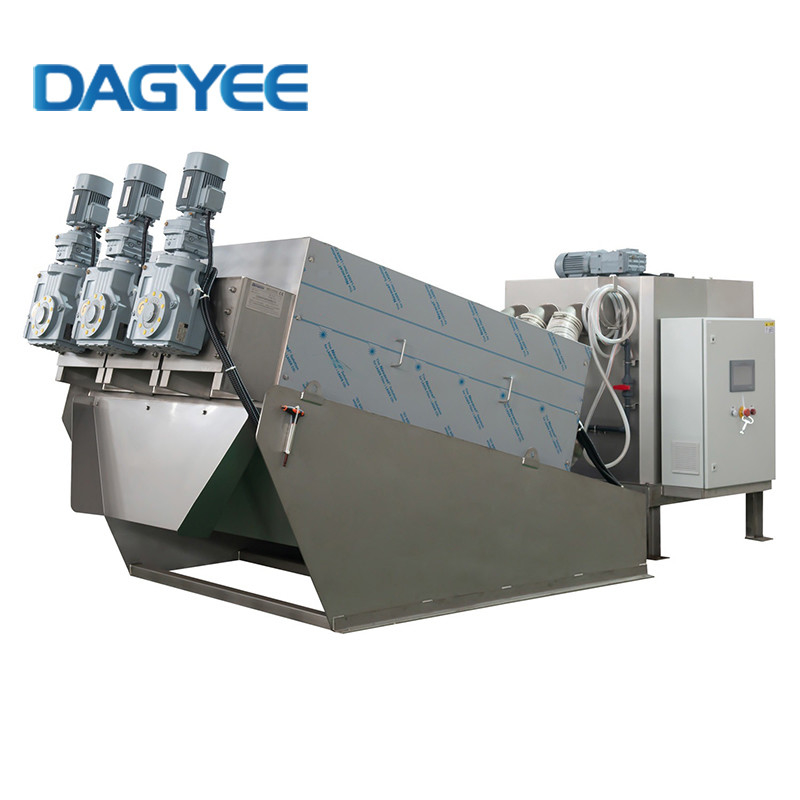

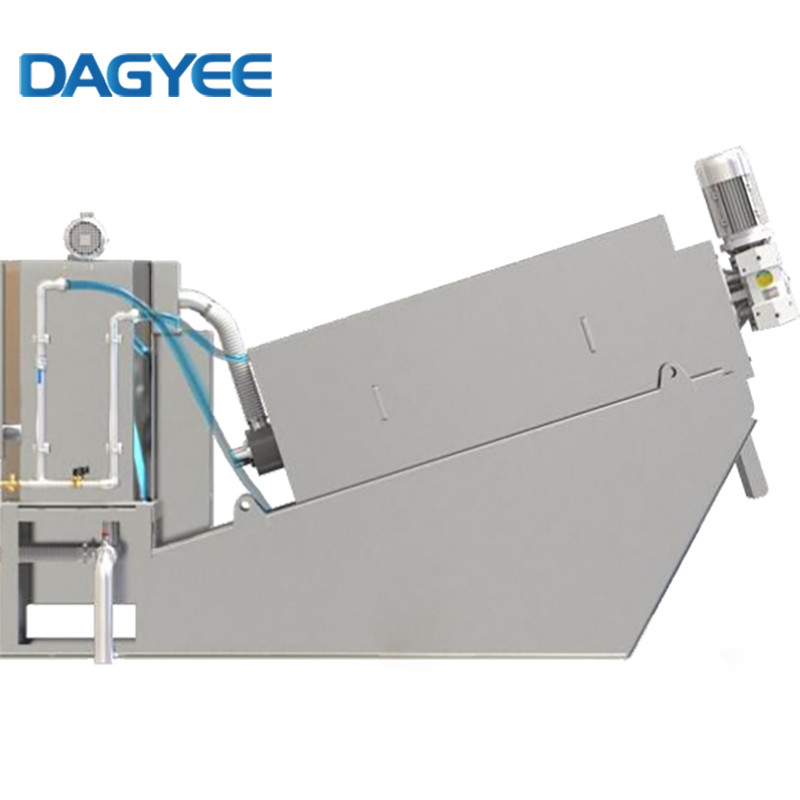

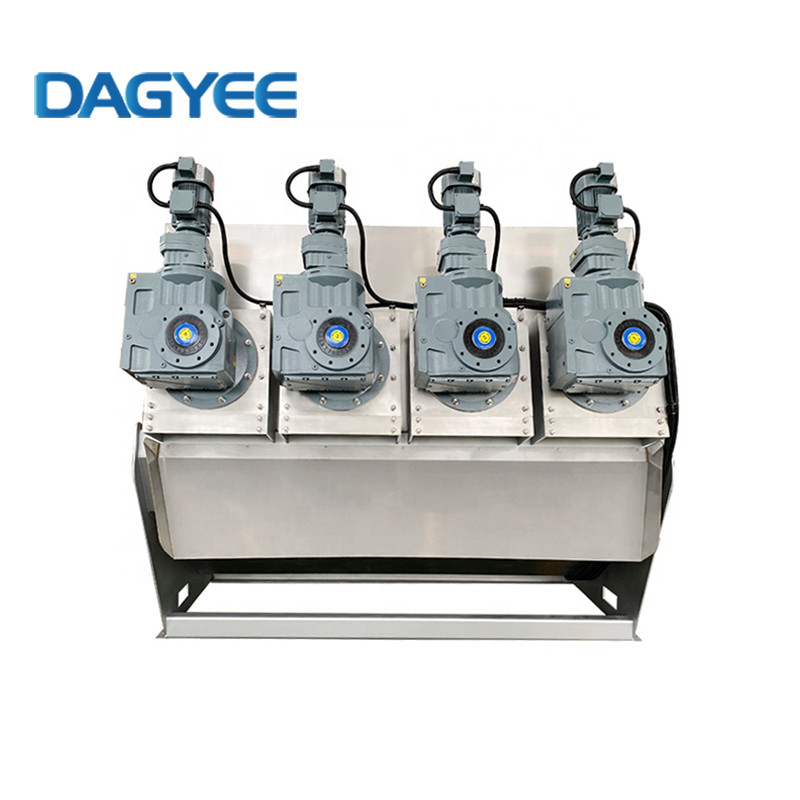

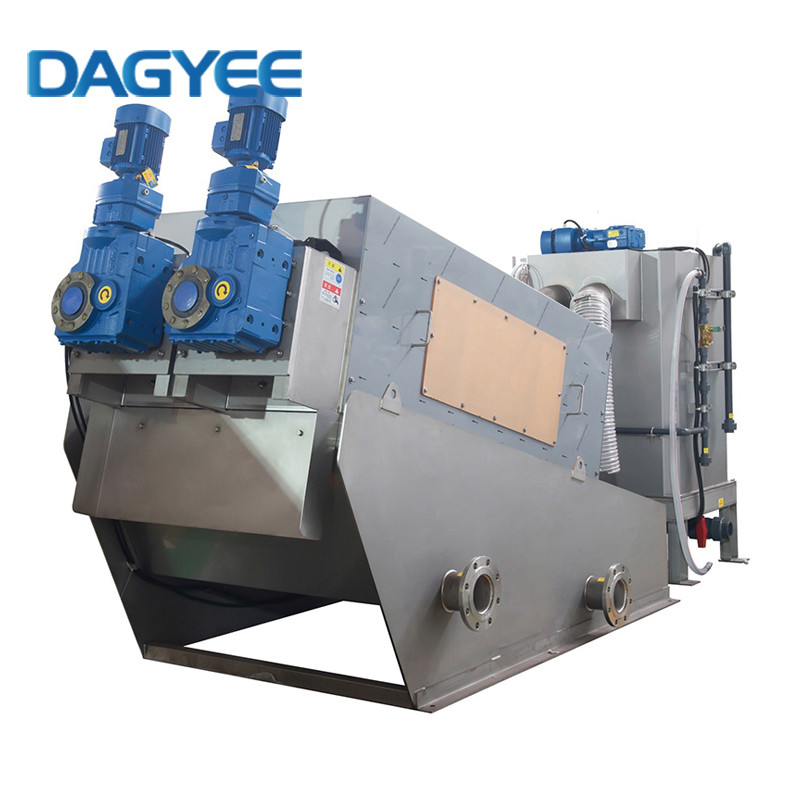

Sludge Dehydrator Description
DAGYEE Multi-disc screw press dehydrators can cope up with a wide range of sludge concentrations from 0.2% to 10%, and also stably can dewater sludge that has high oil content.
Sludge dewatering is the process of separation of components of solid and liquid sludge to minimize the sludge disposal.
There are many techniques available for sludge dewatering which includes drying beds Filter press, Belt press, decanter,centrifuge & latest & advanced being Sludge dewatering press.
Sludge Dehydrator Process
Thickening: When the shaft is driven by the screw, moving rings around the shaft move up and down relatively. Most water is pressed out from the thickening zone and fall down to the filtrate tank for gravity;
Dewatering: The thickened sludge moves forward continuously from the thickening zone towards the dewatering zone. With the pitch of the screw shaft thread getting narrower and narrower, the pressure in the filter chamber increases higher and higher. In addition to the pressure generated by the back-pressure plate, the sludge is greatly pressed and dryer sludge cakes produce;
Self-cleaning: The moving rings rotates continuously up and down under the pushing of the running screw shaft while the gaps between the fixed rings and moving rings are cleaned to prevent from clogging that happens frequently for traditional dewatering equipment.
Sludge Dehydrator Model
|
Model |
DL131 |
|
DS capacity kg/h |
6-10 kg/h |
|
Sludge capacity m3/h(2-50g/L) |
0.2-3 |
|
Spiral diameter mm |
￠130*1 |
|
Discharge Distance mm |
250 |
|
Size L*W*H mm |
1969*756*1040 |
|
Net.Kg |
220 |
|
Run Kg |
315 |
|
Power Kw |
0.36 |
|
Washing Q L/h |
24 |
Sludge Dehydrator Widely Use
Applicable sludge concentration of 2000mg/L-50000mg/L.
Most especially for the oily sludge.
Fully Automatic Control
Combining with the auto control system, the machine runs very safely and simply and can be programmed according to the requirement of the users. It can operate automatically for 24 hours, unmanned.
Sludge Dehydrator Features
No secondary pollution
The screw shaft rotational speed about 2~3r/min, no vibration and noise is very small
Only need a small amount of water for self-cleaning, no secondary water pollution
Sludge runs at a slow operating condition. The smell does not spread
Sludge Dehydrator Application
Simple arrangement
Low Power Consumption
Simple and short start-up and shut down procedures
Continuous operation. Hence continuous output can be obtained
Process can be automized
Only electricity and water supply for cleaning is required, and that too in less amount
For a multi-channel machine, one or more channels may be removed for maintenance purposes, while the machine with the remaining channels may still be operated
No clogging. Cleaning is automized and is easy
Long life of discs
No external lubrication system is required
Flocculator built in the Screw press
