| Place of Origin: | China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DLS |
| Minimum Order Quantity: | 1 set |
| Price: | 999-9999 |
| Packaging Details: | Wooden packing |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |
| Material: | Q345/SS304/SS316L | Keywords: | Customized Shaftless Screw Conveyor |
|---|---|---|---|
| Drive: | 0.55 KW |

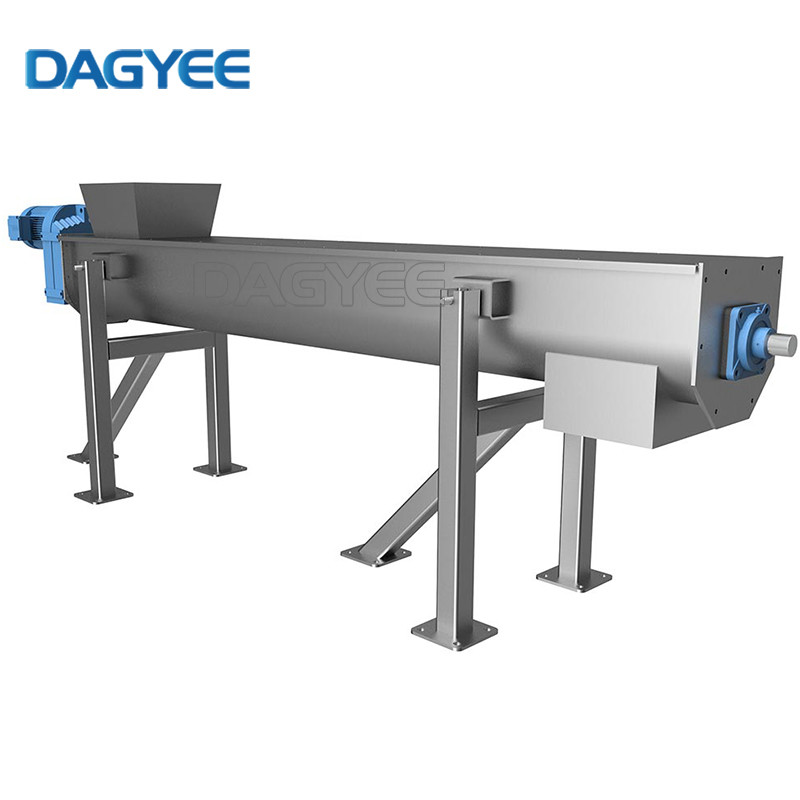

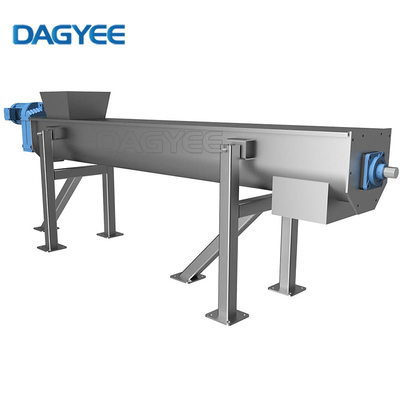

Shaftless Screw Conveyor Description
Shaftless Screw Conveyors are designed to handle almost any bulk material, from dry and free-flowing to sticky and sluggish. Shaftless screw conveyors are ideal for bulk materials with high moisture content that have a tendency to adhere to the center pipe of a conventional shafted screw conveyor.
Shaftless Screw Conveyor Structure

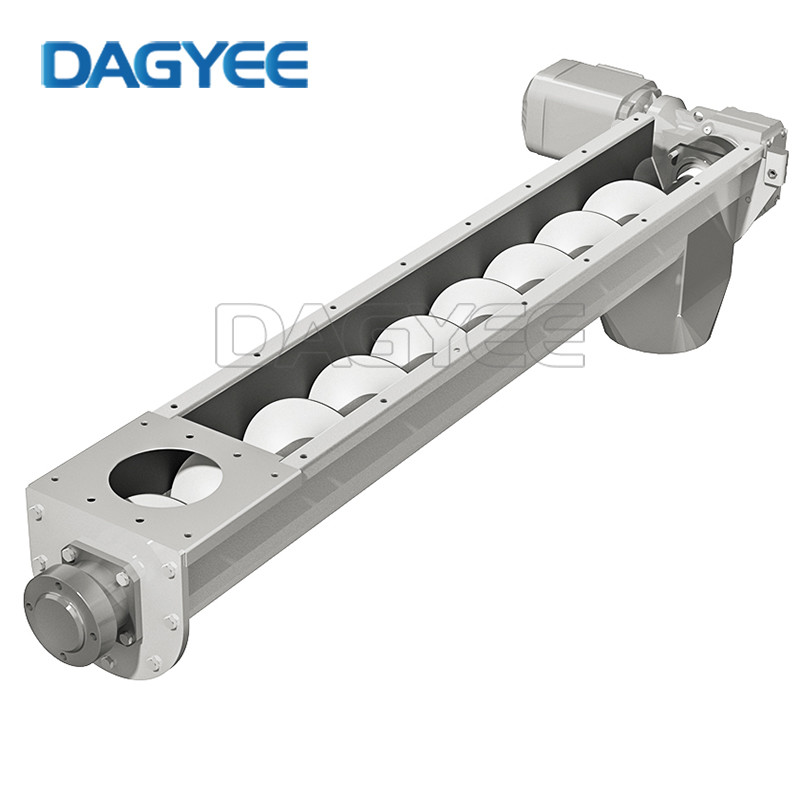

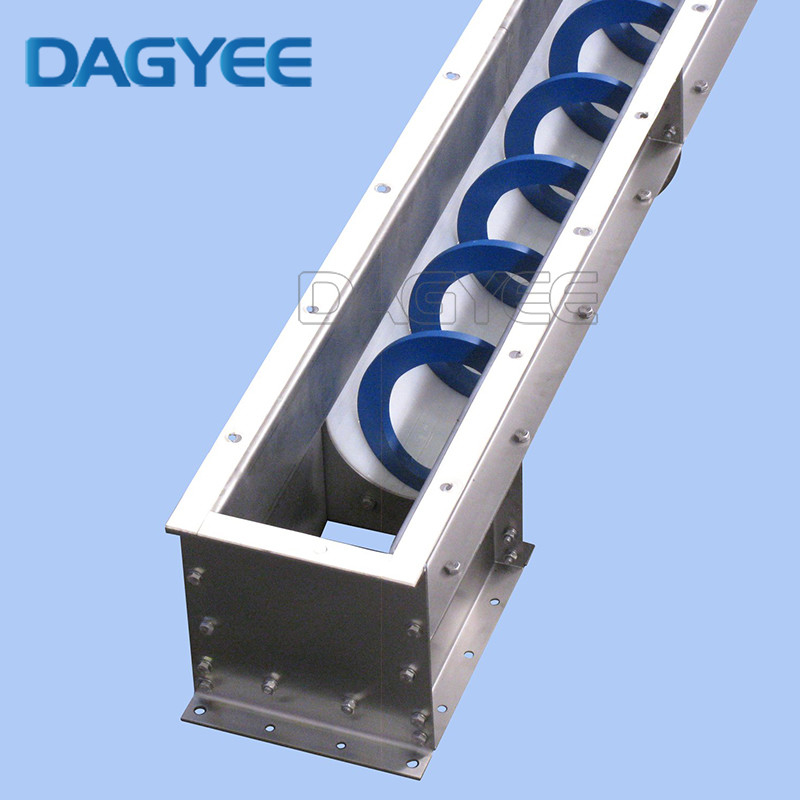

Shaftless screw conveyor is mainly composed of shaftless screw, U-shaped spiral groove, cover plate, lining plate, inlet and outlet, discharge outlet and driving device.
Shaftless Screw Conveyor Type
Single shaftless screw conveyor screw shaft, without mixing and stirring functions.
Twin shaftless screw conveyor It adopts double screw blades with mixing and stirring functions. The two screw blades rotate in opposite directions to avoid material blocking. The conveying capacity is 1.5-2 times that of a single shaft.

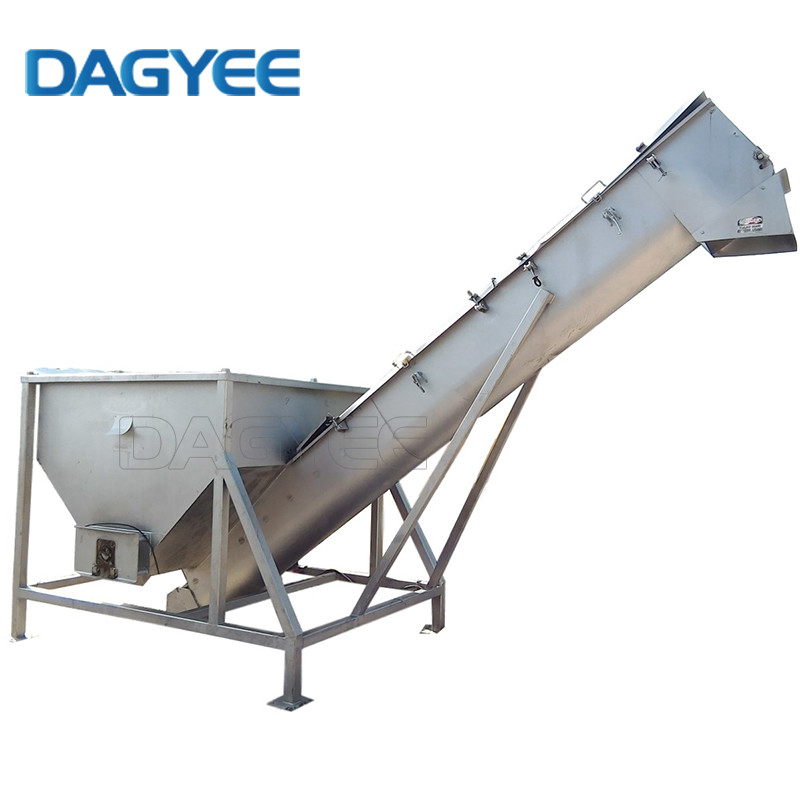

Inclined shaftless screw conveyor mainly used for conveying materials at a small angle of 25°.
Shaftless Screw Conveyor Technical
|
DLS |
Capacities |
Length |
Speed |
Size |
||||
|
00 |
150 |
300 |
(m) |
(r/min) |
A(mm) |
B(mm) |
B0(mm) |
|
|
DLS200 |
2 |
1.4 |
0.9 |
10 |
20 |
200 |
310 |
270 |
|
DLS260 |
3.5 |
2.5 |
1.5 |
10 |
20 |
260 |
370 |
340 |
|
DLS320 |
9 |
6.5 |
4.1 |
15 |
20 |
320 |
430 |
400 |
|
DLS355 |
11.5 |
7.8 |
5.5 |
20 |
20 |
355 |
465 |
435 |
|
DLS420 |
15 |
11 |
7.5 |
20 |
20 |
420 |
530 |
500 |
|
DLS500 |
30 |
25 |
21 |
20 |
20 |
500 |
560 |
680 |
Shaftless Screw Conveyor Benefits
Simple design (few components)
Small footprint
Odor-free operation high efficiency completely empty
Highly self-cleaning
Easy to access and clean low maintenance
Modular components can be easily adapted to a variety of problems (multi-purpose conveyor for a variety of difficult materials and high volume applications)
Shaftless Screw Conveyors VS Shafted Screw Conveyors
Conveying materials
Shaftless is suitable for conveying sludge, household garbage, grid slag and other viscous, entangled materials and massive materials. It is precisely because the design of the shaftless screw conveyor without a central axis has great advantages for these materials.
The shaft screw conveyor is suitable for conveying materials: powder, small particle materials, etc. If you convey viscous
materials such as sludge, it will stick to the inner tube shaft and blades, and the conveying block materials are easy to jam.
Conveying form
Shaftless screw conveyor is suitable for: horizontal conveying, and the large inclination angle should not exceed 20°, according to the actual usage.
The shaft screw conveyor is suitable for: horizontal conveying, inclined conveying, and vertical conveying.
Conveying capacity
Due to the use of shaftless, the single-machine conveying length of the shaftless screw conveyor can reach 60 meters, and the conveying capacity is 1.5 times that of the traditional shafted screw conveyor with the same diameter.
Shaftless Screw Conveyors Application
Shaftless Screw (Spiral) Conveyors are specially designed for handling difficult, heterogeneous materials such as urban solid waste, screenings and floating matter, de-watered, thickened, conditioned sludge, packaged food, creams or pastes, as well as waste from: meat, fish, fruit and vegetable processing. The main sectors of application are: wastewater treatment, sugarhouse rejects, fish industry, solid waste treatment, fruit and vegetable processing, beverage industry, pulp and paper, chemicals, food industry in general, meat processing plants, abattoirs/ slaughterhouses, restaurants, canteens, catering in general.
