| Place of Origin: | China |
|---|---|
| Brand Name: | dagyee |
| Certification: | M.2020.206.C9739 |
| Model Number: | DLC-050 |
| Minimum Order Quantity: | 1 SET |
| Price: | CUSTOM |
| Packaging Details: | Wooden case, standard container, can be specified |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 10 SET |
| Material: | Carbon Steel Or Stainless Steel 304/316 | MOQ: | 1 Set |
|---|---|---|---|
| Colour: | Customizable |

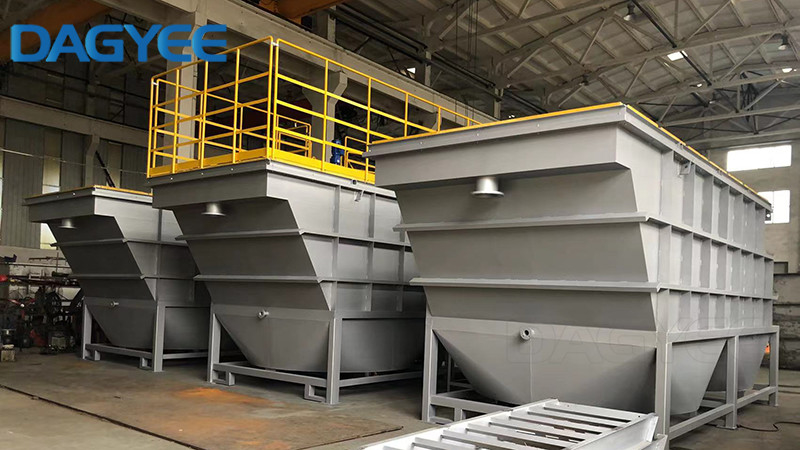

Lamella Separator Description
Lamella Clarifier is fitted with a plate pack to maximise the effective settling area of the unit and a conical sludge hopper in a small footprint. Lamella clarifiers are ideal for applications where the solid loading is variable and solid sizing is fine. Lamella Clarifiers are considered to be one of the best options for pre-treatment ahead of more sophisticated treatment technologies because of their ability to remove a significant solids loading. The MAK Water Lamella Clarifier can be integrated into a treatment process or as a stand-alone unit. Typical applications are for separation of grit or metal removal or any other application where the solids have a specific gravity >1.0.
Influent raw water characteristics, the lamella clarifier is proven to provide effective sedimentation, even with raw water turbidities of several thousand ntu.
Available Options
Lamella Separator Model

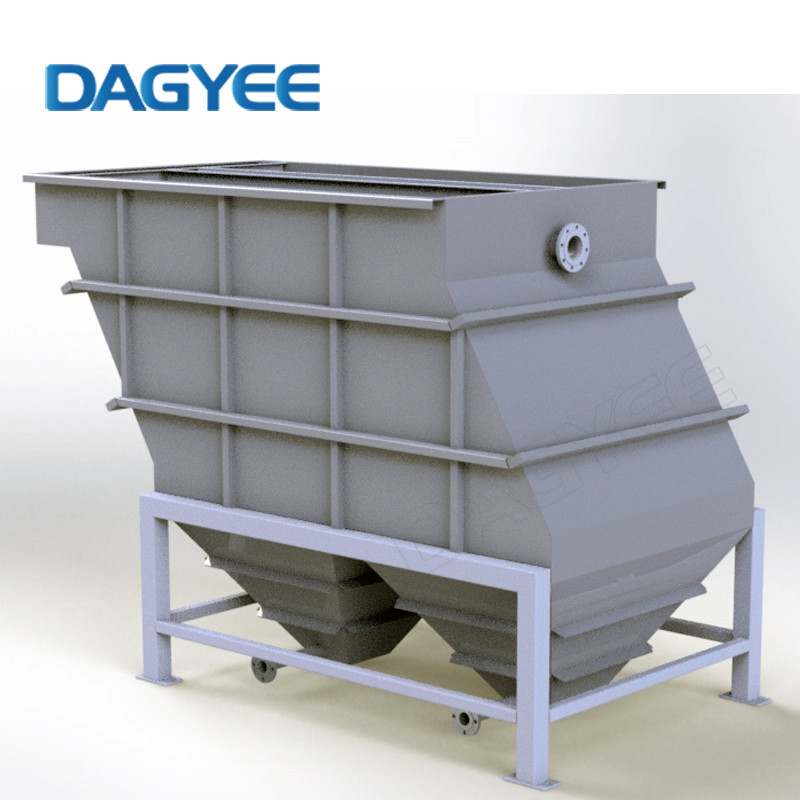

DLC-I Gravity Lamella, V shape mud bucket, simple structure, no energy consumption.

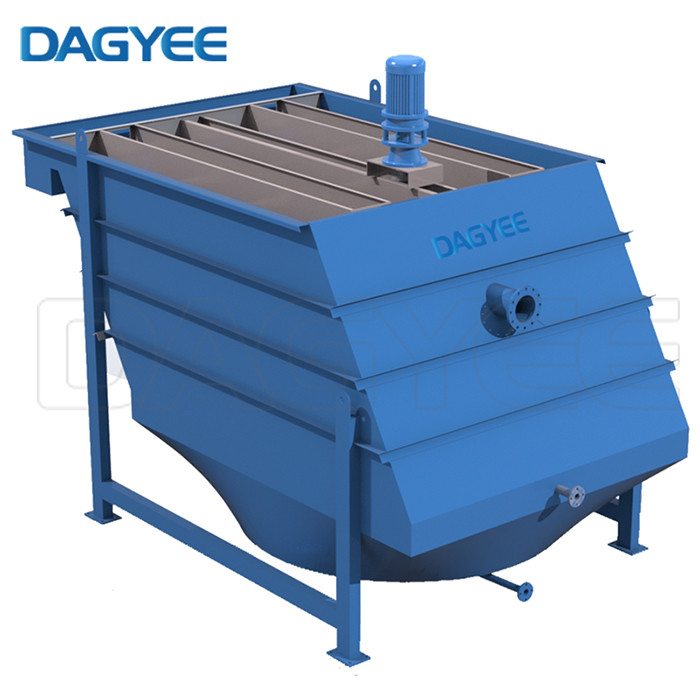

DLC-II Lamella with scraper, Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.
DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.
|
DLC |
Capacities |
Piping Connections() |
Physical Dimensions(m) |
|||||
|
Inlet(a) |
Effluent(b) |
Sludge(c) |
Backwash(d) |
L |
W |
H |
||
|
DLC- |
5 |
80 |
80 |
50 |
50 |
2.55 |
1.6 |
2.9 |
|
DLC- |
10 |
100 |
100 |
50 |
50 |
3.35 |
1.82 |
3 |
|
DLC- |
15 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
DLC- |
20 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
DLC- |
30 |
150 |
150 |
50 |
50 |
4.2 |
2.22 |
3 |
|
DLC- |
40 |
150 |
150 |
50 |
50 |
4 |
2.8 |
3 |
|
DLC- |
50 |
200 |
200 |
50 |
50 |
4.65 |
2.82 |
3 |
|
DLC- |
60 |
200 |
200 |
50 |
50 |
4.7 |
3 |
3 |
|
DLC- |
70 |
250 |
200 |
50 |
50 |
6.4 |
2.6 |
3 |
|
DLC- |
80 |
250 |
200 |
50 |
50 |
6.8 |
2.82 |
3 |
|
DLC- |
100 |
250 |
250 |
50 |
50 |
7.05 |
3.02 |
3 |
Lamella Separator Advantages
Unit is Completely Assembled
Low Installation
Conservative Design 0.2 GPM/Ft2
Completely Automatic, Gravity in Gravity Out
Reduced Floor Space
Large Compartment Flocculation Tanks with Mixer for Extra Retention Time (approximately 50-60 minutes)
Lamella Separator Applications
Extremely smooth surface (mud does not stick)
High resistance to shocks (stages of loading, unloading, assembly)
Excellent hardness values, stiffness, elasticity and tensile strenght
Resistance to breakage from mechanical stress
Abrasion resistance
Excellent electrical and thermal insulating properties
Unassailable to chemical agents
No water absorption
