| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | ISO |
| Model Number: | LW450-1800 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate with buyers |
| Packaging Details: | Decanter Centrifuge 2300*700*1300 Standard wooden box, container |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 set per month |
| Keywords: | Alumina Decanter Centrifuge | Material: | 304 316L |
|---|---|---|---|
| Capacity:: | 5-20 M3/h | Application: | Processing Sludge Dewatering WWTP |

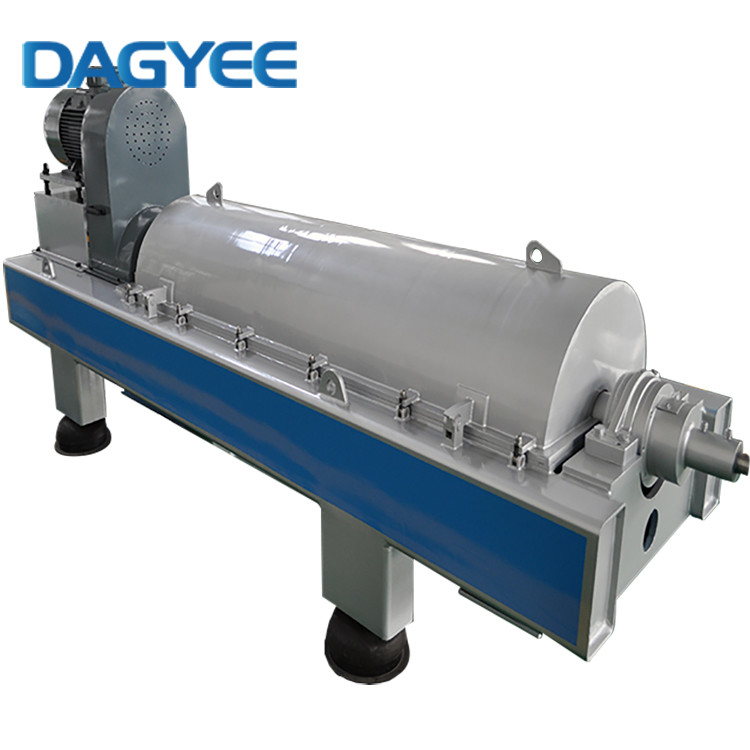

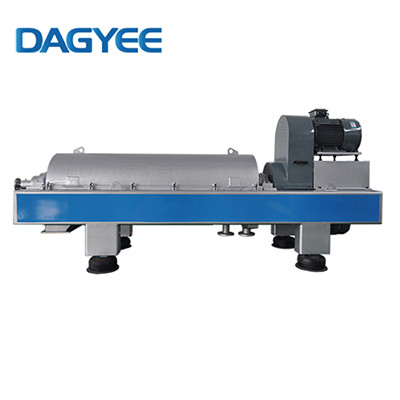

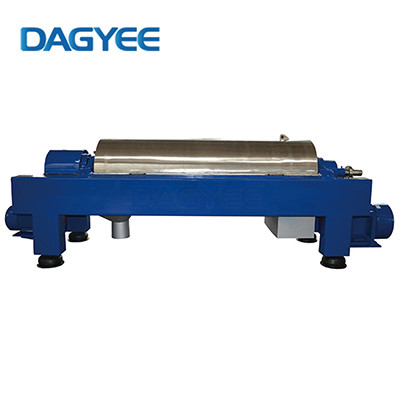

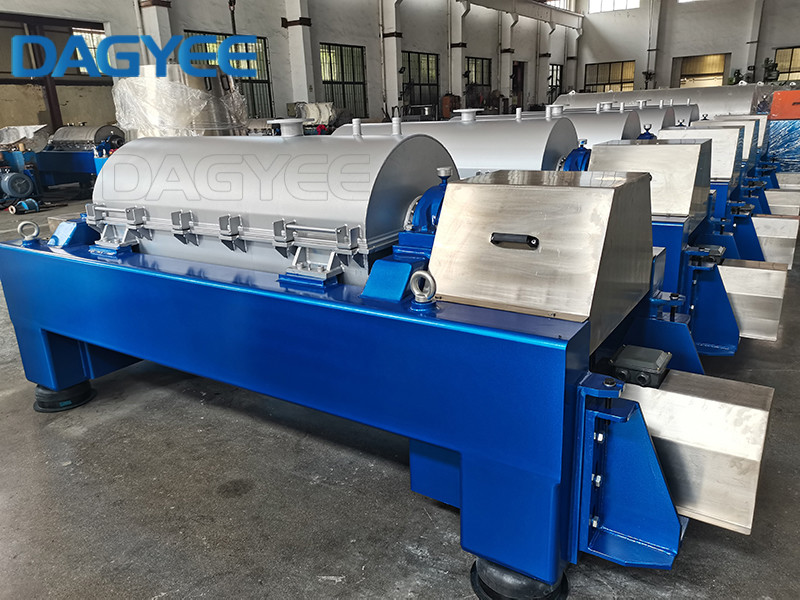

2 Phase Decanter Centrifuges Description
The LW decanter separator is suitable for plant oil,( such as palm oil, coconut oil, olive oil separation ,) animal oil(such as fish oil, restaurant garbage ect) fish meal, coal tar dehydration and slag, adapted to the different viscosity and water content in coal tar separation (emulsion), after separating the tar reach national standard.
2 Phase Decanter Centrifuges Model
|
Model |
Drum diameter mm |
Length mm |
Maximum speed rpm |
Hightest separation factor g |
Mixture capacity m3/h |
Motor Power Kw |
|
LW250-900 |
250 |
900 |
5000 |
3500 |
0.5-3 |
11/5.5 |
|
LW350-1500 |
350 |
1500 |
3800 |
2850 |
1-5 |
18.5/5.5 |
|
LW400-1200 |
400 |
1200 |
3400 |
2581 |
1-8 |
22/7.5 |
|
LW400-1600 |
400 |
1600 |
3400 |
2581 |
2-10 |
22/7.5 |
|
LW400-1800 |
400 |
1800 |
3400 |
2581 |
2-12 |
22/7.5 |
|
LW450-1800 |
450 |
1800 |
3200 |
2572 |
5-20 |
30/7.5 |
|
LW450-2000 |
450 |
2000 |
3200 |
2572 |
5-25 |
30/7.5 |
|
LW530-2280 |
530 |
2280 |
2800 |
2350 |
10-50 |
45/15 |
|
LW600-2400 |
600 |
2400 |
2600 |
2265 |
15-65 |
55/18.5 |
|
LW650-2600 |
650 |
2600 |
2400 |
2100 |
20-80 |
55/90 |
|
LW720-2500 |
720 |
2500 |
2200 |
1950 |
25-90 |
75/90 |
|
LW800-2560 |
800 |
2560 |
2000 |
1800 |
30-100 |
90/132 |
|
LW800-3200 |
800 |
3200 |
2000 |
1800 |
30-110 |
90/132 |
|
LW900-3200 |
800 |
3200 |
1800 |
1650 |
30-150 |
132/200 |
2 Phase Decanter Centrifuges Technical
All contact parts can be made by SS304/SS316L/Duplex Steel 2205 Automatic adjustment of differential speed via VFD,Siemens PLC Spiral : Surfacing welding tungsten carbide grinding
Two motor drive
Approximately 80 to 90% of the oil is recovered
Low labor costs due to continuous and automatic operation
Highest g-force for higher solids output
Belts for both primary motor and secondary
NSK/SKF Bearing
2 Phase Decanter Centrifuges Features
Continuous working,spiral discharging,high capacity.
Controlled by two motors,rovolving drum can be adjustable two stage separately.
Wide applicability for chemical,oil,foodstuff,pharmacy industries and green industry in which solid-liquid separation is required.
Suitable for various products,capable for separating wide ranging solid phase grains(0.002-2mm),especially when separating solid phase has different size grains.
2 Phase Decanter Centrifuges Application
Waste water treatment
Food processing
Waste recycling
Fish processing
Beneficiation
Organic Chemicals
Inorganic chemical industry
Polymer industry
Chemicals
