| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DW600-3000 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type:: | New Product 2020 |
|---|---|---|---|
| Material: | SUS304,316 | Product Keywords: | Mechanical Fine Screen |
Mechanical Fine Screen Description
The inflow non-metal perforated grid can be converted into mechanical or electrical energy by internal combustion engines or fuel cells. The underwater moving parts of the grille are all stainless steel and do not require regular maintenance, but the mechanical transmission parts and reducer must be regularly inspected and filled with lubricating oil or grease. Longer waiting time for some biomacromolecules to dissolve organic compounds.
The installation angle of the inner inflow grille is 60°~80°, and the spacing between the grilles before sewage treatment is set as follows: manual removal is 25~40mm, mechanical removal is 16~25mm, and the large gap is 40mm. The inner inflow grille workbench must be equipped with flushing and safety facilities, and be at least 0.5m higher than the design high water level in front of the grille to ensure there is room for operation.
Mechanical Fine Screen Composition
Parts of the fine grille of the inner inflow mesh plate frame;
Drive System;
Stencil System;
backwash system;
Division system and Electronic control system;
The geared motor drives the sprocket to rotate. The sprocket drives the mesh plate to rotate continuously; the sewage enters the grille from the water inlet, and passes through the mesh plate to overspeed. The water flows to the outside of the screen plate, and the dirt is left on the inner surface of the same plate. With the continuous rotation of the screen plate, it helps to the original part: the backwash system flushes the outside of the screen plate, and the dirt is washed to the receiving channel under the action of the flushing water. Feel free to check the flushing water from the well to the sewage outlet.

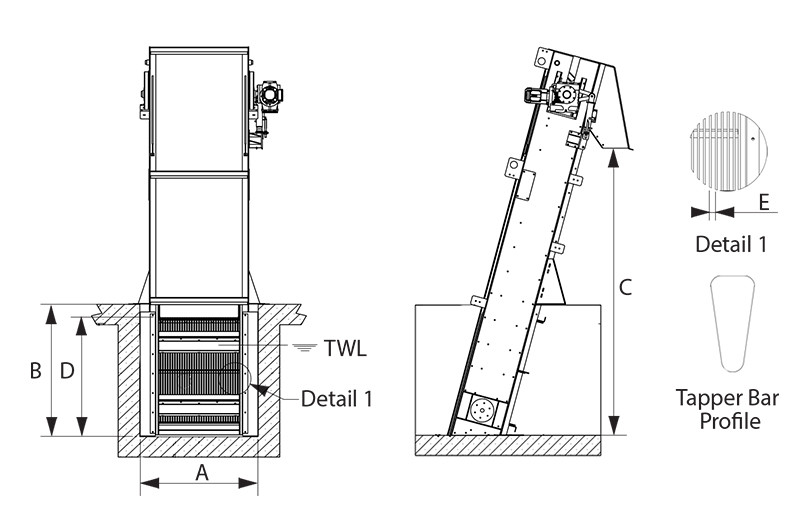

Mechanical Fine Screen Parameter
|
Grid width A(mm) |
600-3000 |
|
Grid well width (mm) |
A+100 |
|
Effective filter width (mm) |
A-150 |
|
Grid well depth H(mm) |
1.5-4 |
|
Installation angle ° |
60-80 |
|
Mesh diameter (mm) |
2 3 5 6 8 10 |
|
Running speed (m/min) |
Less than 3 |
|
Main drive power (KW) |
0.75-3 |
|
Cleaning power (KW) |
0.37-0.75 |
|
Cleaning pressure (Mpa) |
More than 0.3 |
|
Design maximum water level difference (m) |
1.0 |
|
Capacity Mesh diameter with 3mm (m3/hr) |
700 |
|
Capacity Mesh diameter with 4-6mm (m3/hr) |
900 |
|
Capacity Mesh diameter with 7-10mm (m3/hr) |
1200 |
Mechanical Fine Screen Advantage
Reliable and sturdy fine grid, ultra-fine grid decontamination filter machinery.
Large water flow, small head loss, small footprint and long service life.
Two-dimensional high-efficiency removal of fibers, hairs, flocs and other filter residues.
More than 2000 sets are used in municipal sewage and various industrial wastewater treatment.
Mechanical Fine Screen Options
Alternative screen types and sizes
Material 304 L / 316 L SS
Alternative voltage and frequency
Alternative degree of motor protection
Control panel
Mechanical Fine Screen Application
It is a high-efficiency fine grille decontamination equipment that combines pollution blocking and decontamination.
It is suitable for large, medium and small pump stations as fine grilles to intercept and remove floating objects in the water, such as: weeds, paper, cigarette butts, melon seeds, fibers, hair, etc.
This model has a high dirt capture rate , the effective implementation of the subsequent treatment process.
