| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DAF-030 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Condition: | New | Product Name: | Dissolved Air Flotation |
|---|---|---|---|
| Housing Materials: | Ss304, 316, 316L | Weight: | 3800 |
| Size: | 6.8*3.2*2.7 | Surface Treatment: | Polished & Sandblast |
| Warranty: | 1 Year | Type: | Water Treatment Machine |

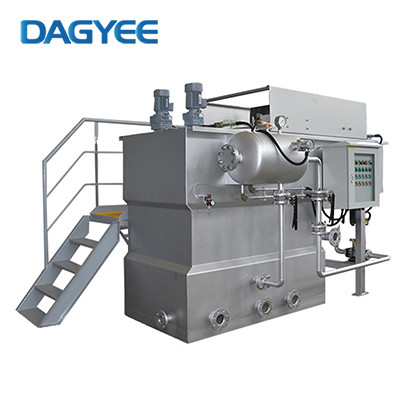

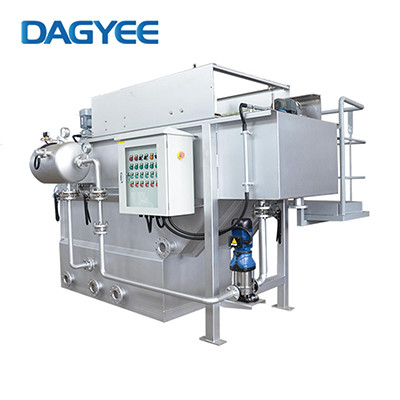

Dissolved Air Flotation Description
DAF Dissolved air flotation price (DAF) is used to treat wastewater that Contain free floating or emulsified oil, dissolved heavy metals, soaps ,surfactants ,and many other waste streams. With the features of lower power consumption, high treat efficiency, simple installation and maintenance , it is one of the most popular dissolved air flotation clarifier in China.daf for industrial oily water treatment.
Dissolved Air Flotation Feature
Adjustable effluent weir troughs
Epoxy coated carbon steel tank
Factory tested
Seamlessly integrates with other Hydro-Flo offered wastewater products
Stand alone operation
Standard units can be manufactured for flows from 5 gpm to 3500 gpm and above, in a single above grade tank
Structural steel support legs
Dissolved Air Flotation Available Options
Access platforms with ladder or stairs
Automatic sludge pump out packages
Chemical pretreatment systems
Concrete tank designs for large in ground installations
Duplex systems for redundancy
Effluent monitoring
Effluent sampling
Explosion-proof design
Flash mix/flocculation tanks with mixers
Full FRP or stainless steel construction
Influent equalization
Influent / effluent lift stations
Instrumentation and controls
Removable covers with gaskets
Integral mechanical sludge thickener
On board reagent storage (day tanks)
Pilot size units for on-site testing
Potable water design
Special coatings
Sludge handling and dewatering
30m3/hr Dissolved Air Flotation Specification
|
Parameter |
Units |
DAF-030 |
|
DAF Flow Rate |
m3/hr |
30 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
4.7 |
|
Footprint |
m |
6.8*3.2 |
|
Inlet |
in |
6 |
|
outlet |
in |
6 |
|
Sludge outlet |
in |
6 |
|
Vent |
in |
4 |
|
STANDARD INCLUSIONS + OPTIONS |
||
|
Skimmer Mounted Plant |
✓ |
|
|
Feed Pump |
✓ |
|
|
Micro bubble generator |
|
✓ |
|
Recycle clean water system |
|
✓ |
|
Maintenance platform, ladder |
|
✓ |
|
Pre-Treatment |
o |
|
|
Control System |
✓ |
|
|
Control System with PLC |
o |
|
|
Air Compressor |
✓ |
|
|
Treated Water Recycling for Saturator |
o |
|
|
Coagulation, flocculation reaction device |
o |
|
|
Chemical powder dissolving dosing device |
o |
|
Dissolved Air Flotation Applications
Separate small particles and algae in groundwater.
Recover valuable products in industrial sewage such as paper pulp.
Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
