| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DL303 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type:: | New Product 2020 |
|---|---|---|---|
| Material: | Standard Wooden Box | Weight: | 1520 Kg |
| Size: | 3605*1690*1600 | Function: | Filtering Suspended Matter |
| Advantage: | No Clogging | Color: | Customizable |

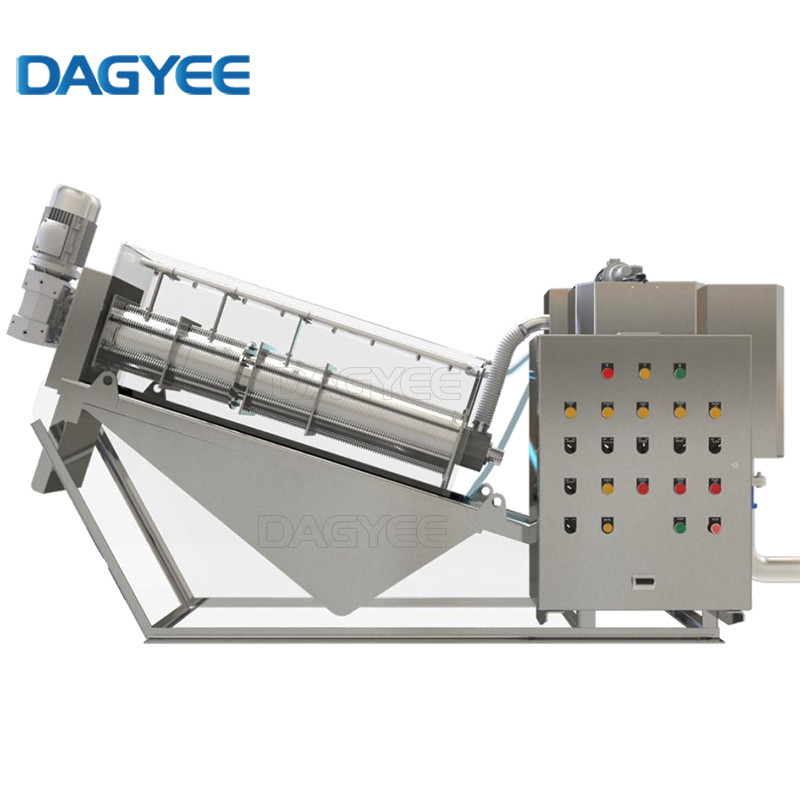

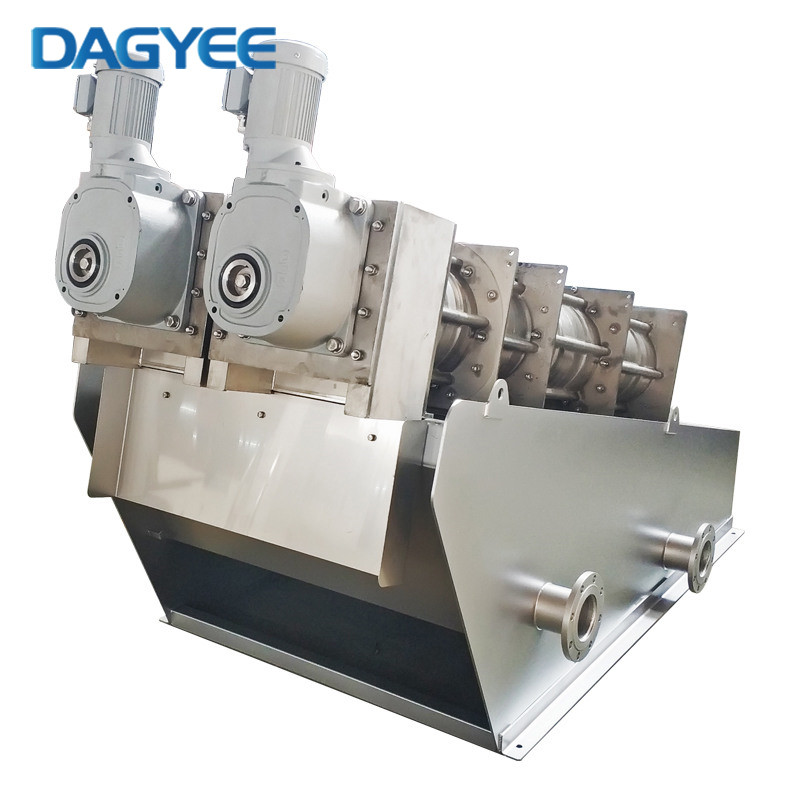

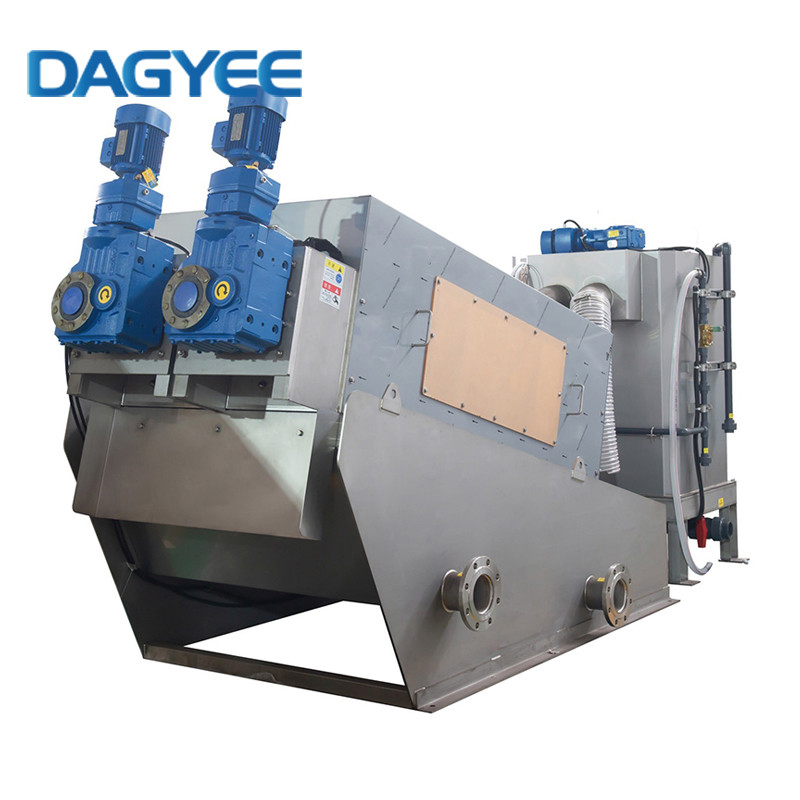

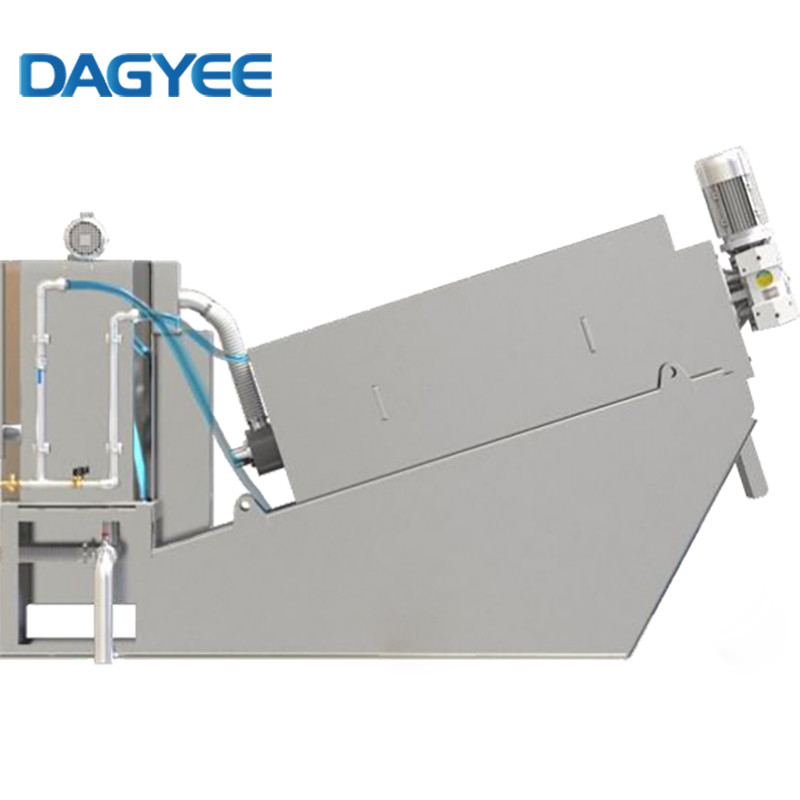

Sludge Dehydrator Description
The spiral type sludge dewatering machine is a kind of water treatment system, which is widely used in municipal wastewater treatment engineering, petrochemical, light industry, chemical fiber, paper making, pharmaceutical, leather and other industries. The actual operation shows that the sludge dewatering can create considerable economic benefits and social benefits for the customers.
The main purpose of Sludge dewatering machine is to minimize the handling and disposal. Sludge dewatering press is the most cost effective method of dewatering, and hence helps to sustain the environmental objectives of company.
Sludge Dehydrator Process
Thickening: When the shaft is driven by the screw, moving rings around the shaft move up and down relatively. Most water is pressed out from the thickening zone and fall down to the filtrate tank for gravity;
Dewatering: The thickened sludge moves forward continuously from the thickening zone towards the dewatering zone. With the pitch of the screw shaft thread getting narrower and narrower, the pressure in the filter chamber increases higher and higher. In addition to the pressure generated by the back-pressure plate, the sludge is greatly pressed and dryer sludge cakes produce;
Self-cleaning: The moving rings rotates continuously up and down under the pushing of the running screw shaft while the gaps between the fixed rings and moving rings are cleaned to prevent from clogging that happens frequently for traditional dewatering equipment.
Sludge Dehydrator Model
|
Model |
DL303 |
|
DS capacity kg/h |
90-150 kg/h |
|
Sludge capacity m3/h(2-50g/L) |
3-45 |
|
Spiral diameter mm |
￠310*3 |
|
Discharge Distance mm |
495 |
|
Size L*W*H mm |
3605*1690*1600 |
|
Net.Kg |
1520 |
|
Run Kg |
3080 |
|
Power Kw |
1.86 |
|
Washing Q L/h |
120 |
Sludge Dehydrator Widely Use
Applicable sludge concentration of 2000mg/L-50000mg/L.
Most especially for the oily sludge.
Fully Automatic Control
Combining with the auto control system, the machine runs very safely and simply and can be programmed according to the requirement of the users. It can operate automatically for 24 hours, unmanned.
Sludge Dehydrator Features
Automatic continuous operation
Compact design with flocculation and dewatering
Low power and water consumption
Low operation cost
No filter cloth, no clogging
No need for sludge thickener
Easy operation and maintenance
No vibration and noise
Sludge Dehydrator Application
Simple arrangement.
Low Power Consumption
Simple and short start-up and shut down procedures
Continuous operation. Hence continuous output can be obtained.
Process can be automized
Only electricity and water supply for cleaning is required, and that too in less amount
For a multi-channel machine, one or more channels may be removed for maintenance purposes, while the machine with the remaining channels may still be operated.
No clogging. Cleaning is automized and is easy.
Long life of discs.
No external lubrication system is required.
Flocculator built in the Screw press
