| Place of Origin: | China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | M.2020.206.C9739 |
| Model Number: | DLC-050 |
| Minimum Order Quantity: | 1 SET |
| Price: | CUSTOM |
| Packaging Details: | Wooden case, standard container, can be specified |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 10 SET |
| Material: | Carbon Steel Or Stainless Steel 304/316 | MOQ: | 1 Set |
|---|---|---|---|
| Colour: | Customizable |
Lamella Separator Description
Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids.
They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.
Available Options
Lamella Separator Model

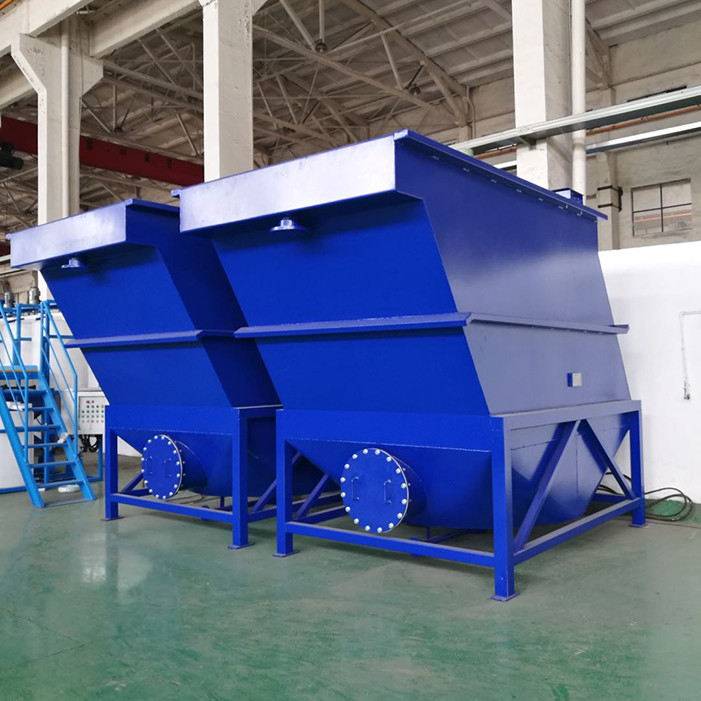

DLC-I Gravity Lamella, V shape mud bucket, simple structure, no energy consumption.

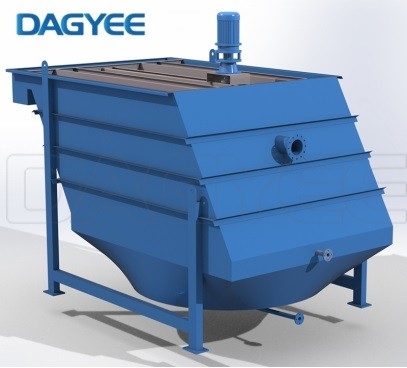

DLC-II Lamella with scraper, Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.
DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.
|
DLC |
Capacities |
Piping Connections() |
Physical Dimensions(m) |
|||||
|
Inlet(a) |
Effluent(b) |
Sludge(c) |
Backwash(d) |
L |
W |
H |
||
|
DLC- |
5 |
80 |
80 |
50 |
50 |
2.55 |
1.6 |
2.9 |
|
DLC- |
10 |
100 |
100 |
50 |
50 |
3.35 |
1.82 |
3 |
|
DLC- |
15 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
DLC- |
20 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
DLC- |
30 |
150 |
150 |
50 |
50 |
4.2 |
2.22 |
3 |
|
DLC- |
40 |
150 |
150 |
50 |
50 |
4 |
2.8 |
3 |
|
DLC- |
50 |
200 |
200 |
50 |
50 |
4.65 |
2.82 |
3 |
|
DLC- |
60 |
200 |
200 |
50 |
50 |
4.7 |
3 |
3 |
|
DLC- |
70 |
250 |
200 |
50 |
50 |
6.4 |
2.6 |
3 |
|
DLC- |
80 |
250 |
200 |
50 |
50 |
6.8 |
2.82 |
3 |
|
DLC- |
100 |
250 |
250 |
50 |
50 |
7.05 |
3.02 |
3 |
Lamella Separator Advantages
Lamella Clarifier minimizes maintenance and operation.
The cost of compact design is much less than standard clarifying agent.
Lamella is great for new factories or upgrade existing installations with limited space system.
The configuration ensures laminar flow conditions, resulting in High hydraulic uniformity and high effluent quality.
Point source treatment with Lamella is very suitable for many applications.
Lamella Separator Applications
Water following physical-chemical treatment.
Tailings in mining and metallurgical beneficiation.
Solutions from gold leaching processes.
Wet scrubbing effluents.
Effluent treatment in pulp and paper mills.
Filter backwash.
