| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | DAF-030 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20SET |
| Condition: | New | Product Name: | Dissolved Air Flotation |
|---|---|---|---|
| Housing Materials: | Ss304, 316, 316L | Weight: | 3800 |
| Size: | 6.8*3.2*2.7 | Surface Treatment: | Polished & Sandblast |
| Warranty: | 1 Year | Type: | Water Treatment Machine |

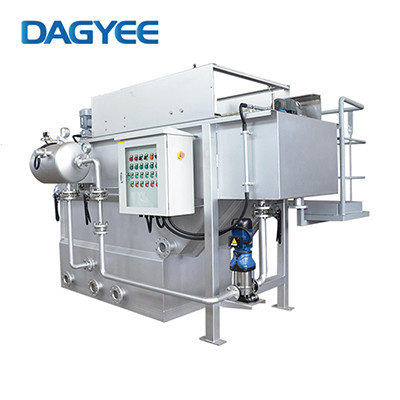

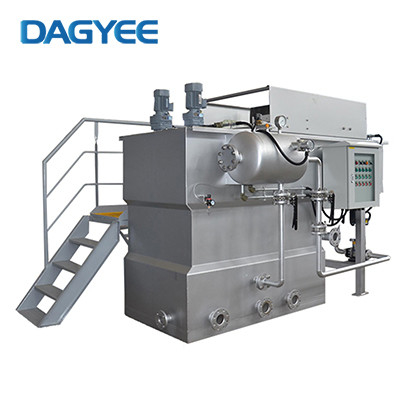

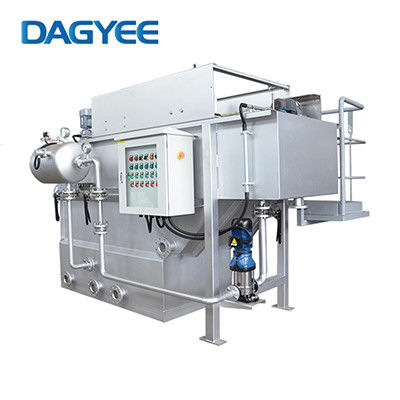

Dissolved Air Flotation Description
Dissolved air flotation is one of the most effective methods whose specific gravity is close to 1.0 from water.
Dissolved Air Flotation is liquid/solid or liquid/liquid separation process to remove tiny suspended solids that density close to the water, colloid , oil and grease etc. Benenv dissolved air flotation is an innovation combined with traditional dissolved air flotation concept and modern technology.
The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air at atmospheric pressure in a flotation tank. The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.
Dissolved Air Flotation Feature
Adjustable effluent weir troughs
Epoxy coated carbon steel tank
Factory tested
Seamlessly integrates with other Hydro-Flo offered wastewater products
Stand alone operation
Standard units can be manufactured for flows from 5 gpm to 3500 gpm and above, in a single above grade tank
Structural steel support legs
Dissolved Air Flotation Available Options
Access platforms with ladder or stairs
Automatic sludge pump out packages
Chemical pretreatment systems
Concrete tank designs for large in ground installations
Duplex systems for redundancy
Effluent monitoring
Effluent sampling
Explosion-proof design
Flash mix/flocculation tanks with mixers
Full FRP or stainless steel construction
Influent equalization
Influent / effluent lift stations
Instrumentation and controls
Removable covers with gaskets
Integral mechanical sludge thickener
On board reagent storage (day tanks)
Pilot size units for on-site testing
Potable water design
Special coatings
Sludge handling and dewatering
30m3/hr Dissolved Air Flotation Specification
|
Parameter |
Units |
DAF-030 |
|
DAF Flow Rate |
m3/hr |
30 |
|
Total Inlet Solids |
mg/L |
500-6500 |
|
FOG Removal |
% |
80~97 (Application Dependent) |
|
TSS Removal |
% |
60~99 (Application Dependent) |
|
COD Removal |
% |
20~80 (Application Dependent) |
|
BOD Removal |
% |
20~80 (Application Dependent) |
|
Power Consumption |
kW |
4.7 |
|
Footprint |
m |
6.8*3.2 |
|
Inlet |
in |
6 |
|
outlet |
in |
6 |
|
Sludge outlet |
in |
6 |
|
Vent |
in |
4 |
|
STANDARD INCLUSIONS + OPTIONS |
||
|
Skimmer Mounted Plant |
✓ |
|
|
Feed Pump |
✓ |
|
|
Micro bubble generator |
|
✓ |
|
Recycle clean water system |
|
✓ |
|
Maintenance platform, ladder |
|
✓ |
|
Pre-Treatment |
o |
|
|
Control System |
✓ |
|
|
Control System with PLC |
o |
|
|
Air Compressor |
✓ |
|
|
Treated Water Recycling for Saturator |
o |
|
|
Coagulation, flocculation reaction device |
o |
|
|
Chemical powder dissolving dosing device |
o |
|
Dissolved Air Flotation Applications
Paper-making waste water treatment for fiber recycling.
Paint, printing and dyeing waste water treatment for color reduction.
Chemical waste water treatment.
Food waste water treatment.
Oil refinery for separating oil and impurity.
