| Place of Origin: | China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | M.2020.206.C9739 |
| Model Number: | DLC-050 |
| Minimum Order Quantity: | 1 SET |
| Price: | CUSTOM |
| Packaging Details: | Wooden case, standard container, can be specified |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 10 SET |
| Material: | Carbon Steel Or Stainless Steel 304/316 | MOQ: | 1 Set |
|---|---|---|---|
| Colour: | Customizable |

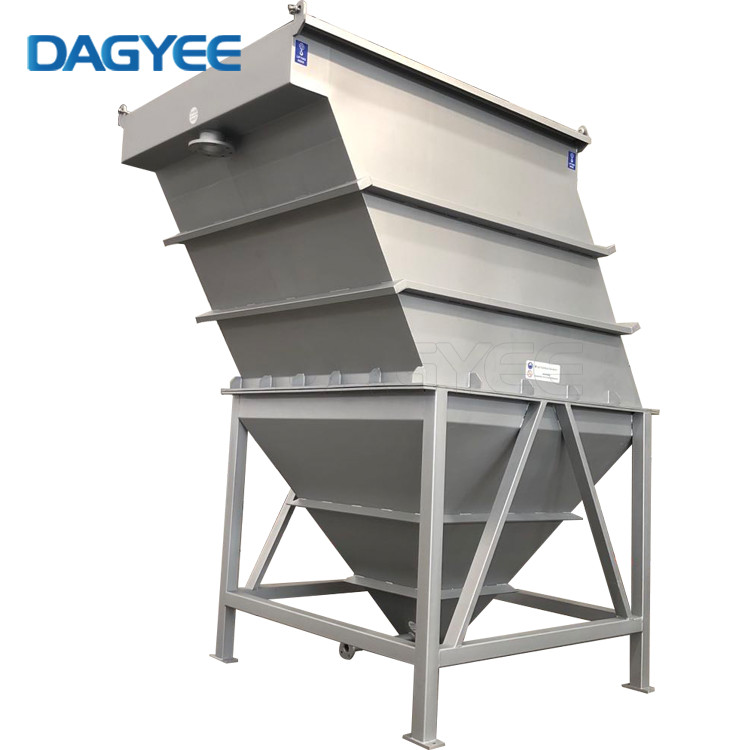

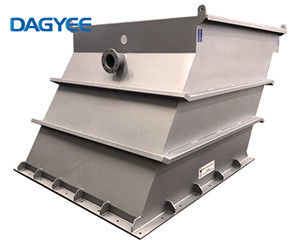

Lamella Separator Description
Inclined Plate Lamella Clarifiers are designed to remove solids from water. They are used in a wide variety of Wastewater Treatment Applications, including Metal Finishing Wastewater Treatment. The Total Suspended Solids TSS in the wastewater will naturally settle over time due to gravity, but this process can be sped up and improved by having Inclined Plates. The inclined plates provide a large projected settling area in a compact form. This technology is greatly beneficial compared to a cone bottom tank or a circular clarifier because of the space savings, settling efficiencies, and the reduced cost of construction.
Available Options
Lamella Separator Model
DLC-I Gravity Lamella, V shape mud bucket, simple structure, no energy consumption.
DLC-II Lamella with scraper, Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.
DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.
|
DLC |
Capacities |
Piping Connections() |
Physical Dimensions(m) |
|||||
|
Inlet(a) |
Effluent(b) |
Sludge(c) |
Backwash(d) |
L |
W |
H |
||
|
DLC- |
5 |
80 |
80 |
50 |
50 |
2.55 |
1.6 |
2.9 |
|
DLC- |
10 |
100 |
100 |
50 |
50 |
3.35 |
1.82 |
3 |
|
DLC- |
15 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
DLC- |
20 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
DLC- |
30 |
150 |
150 |
50 |
50 |
4.2 |
2.22 |
3 |
|
DLC- |
40 |
150 |
150 |
50 |
50 |
4 |
2.8 |
3 |
|
DLC- |
50 |
200 |
200 |
50 |
50 |
4.65 |
2.82 |
3 |
|
DLC- |
60 |
200 |
200 |
50 |
50 |
4.7 |
3 |
3 |
|
DLC- |
70 |
250 |
200 |
50 |
50 |
6.4 |
2.6 |
3 |
|
DLC- |
80 |
250 |
200 |
50 |
50 |
6.8 |
2.82 |
3 |
|
DLC- |
100 |
250 |
250 |
50 |
50 |
7.05 |
3.02 |
3 |
Lamella Separator Advantages
Unit is Completely Assembled
Low Installation
Conservative Design 0.2 GPM/Ft2
Completely Automatic, Gravity in Gravity Out
Reduced Floor Space
Large Compartment Flocculation Tanks with Mixer for Extra Retention Time (approximately 50-60 minutes)
Lamella Separator Applications
Heavy Metals Removal
Filter Press Belt Wash
Battery Plant Heavy Metals Removal
Hazardous Waste Remediation
Brine Clarification
Plating and Finishing Wastes
Food & Beverage Waste
Trace Metals Reduction
Storm Water Management
Bleach Plant Wash Water
Incinerator Wet Scrubber
Potable Water Pretreatment
