| Place of Origin: | China |
|---|---|
| Brand Name: | Dagyee |
| Model Number: | sk |
| Minimum Order Quantity: | 1 set |
| Price: | $59 |
| Packaging Details: | Packed in wooden cases |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 200 sets per month |
| Product Name: | Static Mixer | Material: | 304/316L/PP/PVC/PTFE |
|---|---|---|---|
| Application: | Filtration | Key Words: | Helical Mixers |
| Size: | 1-60 Inch | Usage: | Mixing Process |
| Productivity: | 1000L/Hour | MOQ: | 1 Pcs |
| Feature: | High Efficiency | Keywords: | Waste Water Treatmnet |

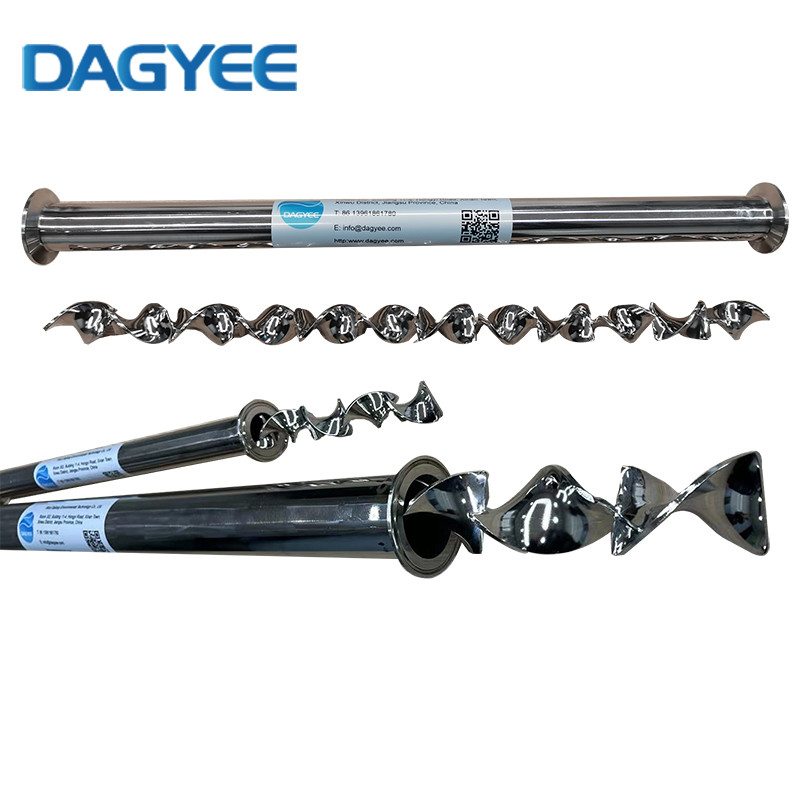

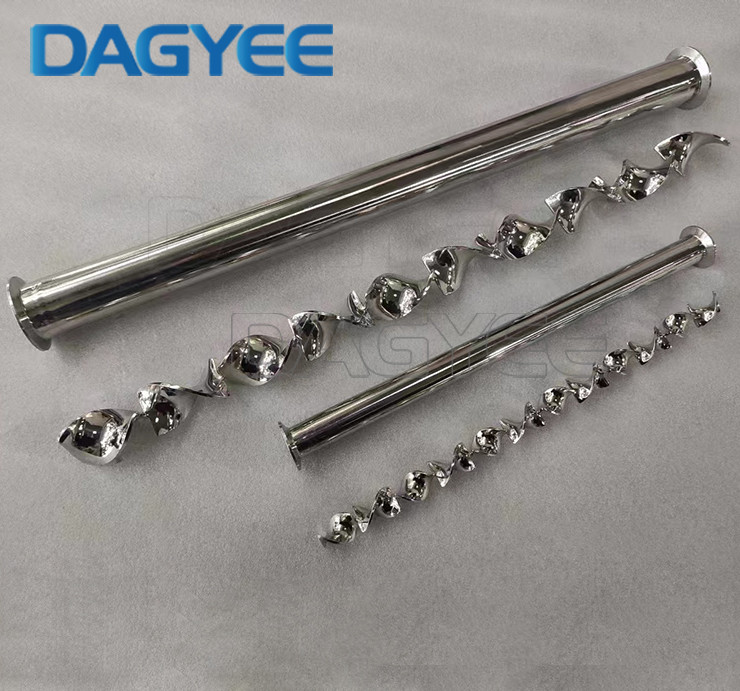

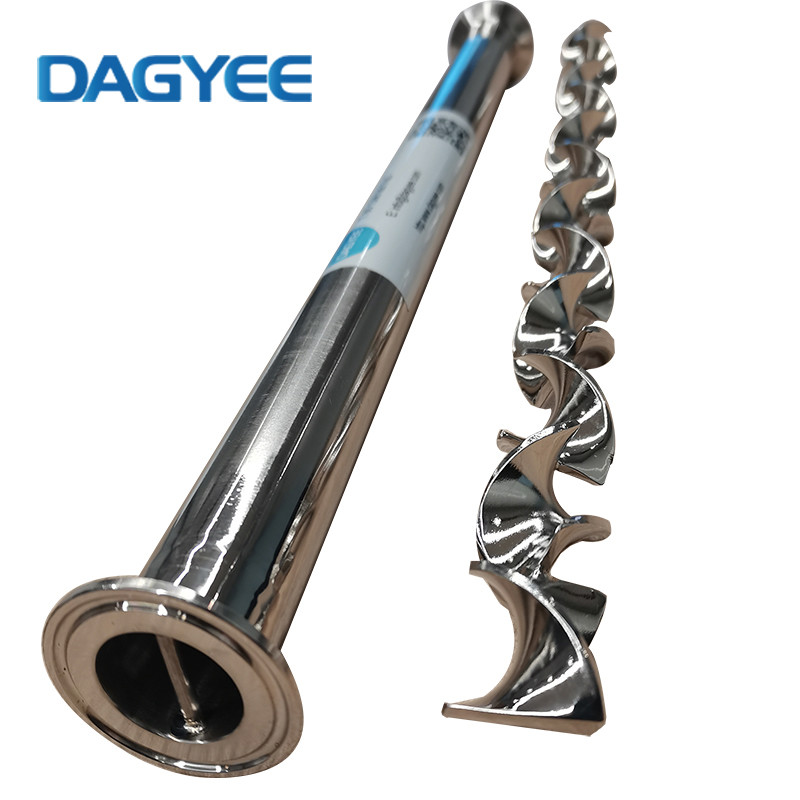

Static Inline Mixers
DAGYEE produces a complete line of custom stainless steel static mixers made from industrial grade schedules 10 through 40 pipe, in sizes ranging from 3/8"- 60" diameter. All stainless steel metal static mixers are custom designed for each application. DAGYEE stocks all of the raw materials for the mixer line and can produce a flanged industrial mixer in as little as 1-2 days, if needed. Standard materials of construction include carbon steel, 304L and 316L stainless steel. Other higher alloys are available upon request for inline static mixers.
How does a static mixer work?
The working principle of the static mixer is to let the fluid flow in the pipeline and impact various types of plate elements, increasing the velocity gradient of the fluid laminar movement or forming turbulent flow. In laminar flow, it is "segmentation-position movement-remerge". In turbulent flow, In addition to the above three situations, the fluid will also generate severe eddy currents in the cross-sectional direction, and a strong shear force will act on the fluid, causing the fluid to be further divided and mixed, and finally mixed to form the required emulsion. The reason why it is called a "static" mixer is that there are no moving parts in the pipeline, only stationary elements.
SK series model
|
Model |
Dg(mm) |
dh(mm) |
Q(m3/h) |
|
SK-5/10 |
10 |
5 |
0.15-0.3 |
|
SK-7.5/15 |
15 |
7.5 |
0.3-0.6 |
|
SK-10/20 |
20 |
10 |
0.6-1.2 |
|
SK-12.5/25 |
25 |
12.5 |
0.9-1.8 |
|
SK-16/32 |
32 |
16 |
1.4-3.2 |
|
SK-20/40 |
40 |
20 |
2.2-4.5 |
|
SK-25/50 |
50 |
25 |
3.5-7.0 |
|
SK-32.5/65 |
65 |
32.5 |
5.9-12 |
|
SK-40/80 |
80 |
40 |
9-18 |
|
SK-50/100 |
100 |
100 |
14-28 |
|
SK-62.5/125 |
125 |
125 |
22-44 |
|
SK-75/150 |
150 |
150 |
31-64 |
|
SK-100/200 |
200 |
200 |
56-110 |
|
SK-125/250 |
250 |
250 |
88-177 |
|
SK-150/300 |
300 |
300 |
127-255 |
|
SK-175/350 |
350 |
350 |
173-346 |
|
SK-200/400 |
400 |
400 |
226-452 |
|
SK-250/500 |
500 |
500 |
353-706 |
Benefits of Static Mixer
Maintenance-Free
Static Mixers are built to last using industrial grade materials specifically tailored to your application.
Low-Cost
Static Mixers are a low-cost alternative to traditional tank mixers both at purchase and during the mixer's lifetime. There are no running costs associated with operating Static Mixer on top of running your existing pipeline.
Low Energy Requirements
Because static mixers are motionless by design, all the energy required to provide a perfect blend is provided by the energy of the flow stream.
No Moving Parts
Unlike traditional mixers, static mixers remain motionless during the mixing process.
Custom-Designed for Your Application
Static mixers can be custom-tailored to fit your requirements.
Quick Delivery
Maintains complete control over its production process. All static mixers are built in-house at Koflo's manufacturing facility outside Chicago and can be manufactured to meet your project schedule.
Static Mixer Applications

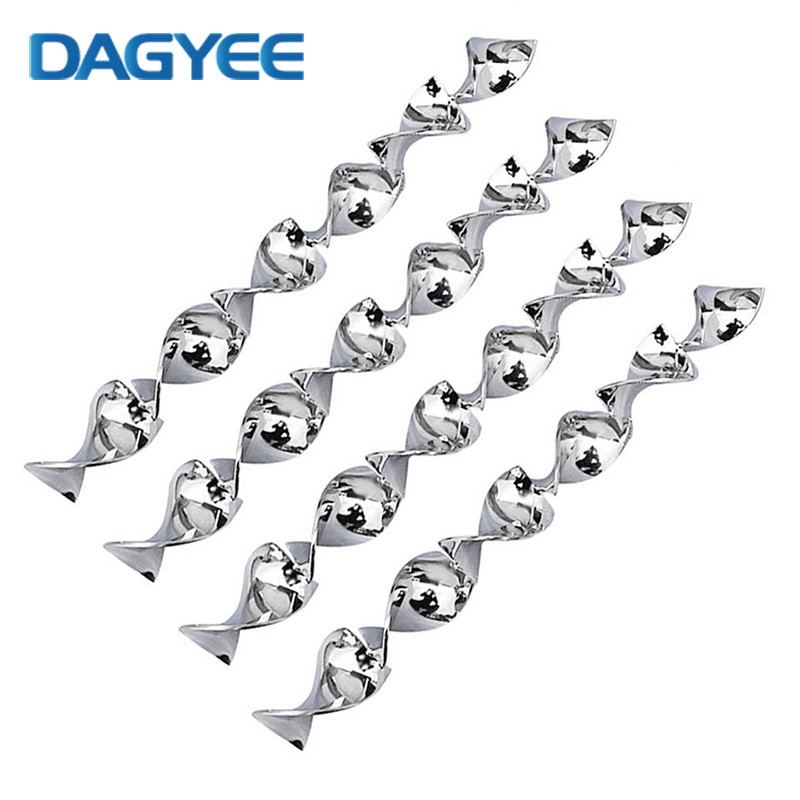

Standard helical or spiral shaped elements
• Up to ±160 mm diameter
• Suitable for basic mixing applications, liquid and gas
• Used for heat transfer enhancement
• Available in wide range of materials
