| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | DL303 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type:: | New Product 2020 |
|---|---|---|---|
| Material: | Standard Wooden Box | Weight: | 1520 Kg |
| Size: | 3605*1690*1600 | Function: | Filtering Suspended Matter |
| Advantage: | No Clogging | Color: | Customizable |

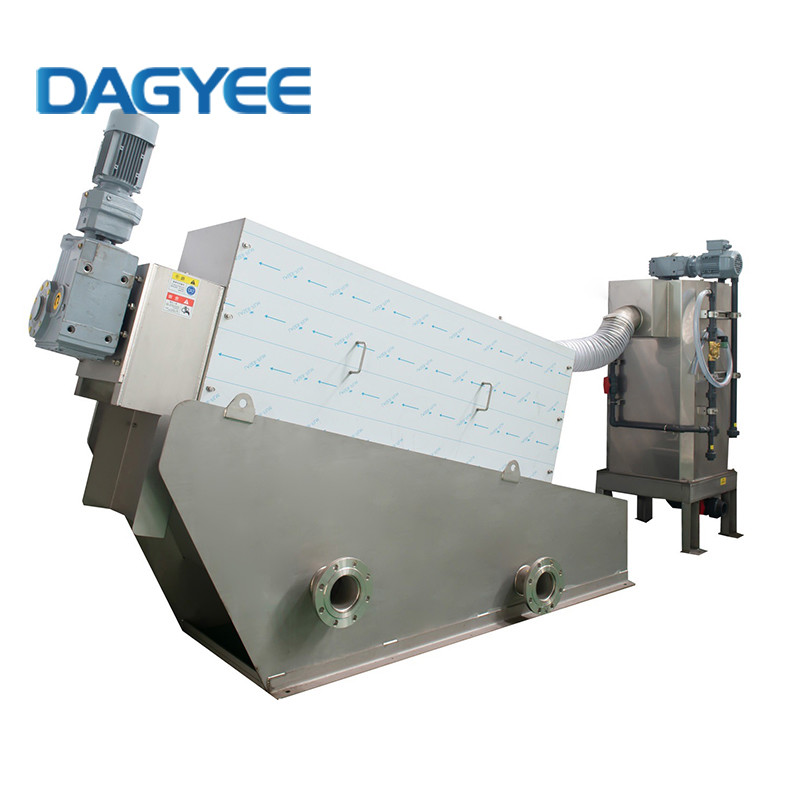

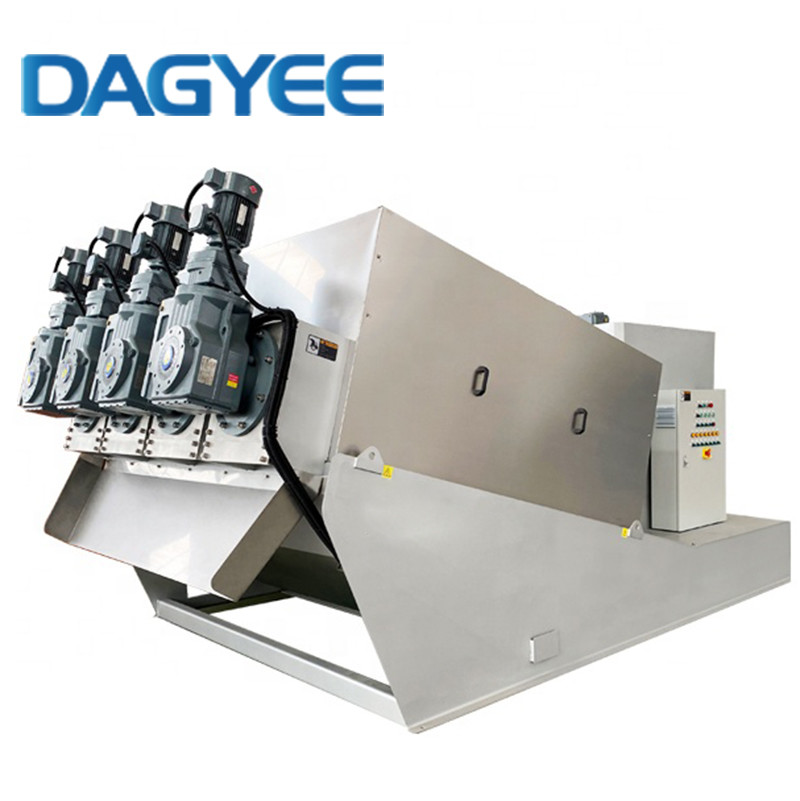

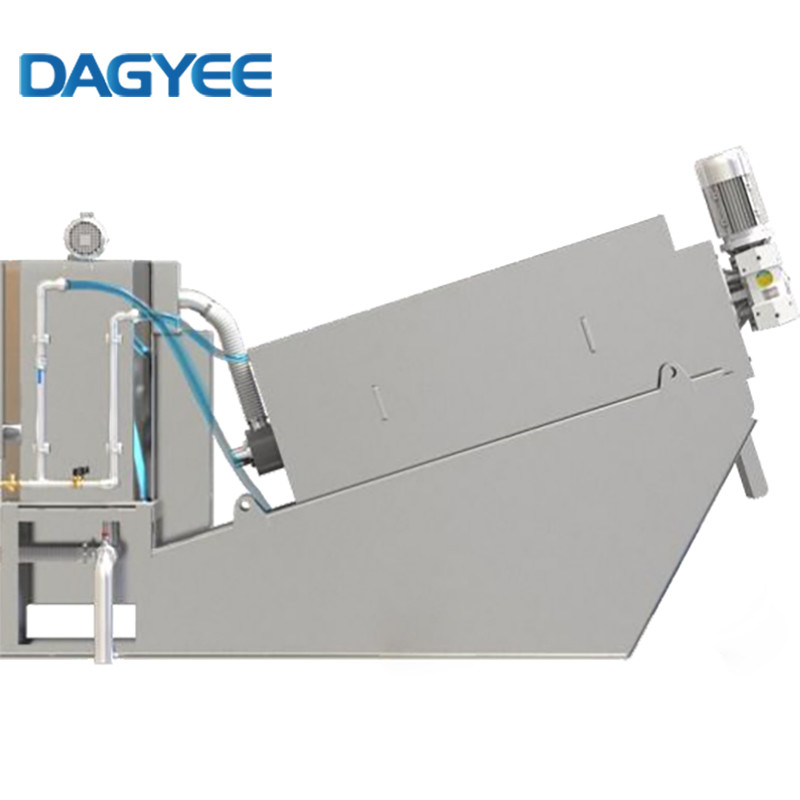

Mobile Screw Press Sludge Dewatering Description
Multidisc sludge dewatering screw press is integrated with sludge flocculation tank which efficiently mixes the input sludge with the optimal dose of flocculation. This flocculated sludge then enters the screw body which in the initial stage has more open area to dewater the separated water faster.
As screw rotates at a rpm which is set to give optimum output carries the dewatered concentrated sludge forward towards the end. As screw is been gradually increasing making the valley / volume available for the sludge narrow towards the outlet so that flocculated sludge that is concentrated by gravity filtration is further dewatered by compression.
Sludge Dehydrator Process
Thickening: When the shaft is driven by the screw, moving rings around the shaft move up and down relatively. Most water is pressed out from the thickening zone and fall down to the filtrate tank for gravity;
Dewatering: The thickened sludge moves forward continuously from the thickening zone towards the dewatering zone. With the pitch of the screw shaft thread getting narrower and narrower, the pressure in the filter chamber increases higher and higher. In addition to the pressure generated by the back-pressure plate, the sludge is greatly pressed and dryer sludge cakes produce;
Self-cleaning: The moving rings rotates continuously up and down under the pushing of the running screw shaft while the gaps between the fixed rings and moving rings are cleaned to prevent from clogging that happens frequently for traditional dewatering equipment.
Sludge Dehydrator Model
|
Model |
DL303 |
|
DS capacity kg/h |
90-150 kg/h |
|
Sludge capacity m3/h(2-50g/L) |
3-45 |
|
Spiral diameter mm |
￠310*3 |
|
Discharge Distance mm |
495 |
|
Size L*W*H mm |
3605*1690*1600 |
|
Net.Kg |
1520 |
|
Run Kg |
3080 |
|
Power Kw |
1.86 |
|
Washing Q L/h |
120 |
Sludge Dehydrator Widely Use
Applicable sludge concentration of 2000mg/L-50000mg/L.
Most especially for the oily sludge.
Fully Automatic Control
Combining with the auto control system, the machine runs very safely and simply and can be programmed according to the requirement of the users. It can operate automatically for 24 hours, unmanned.
Sludge Dehydrator Features
Low energy consumption.
Minimal water consumption.
Minimal noise.
Low polymer consumption.
No need for proceeding sludge thickening.
Suitable for any type of sludge even suitable for dewatering oil/grease rich sludge.
Minimal maintenance and operational cost.
Capable for working 24/7.
Sludge Dehydrator Application
All range of industries ETP & STP
Faecal Sludge management
Primary sludge and biological sludge dewatering
Wastewater treatment plants – New / Existing
