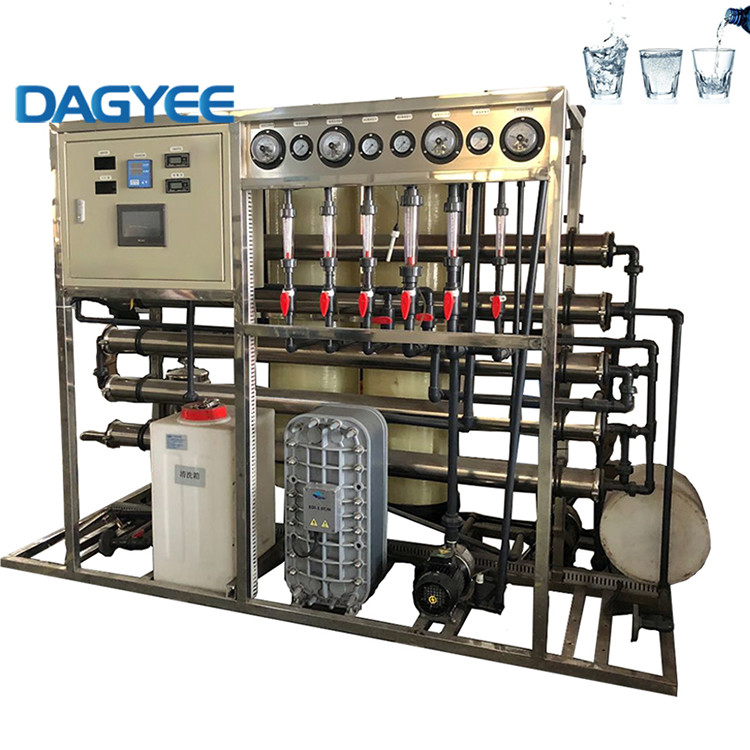

1500x600x1600mm 250LPH Reverse Osmosis Water Treatment Systems

250LPH Sink Ro System Water Purifier Desalination Plant Price

• Process: raw water tank→ raw water pump→quartz sand filter →activated carbon filter→water softener/chemical dosing system(optional)→security filter→high pressure pump→ro system→pure water tank+UV sterilizer(ozone generator)Optional +precision filter+water supply point
• Quartz sand filter:
• fill quarts sand inside, it can filter big particles impurities, suspended substances, colloids etc.
• Activated carbon filter:
• fill activated carbon inside, to remove color, odor, residual chlorine and organics substances.
• Security filter:
• fill cation resion inside, prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um.
• Water softener(Chemical dosing system):
• adopt cation resin to soften wate/add antiscalant(buyer supply) , absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water.
• RO membrane:
• can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
• UV sterilizer:
• for killing bacterial in water, be safe for drinking.

Detailed parameters of RO system

Features Of Ro System

• High-precision filter, the aperture of nano-level, the best water quality
• Manual / electric control system automatically switch;
• With a self-test, water-free point automatically open the system of water, water full stop, no pressure protection and other safety devices;
• With open RO membrane automatic washing and water tank full automatic double wash function, can extend the life of RO membrane;
• With on-line monitoring of water quality (conductivity display), flow and pressure on-line display;
• Equipment integration, installation is simple, simple operation, no special duty;
• Equipment failure with automatic alarm function;
• High water production, high desalination rate, long service life;
• Core components (pumps, RO membrane, electronic control systems, etc.) imported / domestic joint venture brand;
• Equipment rack with stainless steel, low-pressure pipe for the UPVC material, high-pressure pipe using SUS304 stainless steel.

Application Of RO System

• Advantages
• Can produce pure water continuously and highly automatic
• No need chemical to regeneration, easy operation
• RO system uses imported USA DOW membrane
• Automatic switch on when low water level, and switch off when high water level
• RO membrane can wash automatically and reduce pollution
• Water shortage protection for multi-stage pump
• Production water conductivity meter can test the monitoring quality on line continuously.
• Low operation Cost and Long life span
• RO-PLC program controller
• Easily control and Maintain
• Auto flush/backwash
