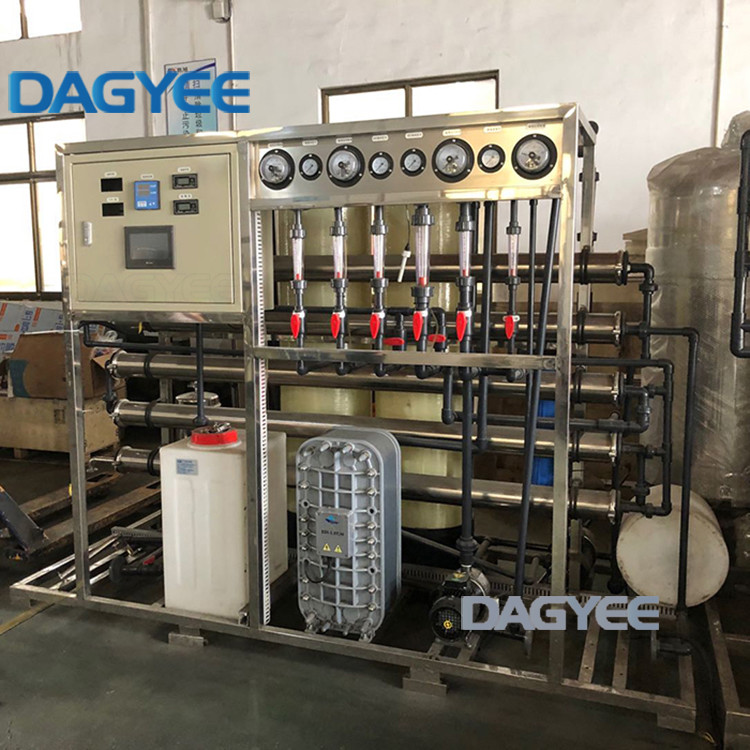

EDI 1000LPH Reverse Osmosis Water Treatment Systems

1000LPH Edi Industrial Customized Ro System Water Clean Compact Supplier

Reverse osmosis technology is a well-developed desalination technology in the world, and it is also the most widely used and most applicable water treatment process in the market. It can precisely filter out bacteria, viruses, metal ions, salts, pesticides and various carcinogens in water. It has low working pressure, large water production, high salt rejection and easy maintenance. A large flow film will be automatically applied before and after each water production to extend its service life.

Detailed parameters of RO system

Features Of Ro System

• Product description
• Pressure: 0.8~1.2MPa
• PH range: 5.5 ~ 8.5
• Applicable temperature: 5~40°C
• Feed Water TDS: ≤1000PPM
• Desalination rate: ≥98%
• Recovery rate: ≥50%
• Organic matter removal rate: ≥99%
• Bacterial removalrate: ≥99.9%

​Application Of RO System

• Advantages
• Can produce pure water continuously and highly automatic
• No need chemical to regeneration, easy operation
• RO system uses imported USA DOW membrane
• Automatic switch on when low water level, and switch off when high water level
• RO membrane can wash automatically and reduce pollution
• Water shortage protection for multi-stage pump
• Production water conductivity meter can test the monitoring quality on line continuously.
• Low operation Cost and Long life span
• RO-PLC program controller
• Easily control and Maintain
• Auto flush/backwash

FAQ​ Of RO System

• Q: How Does Reverse Osmosis Work?

A: Reverse osmosis systems purify water by forcing pressurized water through a very fine, plastic membrane. If the raw water being treated comes from a well or another private source, disinfection and pre-filters (to remove chlorine and/or particulates/sediment) may be needed in advance of the R/O unit to remove contaminants that can foul or damage the membrane.

• Q: How Do I Know What Size Unit to Buy?

A: R/O units are rated according to the amount of treated water produced per day. For example, one type of unit produces 5000 liters of treated water per day under its design conditions. In reality, conditions frequently vary. Line pressure is often lower, water will frequently be colder than 25° C and backpressure in the storage tank will likely reduce the performance of the unit. Consequently, you should examine water conditions and buy a larger rated unit than needed if any of the above problems are noted.

• Q: Material of the reverse osmosis system?

A: You can choose FRP filter + U-PVC pipe, stainless steel filter + U-PVC pipe or total stainless steel.
