| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | ISO9001 |
| Model Number: | K1 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 tons/month |
| Keywords: | Water Filter System Small Industry | Condition: | New |
|---|---|---|---|
| Material: | HDPE | GNH4N/M3.d: | 400-1200 |
| Capacity: | 10-5000 M3/d | Applicable PH: | 6~10 |
| Service Life: | More Than 10 Years | Product Name: | MBBR Filter Media |
| Highlight: | Plastic MBBR Carrier,Hydrophilic MBBR Carrier,mbbr k1 media reactor |
||

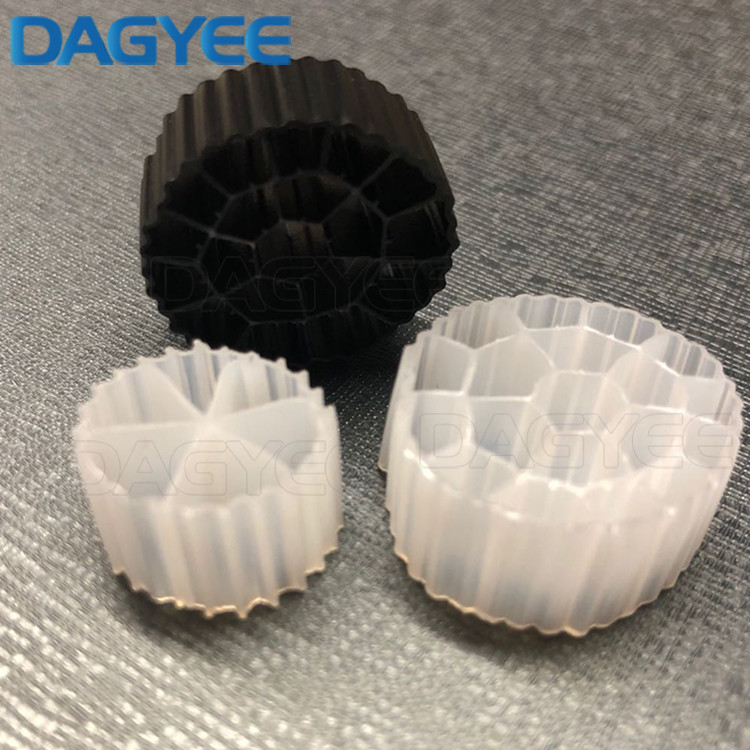

Dagyee K1 Moving Bed Fish Farm Bio Filter Hydrophilic Plastic Biocell Filter Media
MBBR Filter Floating Media, used in Integrated Fixed-lm Activated Sludge (IFAS) and moving bed biofilm reaction (MBBR) system.
The wastewater goes through suspending media of MBBR reactor, forming biological membrane on the surface of media gradually. With the action of microbial on the biological membrane, wastewater is purified. MBBR media can move freely in the reactor with the mixing of the water. For the aerobic reactor, the aeration will make the media move; for the anaerobic reactor, mechanic mixing will make the media move.
MBBR K1 Bio Filter Media Technical Parameter
| Porosity | 85% |
| Doing Ritio | 15-65% |
| Membrane-formng Time | 3-15days |
| gNH4N/M3.d | 400-1200 |
| gBOD5/M3.d | 2000-10000 |
| gCOD5/M3.d | 2000-15000 |
| Applicable temperature | 5-60℃ |
| Life-span | >15years |
| Material | HDPE |
| Model | D1-10-8 |
| Bulk Density | 150kg/m3 |
| Dimensions | Ø10*8mm |
| Total Surface Area | >750m2/m3 |
| Protected Surface Area | >500m2/m3 |
| Material | HDPE |
| Density | 0.96g/cm3 |
| Color | White black OEM |
Features Of MBBR Media
Bio Media moving bed bio reactor reactor (MBBR) filter media has a well-documented history in filter applications. Bio Media may be used for pond filters, aquaponics, hydroponics, sewage treatment, and more. Bio Media is slightly buoyant and perfect for mechanical or biological filtration.
MBBR Media Used In Applications
How Does MBBR Work
Moving bed bioreactor (MBBR) includes a water tank of any shape filled with small carrier elements. These elements are specially developed materials with controlled density, so they can be fluidized using aeration equipment. Biofilms will form on the components, and these will move with the wastewater in the reactor. The movement in the reactor is generated by providing aeration in the diffuser located at the bottom of the reactor. The thin biofilm on the element enables bacteria to act on the biodegradable substances in the wastewater and reduce the BOD / COD content in the presence of oxygen in the air for fluidization. The treated water flows through the grid or sieve from the reactor, thereby retaining the MBBR biocarrier in the reactor. The system can be composed of a one-stage or two-stage treatment process according to the specific needs of wastewater.
