| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | HS-500 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type: | New Product 2020 |
|---|---|---|---|
| Material: | 304 316 | Product Name: | Static Screen |
| Application: | Wastewater Treatment | Weight: | 180 Kg |
| Color: | Customized | Warranty: | 1 Year |
| Highlight: | MBR Sieve Bend Screen,10m3/h Sieve Bend Screen,MBR Static Sieve |
||

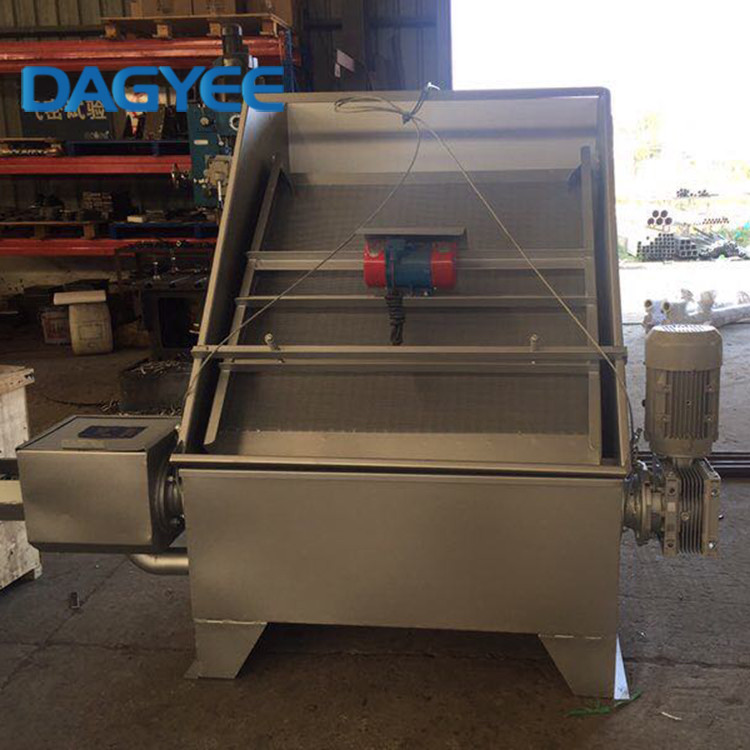

HS-500 Stainless Steel Iso High Solid Liquid Separation Mbr Technologies Sieve Bend Screen
What Is Static Screen
Influent pumped into the inflow chamber through the inlet of the pipe. As the water level rises, it will flow under the wage weir and the pivoting baffle. Liquids and solids flow through the screen, and Liquids falls through the screen, while gravity and more screening push the captured solids toward the discharge point. The wastewater passes through the filter enters distribution chamber and flows through the outlet tube. The drip-proof assembly at the bottom of the filter directs excess water to the waste chamber. When the solids reach the bottom of the screen, they slide into the container, conveyor or other suitable receiving equipment. Dagyee offers a variety of rear screen and dewatering equipment. To assemble the most cost-effective screening system. Welcome to consult.
HS-500 Static Screen Specifications
| Model | HS-500 |
| Material | SUS304 SUS316;Stainless Steel |
| Inlet | 100 |
| Effluent | 100 |
| Dimensions(m) | 1.43*0.63*2 |
| Weight(Kg) | 180 |
| 0.5mm-Capacities(m3/h) | 10 |
| 1mm-Capacities(m4/h) | 22 |
| 1.5mm-Capacities(m5/h) | 35 |
Features Of Static Screen Works
Static Hydraulic Screen
Static Screen Work Process
The main body of the static screen is a stainless steel curved or flat filter screen made of wedge-shaped steel rods. The wastewater to be treated passes through the weir and is evenly distributed to the inclined screen surface. Since the surface of the screen is small and smooth, the back gap is large, the drainage is smooth, it is difficult to block. The solid matter is trapped, and the filtered water flows out from the gap of the sieve plate. At the same time, under the action of hydraulic force, the solid matter is pushed to the lower end of the sieve plate to discharge, thereby achieving the purpose of solid-liquid separation.
