Self-Cleaning Wastewater Stainless Steel Filter Hydraulic Mechanical Screen

Static Screen Wastewater Description

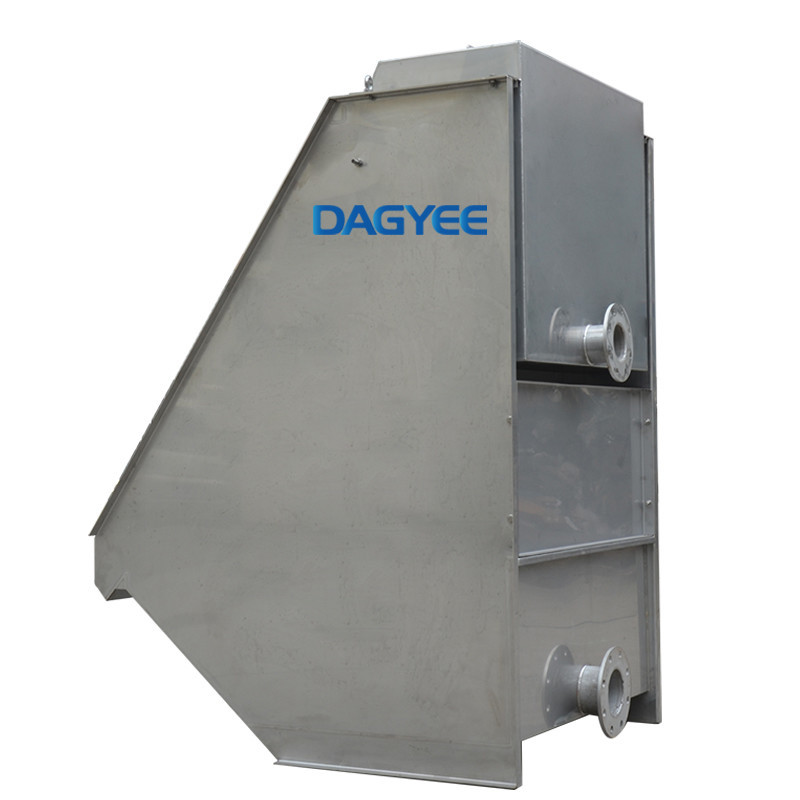

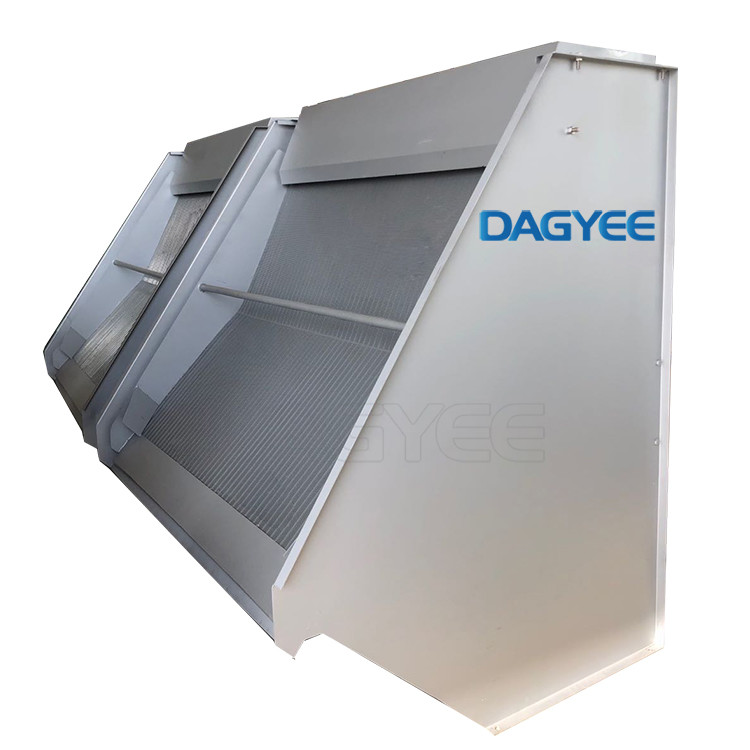

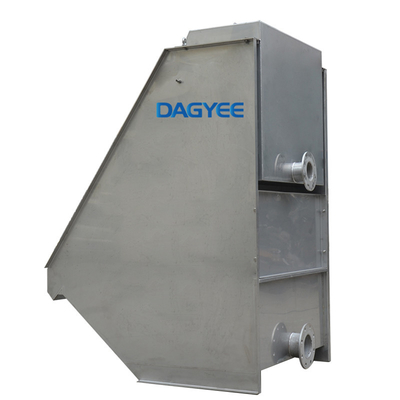

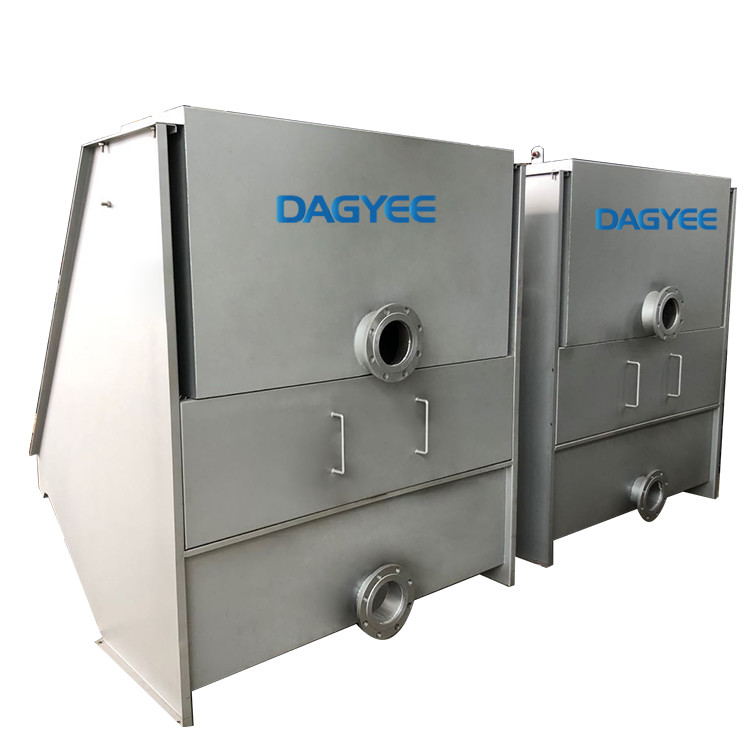

Static screen water is designed to provide trouble free liquid separation. The open screen design accommodates peak hydraulic flows and the deep influent head box reduces influent turbulence while delivering an even flow over the weir crest. A pivoting flow control baffle plate is provided to enhance even flow distribution and promote faster fluid removal by directing the fluid into the screen.

The main body of the static screen is a stainless steel curved or flat filter screen made of wedge-shaped steel rods. The wastewater to be treated passes through the weir and is evenly distributed to the inclined screen surface. Since the surface of the screen is small and smooth, the back gap is large, the drainage is smooth, it is difficult to block. The solid matter is trapped, and the filtered water flows out from the gap of the sieve plate. At the same time, under the action of hydraulic force, the solid matter is pushed to the lower end of the sieve plate to discharge, thereby achieving the purpose of solid-liquid separation.

Static Screen Wastewater Works

Influent pumped into the inflow chamber through the inlet of the pipe. As the water level rises, it will flow under the wage weir and the pivoting baffle. Liquids and solids flow through the screen, and Liquids falls through the screen, while gravity and more screening push the captured solids toward the discharge point. The wastewater passes through the filter enters distribution chamber and flows through the outlet tube. The drip-proof assembly at the bottom of the filter directs excess water to the waste chamber. When the solids reach the bottom of the screen, they slide into the container, conveyor or other suitable receiving equipment. Dagyee offers a variety of rear screen and dewatering equipment. To assemble the most cost-effective screening system. Welcome to consult.

Static Screen Wastewater Model

Static Screen Wastewater Feature

A Better Environment for Beaver Pond
Whitewater Reuse
Broke Thickening
Helps Nut Grower Recycle Wastewater
Screening fire sprinkler water
Storm water screening
Better Dairy Pen Waste Management
Textiles and laundries

Static Screen Wastewater Application

Industrial wastewater treatment plants
Textile
Paper
Slaughterhouse
Food and plastic recycling wastewater treatment plants
