| Place of Origin: | Jiangsu Wuxi |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | CE SGS |
| Model Number: | HS-1000 |
| Minimum Order Quantity: | 1set |
| Price: | USD3500-10000 |
| Packaging Details: | Wooden box, steel bracket |
| Delivery Time: | 3-4weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
| Material: | SUS304 SUS316 | Capacity: | 20-70M3/Hr |
|---|---|---|---|
| MOQ: | 1set | Marketing Type: | New Product 2022 |
| Weight: | 280 KG | Size: | 1430*1130*2000mm |

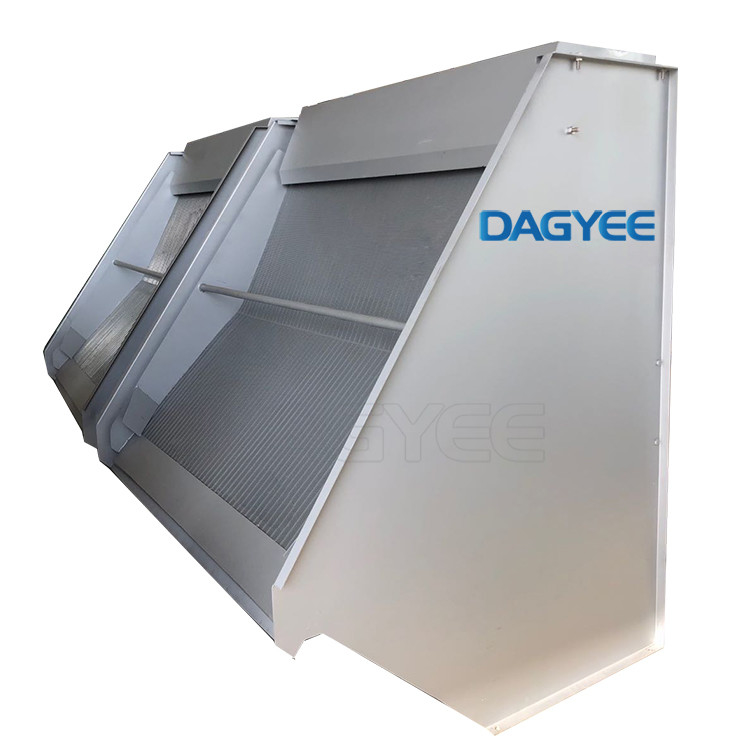

Static Screen Wastewater Description
The static screen has a built-in screen. The screen consists of a horizontal bar with a special profile and is made of Aisi 304 or 316 quality stainless steel.
The water is distributed in the upper part of the filter screen, and its inclination on the horizontal surface gradually decreases from top to bottom. The effect of solid matter separation and dripping is obtained sequentially.
As the main processing equipment in the processing plant, it can enable the remaining plants to obtain better output and reduce operating costs.
These devices have a sieving fineness between 0.25 mm and 3.00 mm and are usually used in wastewater.
They also have correct applications in industrial wastewater.
Static Screen Wastewater Works

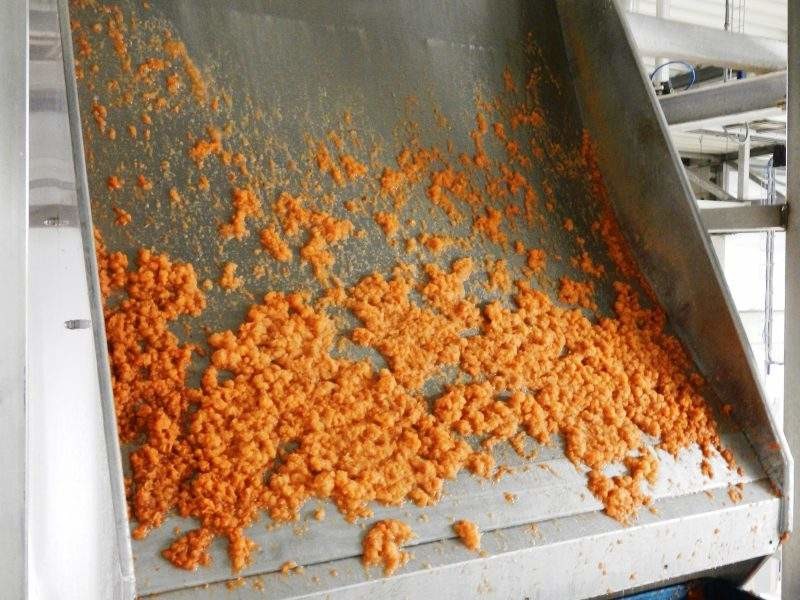

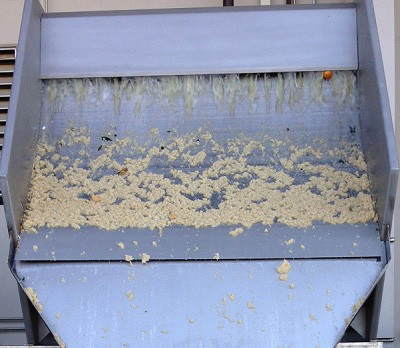

Influent pumped into the inflow chamber through the inlet of the pipe. As the water level rises, it will flow under the wage weir and the pivoting baffle. Liquids and solids flow through the screen, and Liquids falls through the screen, while gravity and more screening push the captured solids toward the discharge point. The wastewater passes through the filter enters distribution chamber and flows through the outlet tube. The drip-proof assembly at the bottom of the filter directs excess water to the waste chamber. When the solids reach the bottom of the screen, they slide into the container, conveyor or other suitable receiving equipment. Dagyee offers a variety of rear screen and dewatering equipment. To assemble the most cost-effective screening system. Welcome to consult.
Static Screen Wastewater Model
Static Screen Wastewater Feature
No energy
High separation efficiency of slag and water, ensuring normal operation of follow-up equipment
Smooth drainage, not easy to block
Simple structure and long service life
Easy to move and clean
Material and screen plate, which can be customized according to requirements
Static Screen Wastewater Application
Industrial wastewater treatment plants;
Textile;
Paper;
Slaughterhouse;
Food and plastic recycling wastewater treatment plants.
