16m3/H Sieve Bend Screen

HS-800 Static Screen Sieve Screen Equipment For Printing Industrial Wastewater Treatment Plant

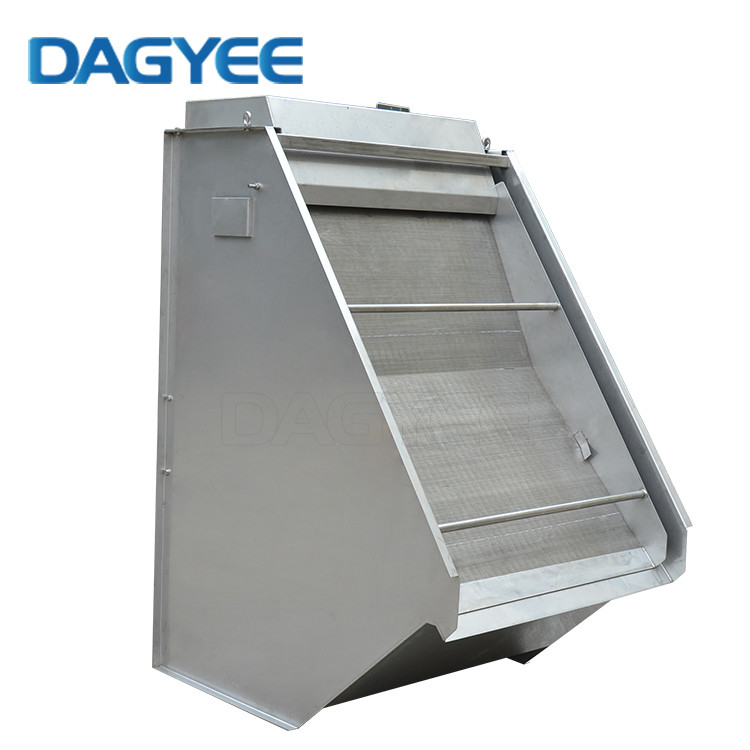

Static Screen Introduction
The main body of the static screen is made up of wedge-type stainless steel or screen face. The sewage will be distributed on the screen face via overflow weir. Because of the smooth screen face with small gap, the static screen can drain out water easily without blocking. Under the effect of hydraulic, the solid matters will be pushed into the hopper (optional parts) for solid-liquid separation.

HS-800 Static Screen Specifications

Static Screen Work Process
The main body of the static screen is a stainless steel curved or flat filter screen made of wedge-shaped steel rods. The wastewater to be treated passes through the weir and is evenly distributed to the inclined screen surface. Since the surface of the screen is small and smooth, the back gap is large, the drainage is smooth, it is difficult to block. The solid matter is trapped, and the filtered water flows out from the gap of the sieve plate. At the same time, under the action of hydraulic force, the solid matter is pushed to the lower end of the sieve plate to discharge, thereby achieving the purpose of solid-liquid separation.



Features Of Static Hydraulic Screen

• Make use of water flow gravity action, no energy consumption;
• Large treating capacity of one unit
• No blocking, easy for maintenance
• The whole unit is made up of stainless steel, high mechanic strength

Main Features

• Simple structure in linear type ,easy in installation and maintation.
• Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
• High pressure double crank to control the die opening and closing.
• Running in a high automatization and intellectualization,no pollution
• Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
