| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | HS-800 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Name: | Static Screen |
|---|---|---|---|
| Marketing Type: | New Product 2020 | Material: | 304 316 |
| Capacity: | 5-100m3/h | Feature: | Suspended Matter |
| 0.5mm-Capacities: | 16 M3/h | Color: | Customerized |
| Highlight: | 100m3/h Static Screen Wastewater,16m3/h Static Screen Wastewater,100m3/h Static Sieve |
||
Dagyee HS-800 Factory Seawater Cooling Freshwater Aquaculture Water Filter Self Cleaning Static Screen
Static Screen Introduction
Static screen water is designed to provide trouble free liquid separation. The open screen design accommodates peak hydraulic flows and the deep influent head box reduces influent turbulence while delivering an even flow over the weir crest. A pivoting flow control baffle plate is provided to enhance even flow distribution and promote faster fluid removal by directing the fluid into the screen.

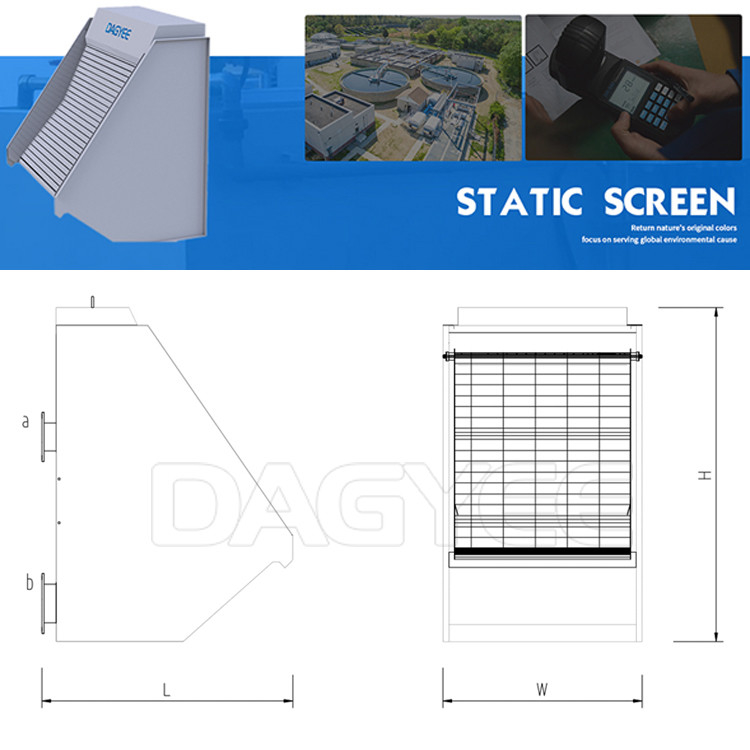

HS-800 Static Screen Specifications
| Model | HS-800 |
| Material | SUS304 SUS316;Stainless Steel |
| Inlet | 100 |
| Effluent | 125 |
| Dimensions(m) | 1.43*0.93*2 |
| Weight(Kg) | 250 |
| 0.5mm-Capacities(m3/h) | 16 |
| 1mm-Capacities(m4/h) | 35 |
| 1.5mm-Capacities(m5/h) | 55 |
Static Screen Work Process
The main body of the static screen is a stainless steel curved or flat filter screen made of wedge-shaped steel rods. The wastewater to be treated passes through the weir and is evenly distributed to the inclined screen surface. Since the surface of the screen is small and smooth, the back gap is large, the drainage is smooth, it is difficult to block. The solid matter is trapped, and the filtered water flows out from the gap of the sieve plate. At the same time, under the action of hydraulic force, the solid matter is pushed to the lower end of the sieve plate to discharge, thereby achieving the purpose of solid-liquid separation.
Main Adabantages
Main Solution Of Static Hydraulic Screen
Used for Dissolved air flotation as a core product, static screen as a pretreatment before Dissolved air flotation . These screens facilitate a consistent flow and reduce the amount of suspended solids going to the DAF unit.
