| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | HS-500 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type: | New Product 2020 |
|---|---|---|---|
| Material: | Steel Bracket | Product Name: | Static Screen |
| Application: | Solid Liquid Separation | Weight: | According To The Unit |
| Color: | Customized | After-sales Service Provided: | Online Support |
| Highlight: | 10m3/h bar screen wastewater treatment,SUS304 wastewater bar screen,10m3/h wastewater bar screen |
||
Dagyee HS-500 Chemcial Municipal High Solid Liquid Separation Bar Screen Poultry Wastewater

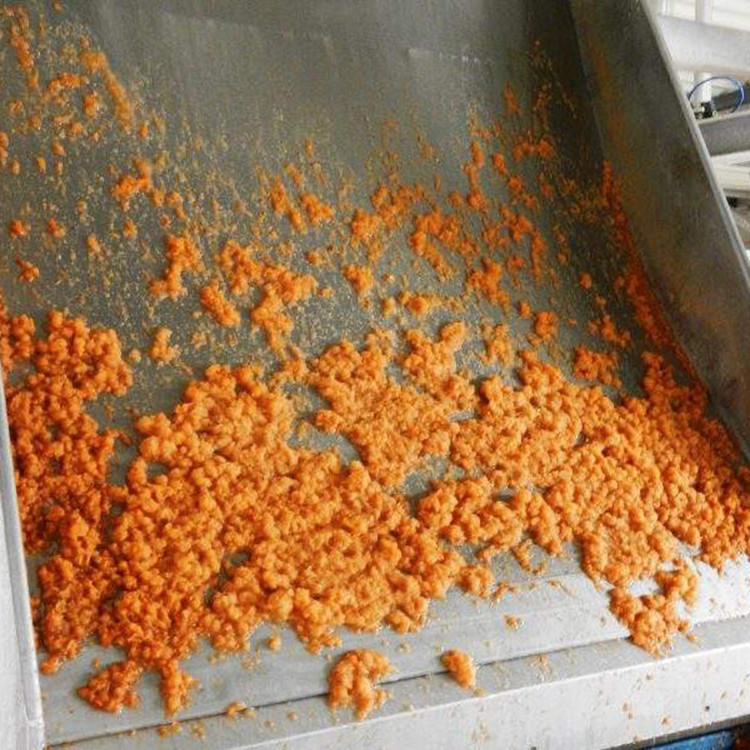

Influent pumped into the inflow chamber through the inlet of the pipe. As the water level rises, it will flow under the wage weir and the pivoting baffle. Liquids and solids flow through the screen, and Liquids falls through the screen, while gravity and more screening push the captured solids toward the discharge point. The wastewater passes through the filter enters distribution chamber and flows through the outlet tube. The drip-proof assembly at the bottom of the filter directs excess water to the waste chamber. When the solids reach the bottom of the screen, they slide into the container, conveyor or other suitable receiving equipment. Dagyee offers a variety of rear screen and dewatering equipment. To assemble the most cost-effective screening system. Welcome to consult.
HS-500 Static Screen Specifications
| Model | HS-500 |
| Material | SUS304 SUS316;Stainless Steel |
| Inlet | 100 |
| Effluent | 100 |
| Dimensions(m) | 1.43*0.63*2 |
| Weight(Kg) | 180 |
| 0.5mm-Capacities(m3/h) | 10 |
| 1mm-Capacities(m4/h) | 22 |
| 1.5mm-Capacities(m5/h) | 35 |
Adavantages Of Static Screen Works
Applications Of Static Hydraulic Screen
Typical application industries: popermaking wastewater, tannery wastewater. sloughter wastewater, urban domestic wostewater. alcohol, starch factory wastewater. pharmaceutical lactory, sugar factory wastewater, beer, malt factory wastewater, livestock and fish farms, fish and meat processing plants . Others such Qs chemical fiber factory, textile factory, chemical factory, plastic processing factory. large-scale machinery factory, hotel, residential sewage. etc. pretreatment.
How Does Static Screen Works
Influent pumped into the inflow chamber through the inlet of the pipe. As the water level rises, it will flow under the wage weir and the pivoting baffle. Liquids and solids flow through the screen, and Liquids falls through the screen, while gravity and more screening push the captured solids toward the discharge point. The wastewater passes through the filter enters distribution chamber and flows through the outlet tube. The drip-proof assembly at the bottom of the filter directs excess water to the waste chamber. When the solids reach the bottom of the screen, they slide into the container, conveyor or other suitable receiving equipment. Dagyee offers a variety of rear screen and dewatering equipment. To assemble the most cost-effective screening system. Welcome to consult.
