| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | HS-300 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type: | New Product 2020 |
|---|---|---|---|
| Material: | Stainless Steel | Product Name: | Static Screen |
| Application: | Wastewater Treatment | Function: | SS Removal BOD Removal |
| After-sales Service Provided: | Online Support | Warranty: | 1 Year |
| Highlight: | 6m3/h Static Screen Wastewater,SS Static Screen Wastewater,6m3/h Sieve Bend Screen |
||
Dagyee HS-300 Sieve Bend Screen Machine For Sewage Treatment In Pulp And Paper Mills Effluent

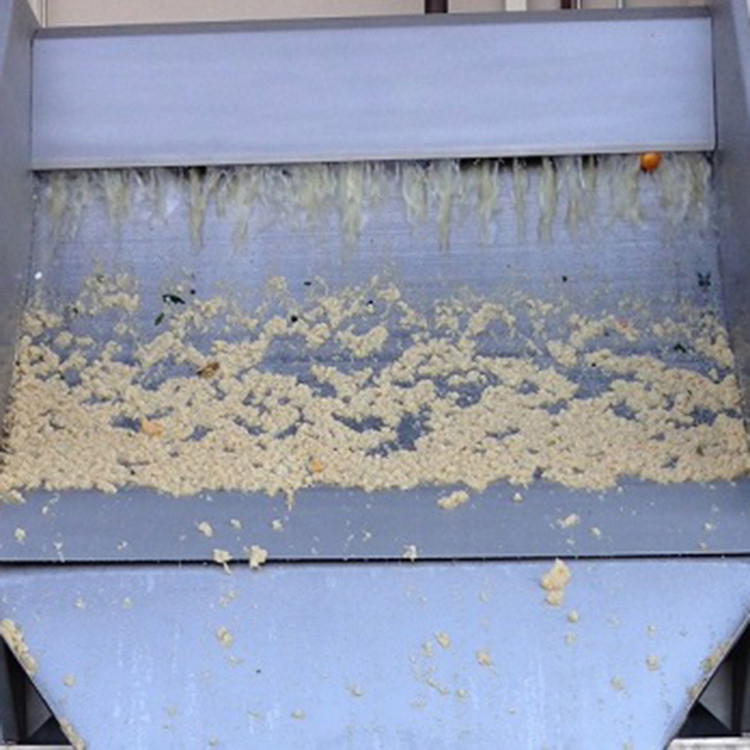

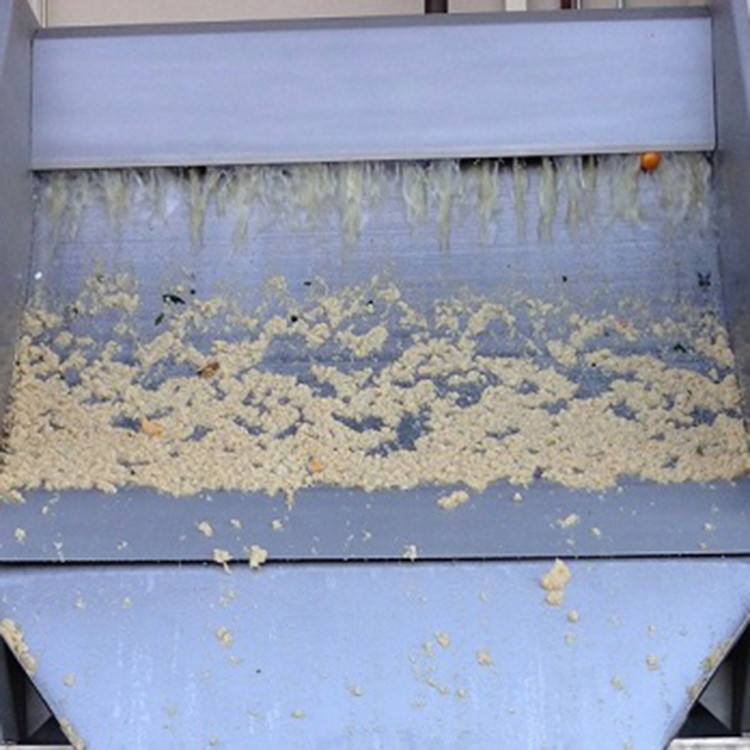

What Is Static Screen
Static screen water is designed to provide trouble free liquid separation. The open screen design accommodates peak hydraulic flows and the deep influent head box reduces influent turbulence while delivering an even flow over the weir crest. A pivoting flow control baffle plate is provided to enhance even flow distribution and promote faster fluid removal by directing the fluid into the screen.
HS-300 Static Screen Specifications
| Model | HS-300 |
| Material | SUS304 SUS316;Stainless Steel |
| Inlet | 80 |
| Effluent | 80 |
| Dimensions(m) | 1.43*0.43*2 |
| Weight(Kg) | 150 |
| 0.5mm-Capacities(m3/h) | 6 |
| 1mm-Capacities(m4/h) | 13 |
| 1.5mm-Capacities(m5/h) | 16 |
Applications Of Sieve Bend Screen
Static Screen have many applications in the pretreatment of waste water for practically any kind of industry. Performance is optimum in those applications where there is no oil, a dryness greater than that obtained even by rotary screens being achieved with this system.
Features Of Sieve Bend Screen
