| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | CE ISO |
| Model Number: | 0.5T-4T |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiation according to model |
| Packaging Details: | Wooden case |
| Delivery Time: | 7-10 works day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 set per month |
| Product Name: | EDI Water Treatment System | Warranty: | 1 Year |
|---|---|---|---|
| Keywords: | EDI Ultrapure Water System | Processing Types: | Pure Water |
| Recovery Efficiency: | 60%~75% | Operation Temperature: | 1~45 Degree |
| Highlight: | 0.5T EDI Water Treatment System,3T EDI Water Treatment System,0.5T electrodeionization module |
||

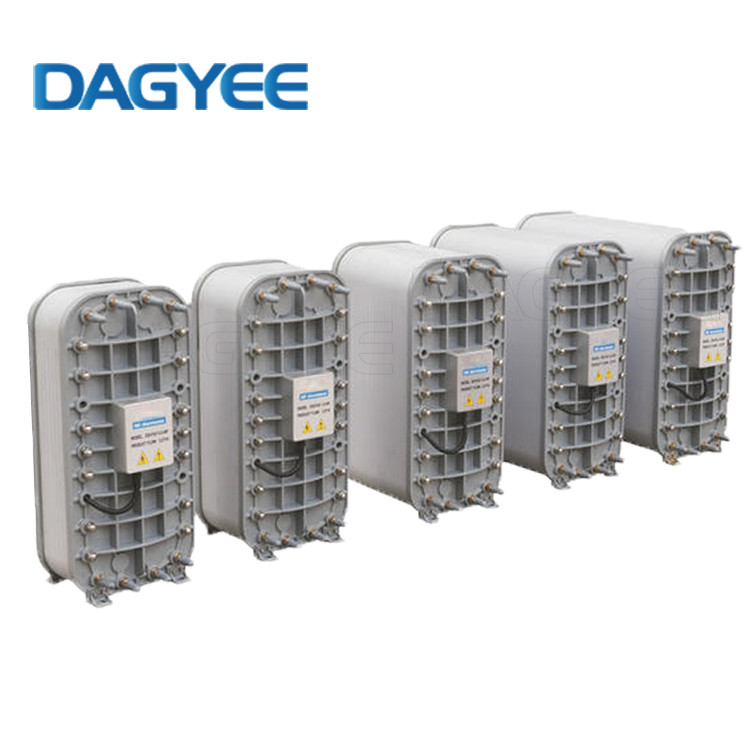

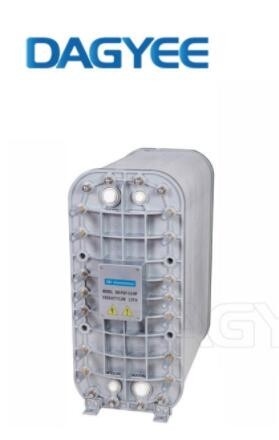

WWTP Electrodeionization Edi Module Pure Water 0.5t 1t 2t 3t 4t Edi Adaptateur Water Treatment
Electrodeionization (EDI) is the process of removing ionized or ionizablesubstances from water using ion exchange membranes,electrically active media (typically ion exchange resin), and a DC electric potential. EDI is used with reverse osmosis, which is an advanced environmental friendly technology on conventional mixed bed ion exchange making the process chemical-free to produce up to 18 megohm-cm high purity deionized water.
1. Resource: RO water, conductivity < 20 u s/cm, better < 10u s/am;
2. PH:6.5-9.0
3. Water temperature:5- -35"C
4. Hardness(as CaCO3): <0.5ppm
5. Organics: < 0.5ppm,TOC recommended to be 0 ppm
6. Oxidizers: < 0.05ppm,Cl.:0.05ppm,O-:0.02ppm,better both to be 0 ppm
7. Metals: < 0.01ppm
8. Silica: < 0.5ppm
9. Carbon dioxide: < 5ppm
10. Oil: not detectable
| ltem | L*W*H (mm) | L1(mm) | W1(mm) | a | Hole1 | 2 | 3 | 4 | 5 |
| EDI-0.5-HP | 155*310*680 | 200 | 197 | 35 | DN25 | DN25 | DN15 | DN15 | M8 |
| EDI-1.0-HP | 218*310*680 | 258 | 197 | 35 | DN25 | DN25 | DN15 | DN15 | M8 |
| EDI-2.0-HP | 375*310*680 | 415 | 197 | 35 | DN25 | DN25 | DN15 | DN15 | M8 |
| EDI-3.0-HP | 530*310*680 | 560 | 197 | 35 | DN25 | DN25 | DN15 | DN15 | M8 |
| EDI-4.0-HP | 675*310*680 | 715 | 197 | 35 | DN25 | DN25 | DN15 | DN15 | M8 |
