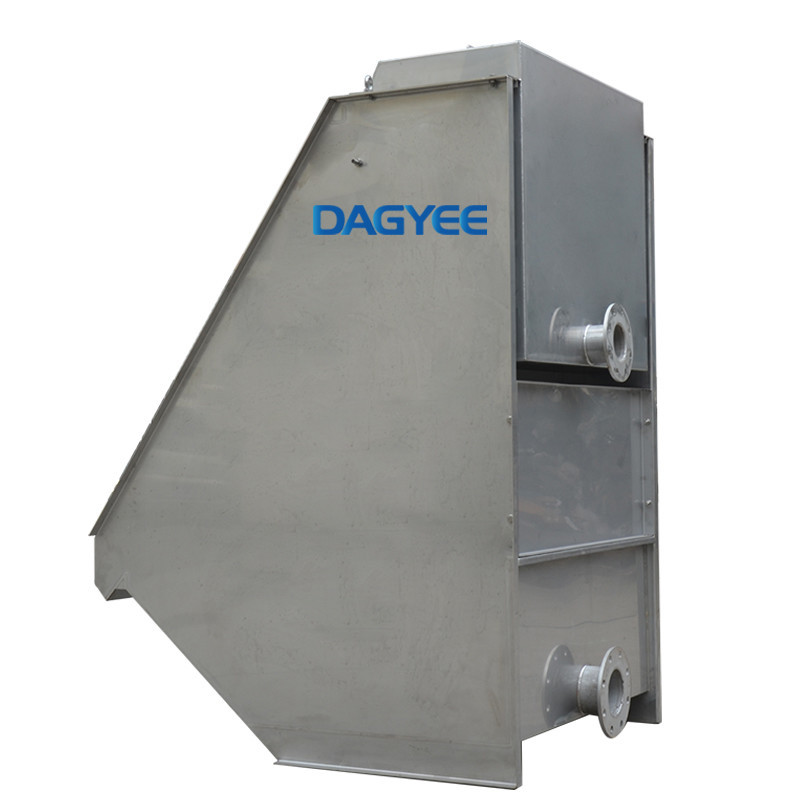

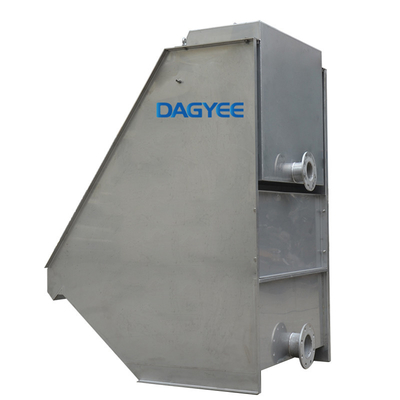

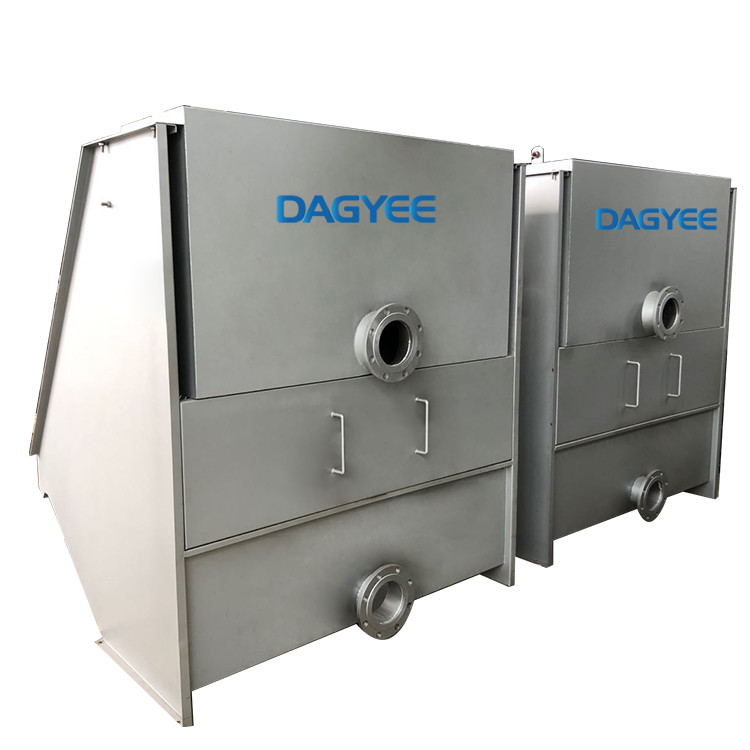

SS304 316 Hand Cleaned Static Screen Domestic Wastewater Pretreatment

Static Screen Wastewater Description

DAGYEE provides reliable performance in liquid/solid separations for municipal and industrial applications, especially when sieving fibrous and non-oily solids. There are no moving parts, motors or complicated connections. Liquid/solid separation screens are economical and simple to operate.

Static Screen Wastewater Works

Influent pumped into the inflow chamber through the inlet of the pipe. As the water level rises, it will flow under the wage weir and the pivoting baffle. Liquids and solids flow through the screen, and Liquids falls through the screen, while gravity and more screening push the captured solids toward the discharge point. The wastewater passes through the filter enters distribution chamber and flows through the outlet tube. The drip-proof assembly at the bottom of the filter directs excess water to the waste chamber. When the solids reach the bottom of the screen, they slide into the container, conveyor or other suitable receiving equipment. Dagyee offers a variety of rear screen and dewatering equipment. To assemble the most cost-effective screening system. Welcome to consult.

Static Screen Wastewater Model

Static Screen Wastewater Feature

No moving parts, no motor
Very low installation costs, no maintenance
Only requires periodic cleaning
Quiet operation
Wave shape of the bars provides the HydraSieve screen with its self-cleaning effect

Static Screen Wastewater Application

Domestic sewage
Wash water from sand filters
Sewer cleaning tasks
Screening industrial intake water
Screening fire sprinkler water
Storm water screening
Pig manure
Textiles and laundries

Fruit and vegetable canning
Wine producers and distilleries
Meat and processed meals industry
Slaughterhouse
Fish processing
Breweries and dairies
