| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | HS-700 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Marketing Type: | New Product 2020 |
|---|---|---|---|
| Material: | 304 316 | Product Name: | Static Screen |
| Type: | Gravity Screen | Weight: | 200 Kg |
| Keywords: | Solid Liquid Separator | MOQ: | 1 Pcs |
| Highlight: | SGS fine screen wastewater treatment,15m3/h fine screen wastewater treatment,SGS fine bar screen |
||

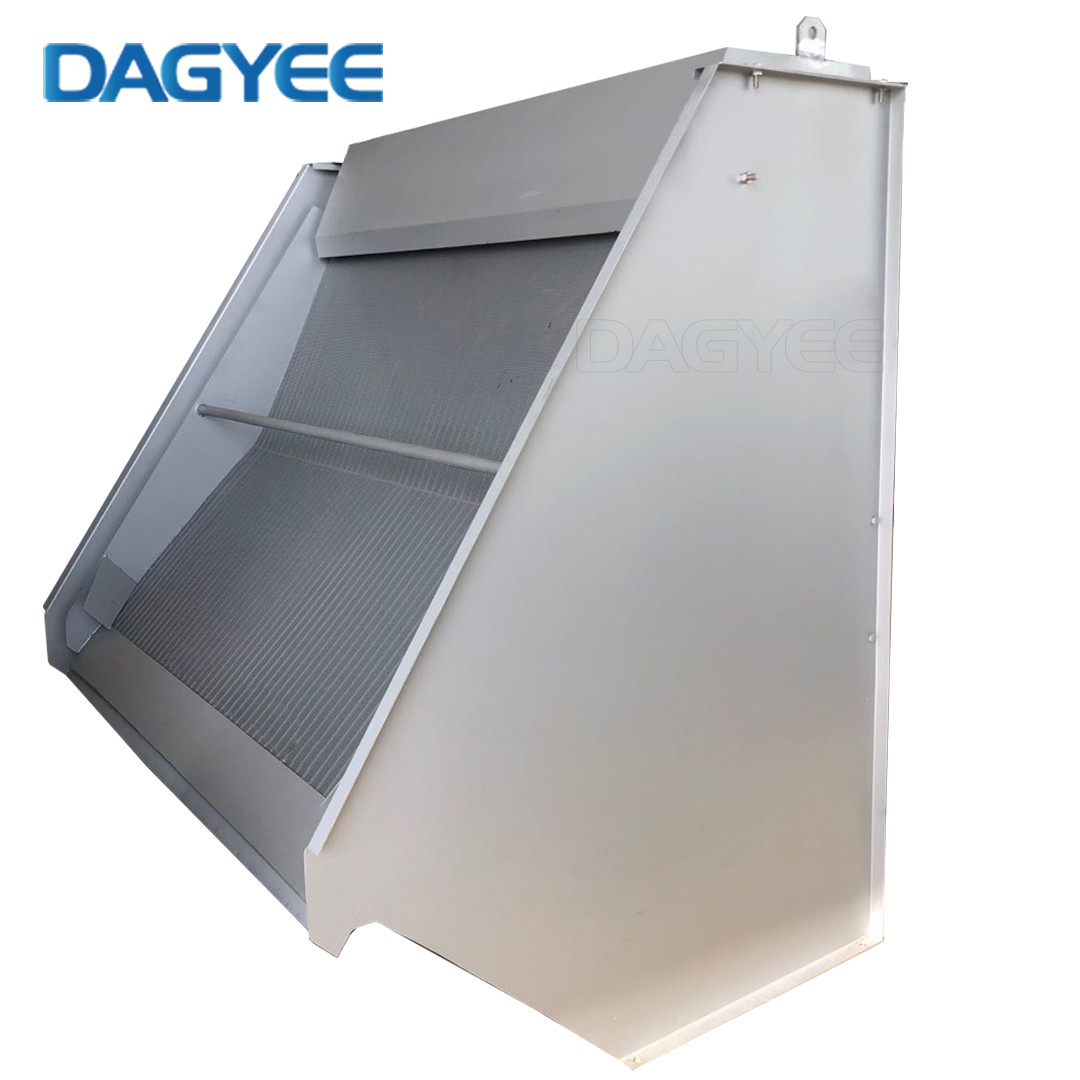

HS-700 SGS Wastewater Solutions Primarytreatment Stage Fine Screen Equipments
What Is Static Screen
Static screen water is designed to provide trouble free liquid separation. The open screen design accommodates peak hydraulic flows and the deep influent head box reduces influent turbulence while delivering an even flow over the weir crest. A pivoting flow control baffle plate is provided to enhance even flow distribution and promote faster fluid removal by directing the fluid into the screen.
HS-700 Static Screen Specifications
| Model | HS-700 |
| Material | SUS304 SUS316;Stainless Steel |
| Inlet | 100 |
| Effluent | 100 |
| Dimensions(m) | 1.43*0.83*2 |
| Weight(Kg) | 200 |
| 0.5mm-Capacities(m3/h) | 15 |
| 1mm-Capacities(m4/h) | 30 |
| 1.5mm-Capacities(m5/h) | 50 |
Static Screen Advantages
Applications Of Static Hydraulic Screen
How Does Static Screen Works
Influent pumped into the inflow chamber through the inlet of the pipe. As the water level rises, it will flow under the wage weir and the pivoting baffle. Liquids and solids flow through the screen, and Liquids falls through the screen, while gravity and more screening push the captured solids toward the discharge point. The wastewater passes through the filter enters distribution chamber and flows through the outlet tube. The drip-proof assembly at the bottom of the filter directs excess water to the waste chamber. When the solids reach the bottom of the screen, they slide into the container, conveyor or other suitable receiving equipment. Dagyee offers a variety of rear screen and dewatering equipment. To assemble the most cost-effective screening system. Welcome to consult.
