| Place of Origin: | Jiangsu.China |
|---|---|
| Brand Name: | Dagyee |
| Certification: | CE |
| Model Number: | HS-1000 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiable |
| Packaging Details: | Wooden box, standard container, Customers can specify requirements |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50SET |
| Condition: | New | Name: | Static Screen |
|---|---|---|---|
| Marketing Type: | New Product 2020 | Material: | SS304 Or SS316L |
| Dimensions: | 1.43 M*1.13 M*2 M | Weight: | 280 Kg |
| 0.5mm-Capacities: | 20 M3/h | Power: | According To The Unit |
| Highlight: | 20m3/h Static Screen Wastewater,SS316L Static Screen Wastewater,Static Sieve Screen |
||

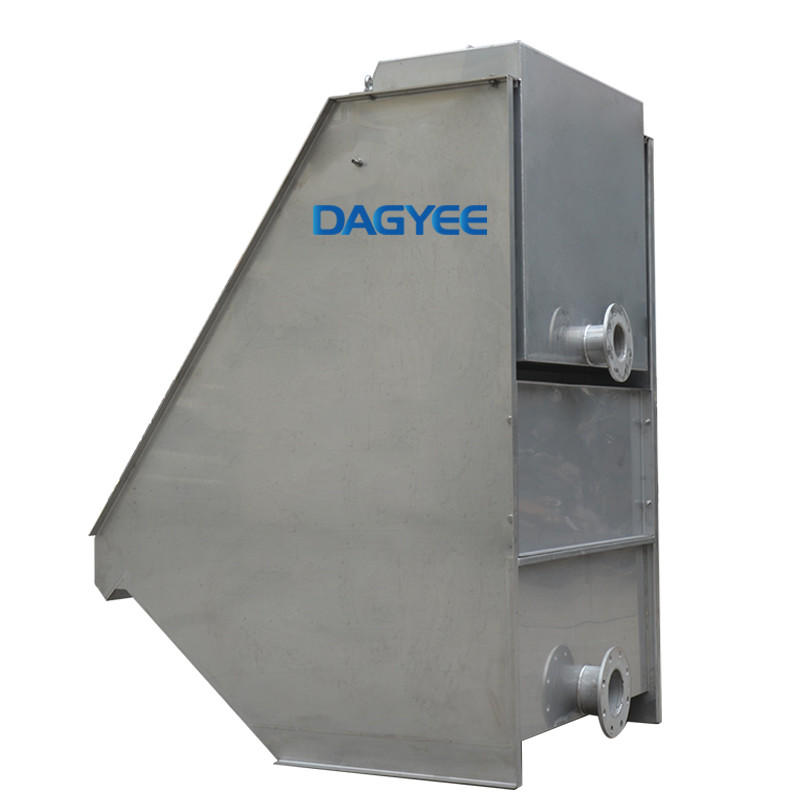

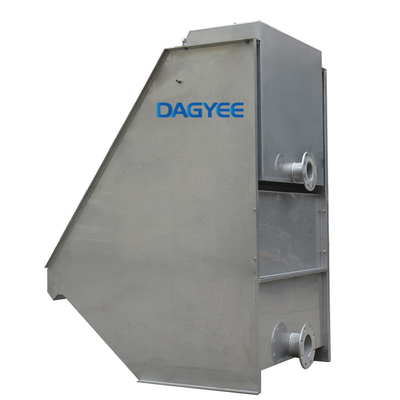

HS-1000 Industrial And Municipal Pharmaceutical Wastewater Static Screen Ion-Exchange Pretreatment
Static Screen Introduction
Static screen water is designed to provide trouble free liquid separation. The open screen design accommodates peak hydraulic flows and the deep influent head box reduces influent turbulence while delivering an even flow over the weir crest. A pivoting flow control baffle plate is provided to enhance even flow distribution and promote faster fluid removal by directing the fluid into the screen.
HS-1000 Static Screen Specifications
| Model | HS-1000 |
| Material | SUS304 SUS316;Stainless Steel |
| Inlet | 150 |
| Effluent | 150 |
| Dimensions(m) | 1.43*1.13*2 |
| Weight(Kg) | 280 |
| 0.5mm-Capacities(m3/h) | 20 |
| 1mm-Capacities(m4/h) | 45 |
| 1.5mm-Capacities(m5/h) | 70 |
Static Screen Work Process
The main body of the static screen is a stainless steel curved or flat filter screen made of wedge-shaped steel rods. The wastewater to be treated passes through the weir and is evenly distributed to the inclined screen surface. Since the surface of the screen is small and smooth, the back gap is large, the drainage is smooth, it is difficult to block. The solid matter is trapped, and the filtered water flows out from the gap of the sieve plate. At the same time, under the action of hydraulic force, the solid matter is pushed to the lower end of the sieve plate to discharge, thereby achieving the purpose of solid-liquid separation.
Static Screen Operation
Features Of Static Hydraulic Screen
Company Information
Dagyee is a manufacturer of wastewater treatment device Dissolved air flotation lamella clarifier Chemical Dosing device screw flight with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in Municipal Water Treatment and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
