Center Drive Sludge Scraper System

CE ISO Certification Center Drive Thickener Sludge Scraper System Sewage Treatment Plant

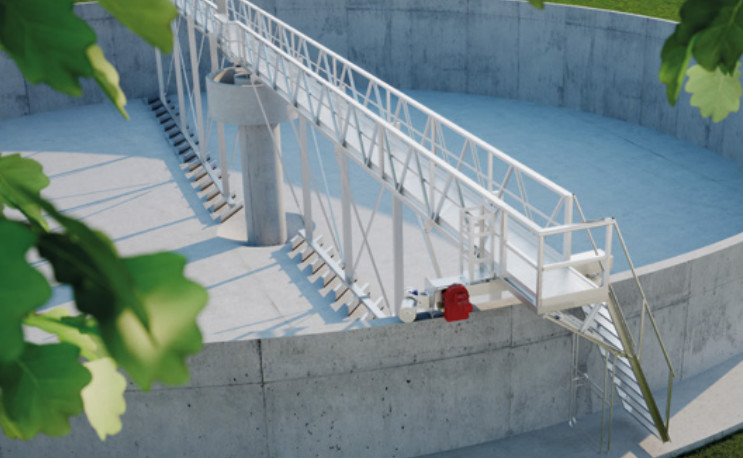

When the central drive suspension scraper is in operation, the drive device installed on the working bridge drives the suspension shaft to rotate. When the drive shaft rotates, the suspension scraper arms on both sides rotate around the center axis of the pool. The scrapers installed on the scraper arms on both sides The mud plate scrapes the sludge deposited on the bottom of the pool to the mud collecting pit in the center of the pool while rotating with the scraper arm. At the same time, the scum on the liquid surface is concentrated in the tapered area formed by the slag scraper and the surrounding slag baffle, and is scraped by the scum to the slag collecting bucket and discharged out of the tank.

Sludge Scraper System

Sludge Scraper System Advantages:

•  Can develop high torque in compact units.
•  Torque tube is generally more economical than a torque cage in smaller units.
•  Can be installed in concrete or steel tank configurations. Generally most economical in tanks less than 50 inch in   diameter.
•  Generally the most economical way to provide lifting of rake arms under severe torque loads.
•  Lifting device option allows for heavy sludge loading.

Sludge Scraper System Features

Main Structures

The scraper is composed of a work bridge, driving device, center support, center transmission frame, scraper arm and plate, skimming device, steady flow device and other parts.

• Slag bucket
• Slag removal device
• Scraper arm and plate
• Steady flow device
• Center rotating frame
• Drive device
• Work bridge
• Slag baffle
• Weir plate

Sludge Scraper System Benefits

• Optimum flocculation
• Long service life
• Higher settling rate
• Prevents mechanism damage
• High solids transport efficiency

Sludge Scraper System Applications

• Grind
• Thickening
• Concentrate
• Tailings
• Leach thickening
• CCD Circuits
• Acid mine drainage
