| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | CE |
| Model Number: | DXG-10M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate |
| Packaging Details: | Wooden box, standard container |
| Delivery Time: | 20-30weeks |
| Payment Terms: | L/C, D/A, T/T, D/A, Western Union, MoneyGram |
| Supply Ability: | 20 sets |
| Clarifier Diameter: | 10M | Recommended Clarifier Depth: | 4-4.8M |
|---|---|---|---|
| Peripheral Speed: | 1-3m/min | Drive Power: | 0.55 |
| Highlight: | Full Bridge Sludge Scraper System,10m Sludge Scraper System,Full Bridge water clarifier tank |
||

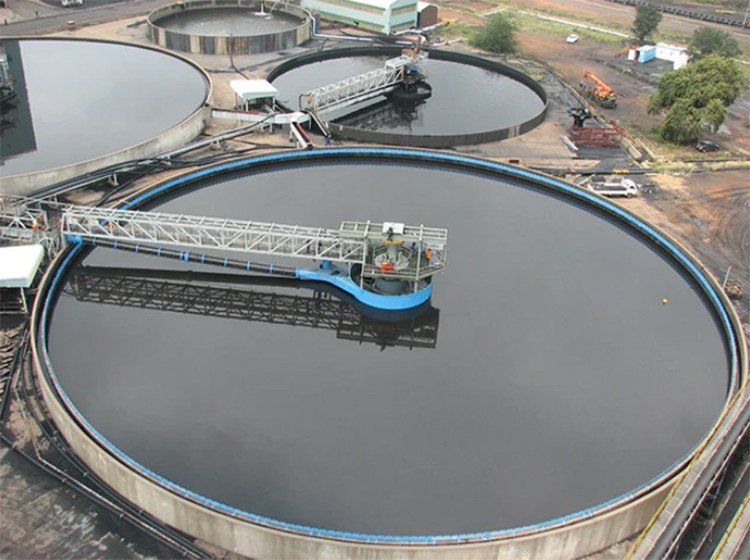

DXG series center drive mud scraper is central driving, widely used for scraping and discharging sludge in round primary sedimentation tank, secondary sedimentation tank and concentrated tank, working diameter ranges from 8m to 20m. Center drive mud scraper is specially designed for these applications. We have been over 10years in manufacturing and designing of center drive mud scraper.
Sludge Scraper System
| Model | DXG-10 |
| Pool diameter m | 10 |
| Water depth m | 3.6-4.4 |
| Pool depth m | 4-4.8 |
| Peripheral linear speed m/min | 1-2 |
| Drive power kw | 0.55 |
| Motor brand | SEW /NORD /GUOMAO |
| Material | Carbon steel bridge frame&transmission mechanism |
| Wetted material | SUS304/SUS316L |
Sludge Scraper System Advantages
Sludge Scraper System Features
Main Structures
The scraper is composed of a work bridge, driving device, center support, center transmission frame, scraper arm and plate, skimming device, steady flow device and other parts.
Sludge Scraper System Applications
