| Place of Origin: | China |
|---|---|
| Brand Name: | DAGYEE |
| Certification: | CE |
| Model Number: | DXG-10M |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiate |
| Packaging Details: | Wooden box, standard container |
| Delivery Time: | 20-30weeks |
| Payment Terms: | L/C, D/A, T/T, D/A, Western Union, MoneyGram |
| Supply Ability: | 20 sets |
| Clarifier Diameter: | 14M | Recommended Clarifier Depth: | 4-4.8M |
|---|---|---|---|
| Peripheral Speed: | 1-3m/min | Drive Power: | 0.55 |
| Highlight: | 14m Sludge Scraper System,3m/min Sludge Scraper System,14m sedimentation tank water treatment |
||
These machines are manufactured to a basic design and are mainly made of stainless steel. Our full-bridge and semi-bridge rotating sludge scrapers are of latticework type. There are a variety of configurations,with or without supplementary functions. The scrapers can be peripheral driven full-bridge scrapers, semi-bridge scrapers or central driven.

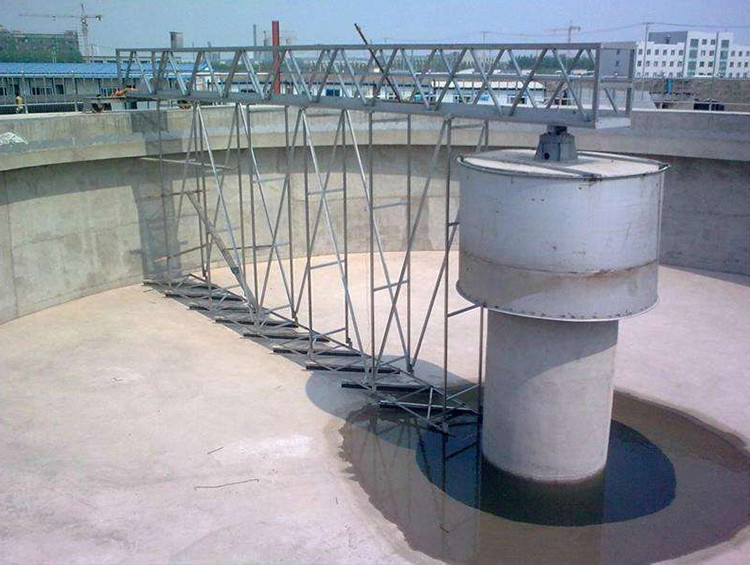

Sludge Scraper System
| Model | DXG-14 |
| Pool diameter m | 14 |
| Water depth m | 3.6-4.4 |
| Pool depth m | 4-4.8 |
| Peripheral linear speed m/min | 1-2 |
| Drive power kw | 0.55 |
| Motor brand | SEW /NORD /GUOMAO |
| Material | Carbon steel bridge frame&transmission mechanism |
| Wetted material | SUS304/SUS316L |
Sludge Scraper System Advantages
Sludge Scraper System Applications
Sludge Scraper System Main Use
